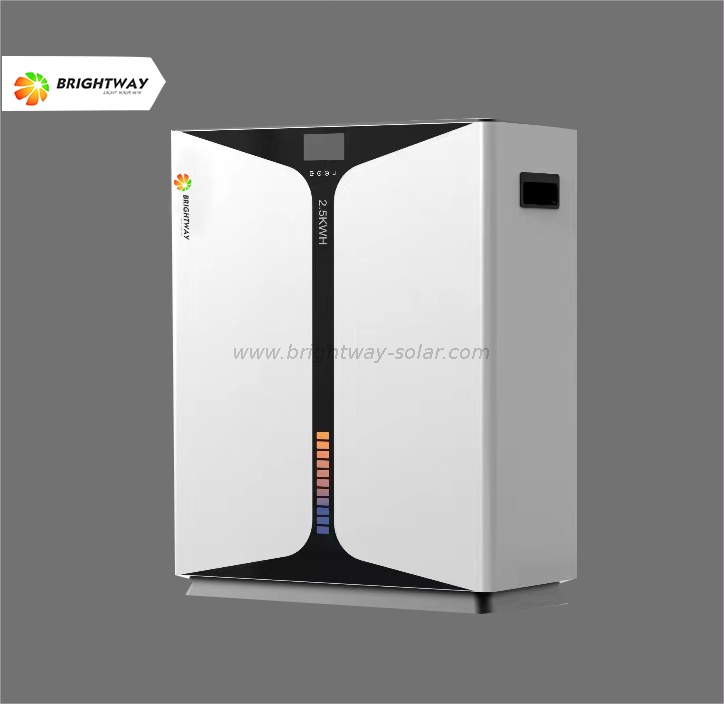

BW-2000A
Brightway
The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital intelligent design with advanced SPWM technology, outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LCD screen display design, real-time display of system operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.
Technical Specifications
| Model | BW-2000A | |
| Inverter Parameters | ||
| Inverter Output | Rated power | 2kW |
| AC rated voltage | 230VAC | |
| Rated frequency | 50Hz | |
| AC voltage | 230VAC±5% | |
| Max. power output | 2kW | |
| Max. Efficiency | 92% | |
| Switchover time | 10ms | |
| Wave | Pure sine wave | |
| Inverter Input | Battery overvoltage | 31.0V |
| Battery undervoltage warning | 23.8V | |
| Battery undervoltage | 22.8V | |
| Constant charge voltage | 28.8V | |
| Float charge voltage | 28.0V | |
| Grid Input | Rated voltage | 220V |
| Voltage range | 90~280VAC | |
| Rated frequency | 50Hz | |
| Frequency range | 40~70Hz | |
| Rated current | 10.9A | |
| Max. AC current | 17A | |
| PV Input | Max. voltage | 85VDC |
| Inverter Charge | Inverter Max. charge current | 100A |
| Grid Max. battery charge current | 50A | |
| PV Max. charge current | 50A | |
| Battery Parameters | ||
| Ratedcapacity | 2.56kWh | |
| Nominalvoltage | 25.6V | |
| Dischargevoltagerange | 21.6~28.8V | |
| Charge current | 0.5℃@25℃ | |
| Max. charge current | 1℃@25℃ | |
| Max.discharge current | 1℃@25℃ | |
| Max.poweroutput | 2560Wh | |
| Depth of discharge DOD | 0.9 | |
| Communicationinterface | RS232 | |
| Cycles | 5000 cycles80%DOD.@25℃ | |
| Operatingtemperaturerange | Charge：0℃~50℃ Discharge：-10℃~60℃ | |
| Storage temperature | -20℃~+60℃ | |
