Operating an off-grid solar system demands absolute certainty about your available power reserves. Ever wonder how much energy you actually have left before the lights go out? Traditional lead-acid batteries show a predictable, linear voltage drop as they discharge. Modern lithium iron phosphate batteries operate entirely differently. Their advanced chemistry provides remarkably consistent power. However, this extreme stability makes manual capacity estimation quite challenging.
This is precisely where a detailed LiFePO4 battery voltage chart becomes an indispensable tool. It serves as your primary translation matrix. You use it to monitor the State of Charge and protect your substantial hardware investment.
Looking at the broader energy sector, recent industry analyses reveal a massive pivot in the residential energy storage market. Installers and engineers are moving rapidly away from older Nickel Manganese Cobalt chemistries. Why? Lithium Iron Phosphate offers unparalleled thermal stability. Global supply chains have stabilized over recent years, driving down the cost per kilowatt-hour significantly. Furthermore, increasingly strict indoor fire safety regulations have made this chemistry the undisputed choice. Understanding these specific electrical metrics is no longer just a task for specialized engineers. It is an everyday survival skill for modern off-grid homeowners.
Flat Discharge Curve: These batteries maintain a highly steady voltage for approximately 90 percent of their discharge cycle. The voltage drop is minimal. Utilizing a precise voltage chart is absolutely essential for accurate capacity monitoring.
System Variations: Voltage readings differ significantly based on your system architecture. You must use the correct parameters depending on whether you operate a 12V, 24V, or a heavy-duty 48V setup.
Resting vs. Active Voltage: Accurate State of Charge readings cannot be taken while the battery is under a heavy load. The battery must be in a resting state for at least 30 minutes to yield reliable chart comparisons.
Equipment Synergy: Setting precise voltage parameters on your solar charge controllers and inverters is critical. Proper configuration prevents overcharging, mitigates deep discharges, and maximizes operational lifespan.
State of Charge is a core metric representing the remaining available capacity in your battery. It is expressed as a percentage from zero to one hundred. In an off-grid solar setup, accurately tracking this metric is a fundamental requirement for daily energy management. Imagine needing to run a heavy well pump at dusk. If you guess your battery capacity without empirical data, you risk triggering a sudden system shutdown right when you need water the most.
A voltage chart maps specific multimeter readings to corresponding capacity percentages. It provides a standardized reference point. By cross-referencing your system current resting voltage with the chart, you completely eliminate the guesswork. This allows you to intelligently manage heavy loads only when you have sufficient stored energy.
Lithium Iron Phosphate chemistry possesses a unique discharge characteristic known as a flat discharge curve. Traditional lead-acid batteries exhibit a steep voltage drop. As you consume power, the voltage decreases steadily. This makes it relatively easy to estimate the remaining capacity just by glancing at a basic voltmeter.
Conversely, when a lithium cell discharges, its voltage drops slightly at the very beginning. It then remains remarkably flat for the vast majority of its cycle. The voltage stays relatively stable between 99 percent and 10 percent capacity. For instance, a 12V battery might read 13.3V at 90 percent capacity and 13.1V at 20 percent capacity. This variance is incredibly narrow. Just a few tenths of a volt represent a massive capacity drop. Consequently, standard monitoring intuition fails. A specialized chart is necessary to interpret these micro-fluctuations accurately.
To accurately monitor your off-grid power system, you must reference the correct chart for your specific battery bank configuration. Below are the standard resting voltage parameters for the three most common off-grid architectures.
A 12V system is typically constructed using four 3.2V cells wired in series. These setups are highly popular for smaller off-grid applications. Common uses include recreational vehicles, camper vans, marine vessels, and remote hunting cabins. They are cost-effective and compatible with a vast array of standard DC appliances.
State of Charge | 12V System Resting Voltage |
|---|---|
100% | 13.6V |
90% | 13.4V |
80% | 13.3V |
70% | 13.2V |
60% | 13.1V |
50% | 13.1V |
40% | 13.0V |
30% | 12.9V |
20% | 12.8V |
10% | 12.0V |
0% | 10.0V |
Stepping up to a 24V architecture provides distinct advantages for medium-sized applications. By doubling the voltage, you effectively halve the electrical current required to deliver the same wattage. This reduction in current minimizes thermal stress on components. It also reduces voltage drop over long cable runs and allows for the use of thinner wiring.
State of Charge | 24V System Resting Voltage |
|---|---|
100% | 27.2V |
90% | 26.8V |
80% | 26.6V |
70% | 26.4V |
60% | 26.2V |
50% | 26.2V |
40% | 26.0V |
30% | 25.8V |
20% | 25.6V |
10% | 24.0V |
0% | 20.0V |

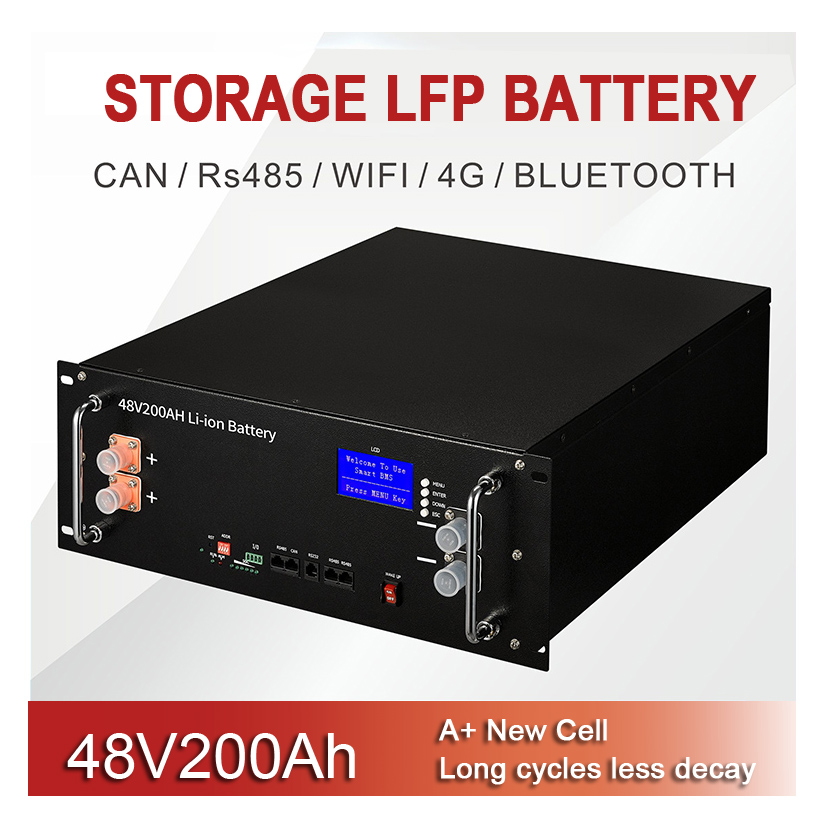

For whole-home solar systems, a 48V lithium battery is the preferred industry standard. A 48V configuration utilizes sixteen cells in series. In reality, these heavy-duty packs operate at a nominal 51.2V. High-capacity inverters operate with maximum efficiency at this voltage. They easily manage massive electrical loads like HVAC systems and deep well pumps without straining the system.
State of Charge | 48V System Resting Voltage |
|---|---|
100% | 54.4V |
90% | 53.6V |
80% | 53.2V |
70% | 52.8V |
60% | 52.4V |
50% | 52.4V |
40% | 52.0V |
30% | 51.6V |
20% | 51.2V |
10% | 48.0V |
0% | 40.0V |
Properly replenishing your system requires configuring your solar charge controller to navigate three distinct charging stages. These are Bulk, Absorption, and Float. When the sun peaks at noon, your charge controller enters the Bulk stage. It delivers maximum current to the battery until it reaches a specific voltage target. For a standard 12V system, this target is typically between 14.2V and 14.6V.
Once that upper threshold is hit, the Absorption stage begins. The controller holds the voltage constant while the current gradually tapers off. This crucial phase allows the internal cells to balance and reach a true full charge. Finally, the Float stage maintains the battery at a lower resting voltage. This is usually around 13.5V to 13.6V. It keeps the cells topped up without causing overcharge damage. Exceeding these parameters risks triggering the internal high-voltage disconnect or permanently damaging the cellular chemistry.
While lithium iron phosphate is incredibly resilient, discharging the cells completely to zero on a regular basis will accelerate internal degradation. To prevent catastrophic over-discharge, quality batteries are equipped with a Battery Management System. This internal computer monitors cell voltages. It will automatically sever the connection if the voltage drops below a critical safety threshold.
However, you should never rely on this emergency cut-off as a daily operational limit. To maximize cycle life, off-grid engineers strongly recommend treating 10 to 20 percent capacity as your absolute minimum functional floor. By adhering to this safe discharge limit, you ensure the battery experiences far less internal stress. This preserves its longevity for decades of daily use.
One of the most frequent mistakes in off-grid energy management is attempting to read battery capacity while the system is actively discharging. When you power on a high-draw appliance, the sudden electrical load creates internal resistance within the battery. This causes a temporary phenomenon known as voltage sag.
During a voltage sag, a battery that is actually at 80 percent capacity might temporarily display a voltage equivalent to 40 percent capacity. If you consult your chart at this exact moment, you will receive a falsely depleted reading. To obtain an accurate measurement, you must disconnect all loads and charging sources. Allow the battery to sit idle in a resting state for 30 to 60 minutes. Only then will the internal chemistry stabilize to reflect the true capacity.
A standard digital multimeter is a reliable diagnostic tool for checking resting voltage. However, it is not the most practical method for daily off-grid living. Because the voltage curve is so flat, relying strictly on manual readings requires you to power down your entire home just to check the fuel gauge.
For modern setups, installing a smart battery monitor equipped with a shunt is highly recommended. A smart shunt physically measures the exact amount of current flowing into and out of the battery in real-time. Instead of relying solely on voltage fluctuations, the shunt calculates capacity based on actual energy consumption. It provides a highly precise percentage directly to your display panel.
The primary reason this chemistry has overtaken lead-acid as the dominant force in off-grid solar is its extraordinary cycle life. A standard lead-acid battery typically lasts for 300 to 500 cycles. Discharging it below 50 percent capacity causes irreversible sulfation and damage.
In stark contrast, a premium solar energy storage battery utilizing this advanced chemistry can comfortably endure over 6,000 cycles. This holds true even when regularly subjected to an 80 percent depth of discharge. An off-grid home can cycle its battery bank every single day for well over a decade before seeing any significant degradation. The long-term cost per cycle makes it the most economically viable energy storage solution available today.
Beyond performance metrics, safety remains a paramount concern when installing a large energy storage bank inside a home. Older lithium-ion chemistries are notorious for thermal runaway. This dangerous chain reaction can lead to fires if the battery is punctured or overcharged.
Lithium Iron Phosphate chemistry is inherently stable and non-combustible. The strong covalent bonds between the iron, phosphorus, and oxygen atoms ensure structural integrity. The battery remains safe even under extreme temperatures or short-circuit conditions. It does not off-gas toxic fumes during the charging cycle. Therefore, it can be safely installed indoors without complex ventilation systems.
Your battery bank does not operate in isolation. It must communicate effectively with the rest of your solar hardware. One of the most critical integration steps is configuring your solar inverter. The inverter is responsible for converting the stored DC power into usable AC power for your household appliances.
You must input the data derived from your voltage chart directly into the inverter settings. Specifically, establishing the Low Voltage Disconnect and Overvoltage Protection parameters is non-negotiable. Setting the disconnect correctly ensures the inverter will automatically shut down before the battery is drained to a damaging level. This guarantees that your equipment protects your battery investment.
A reliable off-grid setup requires all components to be seamlessly matched. The nominal voltage of your battery bank directly dictates the selection and wiring of your solar panels and charge controllers. Building a cohesive system means calculating your total daily energy consumption. You must ensure your charging infrastructure can adequately replenish the battery bank within your location peak sun hours.
For instance, if you upgrade to a 48V architecture, your charge controller must be rated to handle a 48V nominal output. Your solar panel arrays must be wired in series to generate a high enough voltage for efficient charging. Careful planning ensures the charging output perfectly matches the capacity requirements.
Off-grid users are occasionally alarmed when their battery voltage remains steady for days, only to suddenly plummet within a matter of minutes. This phenomenon is a natural, expected characteristic of the discharge curve.
As discussed earlier, the voltage remains flat between 99 percent and 10 percent capacity. However, once the battery hits the 10 percent mark, it reaches the knee of the curve. At this exact point, the voltage drops precipitously. If you observe a rapid voltage drop from 12.8V down to 11.5V in a 12V system, your battery is not malfunctioning. It simply indicates that the available capacity has been fully depleted, and immediate recharging is required.
Inside every battery casing are multiple individual cells wired together. Over time, due to minute manufacturing variances and ambient temperature differences, these cells can become slightly out of balance. For example, one internal cell might sit at 3.4V while another lags at 3.2V.
If an individual cell voltage drops too low or spikes too high during a cycle, the Battery Management System will intervene. It will enter a protection mode and temporarily shut the battery down to prevent localized cell damage. This happens even if the total overall voltage appears completely normal on your chart. Resolving this usually requires fully charging the battery. This allows the internal computer to perform top balancing, bleeding off excess voltage from the highest cells until all internal cells are perfectly equalized.
Mastering the nuances of a voltage chart is vital for maintaining the health, efficiency, and longevity of your off-grid system. By understanding the mechanics of the flat discharge curve, accounting for voltage sag, and respecting safe discharge limits, you empower yourself to monitor your power reserves with absolute precision.
Investing in high-quality lithium storage and configuring your hardware parameters correctly will provide decades of reliable, uninterrupted power. Accurate energy monitoring is the absolute cornerstone of sustainable living.
Take the time to evaluate and upgrade your off-grid setup today. When you are ready to build a truly cohesive system, selecting premium storage batteries, reliable hybrid inverters, and smart monitoring tools from Brightway Solar guarantees long-term energy independence. Their engineered solutions ensure your charging infrastructure and storage capacity are perfectly matched for your unique off-grid demands.
A fully charged 12V battery will typically have a resting voltage of 13.5V to 13.6V. This reading must be taken after the battery has rested without active charging or discharging for at least thirty minutes. This ensures the internal chemistry has stabilized.
No. Lead-acid and lithium iron phosphate have completely different internal chemistries and discharge curves. Using a lead-acid chart will result in wildly inaccurate readings, potentially leaving you without power unexpectedly.
While a 48V battery technically reaches zero capacity around 40.0V, most internal management systems will trigger a low-voltage disconnect much earlier. This usually occurs around 42.0V to 43.2V to protect the sensitive internal cells from irreversible damage.
This common occurrence is known as voltage sag. When a heavy electrical load is applied, internal resistance causes a temporary drop in the displayed voltage. Once the appliance is turned off, the voltage will bounce back to its true resting state within a few minutes.
For a standard 12V system, the bulk and absorption charge voltage should generally be set between 14.2V and 14.6V. The float voltage should be set to 13.5V or 13.6V. Always consult your specific battery manufacturer guidelines, as minor variations exist between different brands.
A 48V 200Ah battery stores approximately 10.24kWh of usable energy. If your off-grid cabin consumes 5kWh per day, a single fully charged unit can power your home for about two days without any solar input. Because these batteries support over 6,000 deep discharge cycles, the physical lifespan of the unit can easily exceed 15 years under daily use.
Top balancing ensures that every individual cell within the battery pack reaches its maximum safe voltage simultaneously. Without periodic full charging to trigger this balancing process, one cell might remain undercharged while another overcharges. This imbalance ultimately reduces the total usable capacity of the battery pack and can trigger premature system shutdowns.
