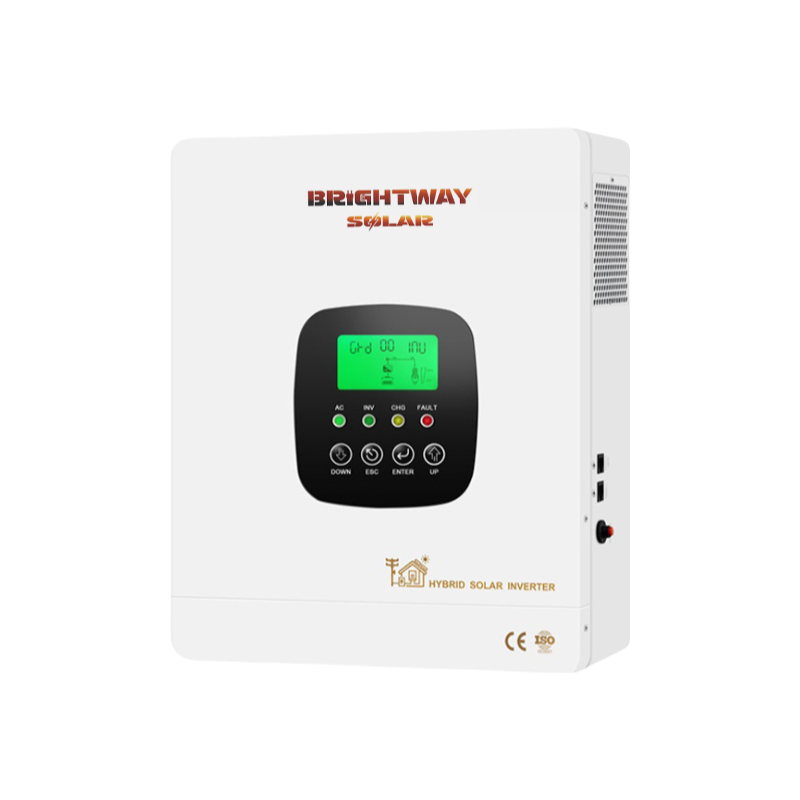

BWHFP63248
Brightway Solar
High-frequency design for high efficiency and compact size
Bidirectional energy storage for flexible energy management.
Pure sine wave output for stable and reliable load compatibility.
Ultra-wide MPPT range for improved PV system efficiency.
Configurable charging/discharging voltage and current parameters.
Multiple operating modes with output/charging priority settings.
Supports battery-less operation and lithium battery BMS communication.
Configurable output voltage/frequency for various grid environments.
| Model:BWHFP | 63248 | |
| PV | Max PV Input Power | 7000W |
| MPPT Tracking Voltage Rang | 80VDC～450VDC | |
| Rated Voltage | 360VDC | |
| Max PV Input Voltage voc(at the lowest temperature) | 500VDC | |
| Max PV Input Current | 22A | |
| MPPT Tracking Channels lnput Routed) | 1 Routed | |
| Battery&Charging | Battery Type | Lead-acid Battery/Lithium Battery |
| Qustom Battery(Charging and disdharging paramcters of different ype of batteriean be set through the operation board) | ||
| Rated Bottery Voltage | 48VDC | |
| Bottery voltage Range | 42~60VDC（default） | |
| Max PV Charging Curront | 120A | |
| Max AC Charging Curent | 80A | |
| Max Charging Curent | 120A | |
| On-Grid Operation | ||
| On-Grid Output (AC) | Rated Output Power | 6300W |
| Rated Output Voltage | 220VAC/230VAC/240VAC | |
| Grid Voltage Range | 187VAC~264VAC | |
| Rated Output Frequency | 50Hz/60Hz | |
| Frequency Range | 47Hz~52Hz(50Hz),57Hz～62Hz(60Hz) | |
| Rated Output Curent | 28.6A/27.4A/26.2A | |
| Power Fucor | >0.98(Rated Power) | |
| Off-Grid Operation | ||
| AC Input | Rated Input voltago | 220V/230V/240V |
| Moins input voltage range | 165VAC～280VAC/120VAC～280VAC(Can be set） | |
| Rated Input Frequency | 50Hz/60Hz | |
| Input Frequency Range | 45Hz～55Hz(50Hz)，55Hz～65Hz(60Hz) | |
| AC Output | Rated Output Power | 6300W |
| Rated Output Voltage | 220V/230V/240V | |
| Output Voltage Accuracy | ±2% | |
| Rated Input Frequency | 50Hz/60Hz | |
| Output Frequency Accuracy | ±1% | |
| Output Wave | Pure Sine Wave | |
| Hybrid Operation(Complementary Mode) | ||
| AC Input | Rated Input voltage | 220V/230V/240V |
| Mains input voltage range | 187VAC~264VAC | |
| Rated Input Frequency | 50Hz/60Hz | |
| lnput Frequency Range | 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) | |
| AC Output | Rated Output Power | 6300W |
| Rated Voltage Rated | 220VAC/230VAC/240VAC | |
| Output Current | 28.6A/27.4A/26.2A | |
| Regular Parameters | ||
| Maximum Conversion Efficiency （Battery Discharge) | 94%(peak value) | |
| MPPT Tracking Efficiency | ≥99.9 | |
| Transfer Time | 10ms(Typical value) | |
| Display | LCD+LED | |
| Cooling Method | Cooling fan in intelligent control | |
| Communication | RS485/Mobile APP（WIFI Monitoring or GPRS monitoring)(Optional) | |
| Protecion Degree | IP20 | |
| Installation | Wall-Mounted | |
| Protection Degree | Battery low voltage alarm | 44VDC(default value) |
| Battery low voltage protection | 42VDC(default value) | |
| Anti-islanding protection | ≤2S | |
| overload power protection | Automatic Protecion (battery mode),Circuit Breaker or Insuranc (AC mode) | |
| Inverter output short circuit | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |
| Temperature protecion | >90℃(Turn off inverter and charging) | |
| Environment | Operating temperature | -10℃~50℃ |
| Storage temperature | -15℃~60℃ | |
| Nois | ≤55dB | |
| Elevation | 2000m(More than derating) | |
| Humidity | 0%～95%,No condensation | |
| Dimension and Weight | ||
| Product Size(L*W*Hmm) | 390*320*112 | |
| Package Size(L*W*Hmm) | 465*375*187 | |
| N.W. (kg) | 10.5 | |
| G.W. (kg) | 12 | |
