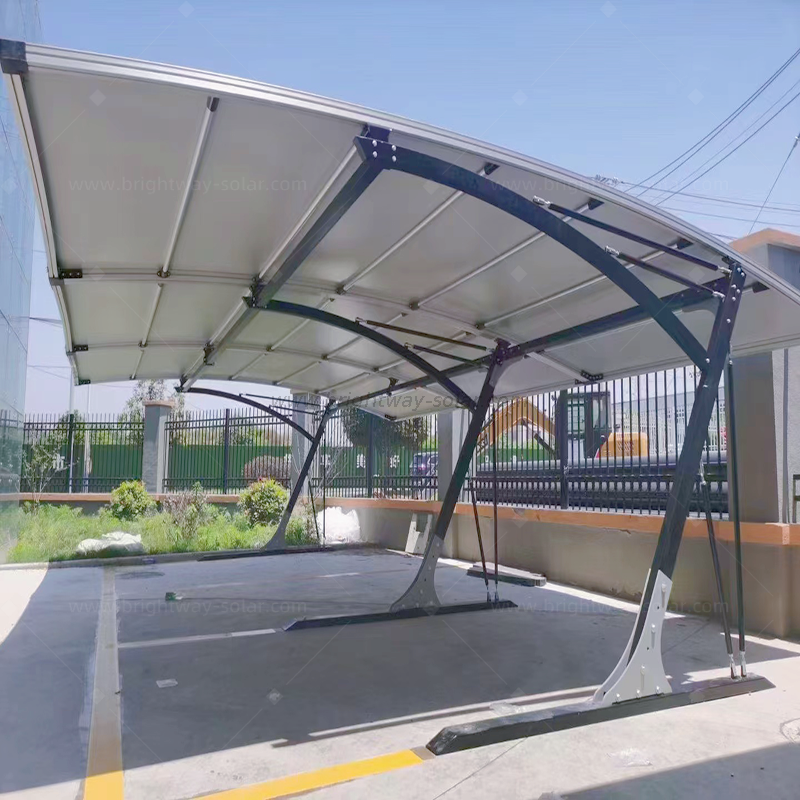

BW-CPD-09 for Solar Carport
Brightway Solar
PVDF carports boast numerous advantages, including an innovative patented silent structural design that significantly reduces noise pollution. They also possess self-cleaning properties which allow rain to wash away dirt and debris, ensuring a consistently clean surface. These carports combine beauty with strength, providing an attractive yet sturdy shelter. With the ability to block 99% of harmful ultraviolet rays, they offer excellent protection from the sun's intense heat and light. Additionally, they demonstrate outstanding weather resistance and insulation properties, keeping the interior cool in summer and warm in winter. Lastly, these carports have an exceptional impact resistance, making them highly durable and long-lasting under various environmental conditions.
Technical Specifications
| Solar Bracket Parameter | |
| Type | BW-CPT-09 for Solar Carport |
| Material of frame | ≥1.5mm Aluminium profile |

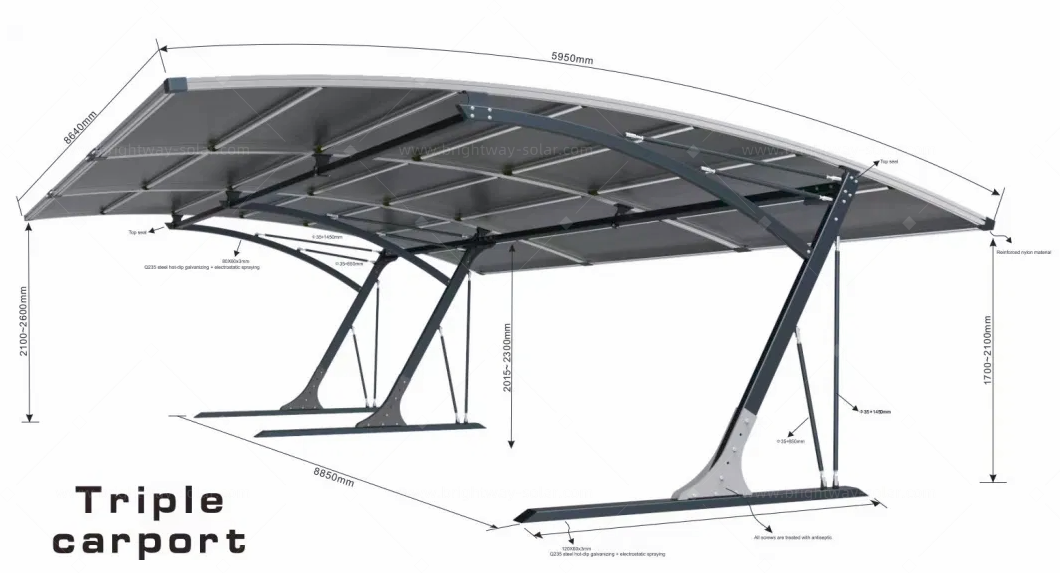

| Standard size of carport | 8640X5950mm |
| Packing size of carport | 2920*560*560mm |
| Gross weight of carport | 780kg |
| The front height of carport | 2.1~2.6m |
| The back height of carport | 1.7~2.1m |
| Bracket | Hot dip galvansied Customizable |
| Membrane | Tensioned Membrane structure with PVDF coating at surface |
| Thickness of the PVDF membrane | 0.85mm |
| Weight of the PVDF membrane | 1050g/m² |
| Thickness of the steel tube | 3.0mm |
| Thickness of foundation | 8mm |
| Warranty | 12 years warranty;25 years service life |
| Solar Panel Parameter | |
| Product name | 300W ETFE FLEXIBLE SOLAR PANEL |
| Pmax | 300W |
| Vmp | 25.2V |
| Imp | 11.9A |
| Voc | 30.3V |
| Isc | 12.6A |
| Solar Cell | Monocrystalline silicon |
