400W 500W 600W Small Wind Turbine Generator

Quantity:



Inquire Add to Basket

Model NO.:
BWW-M02
HS Code:
8503003000
Port:
Shanghai, China
Production Capacity:
10000set/Year
Payment Terms:
L/C, T/T, Western Union, Money Gram

Product Description

Specifications & Configurations

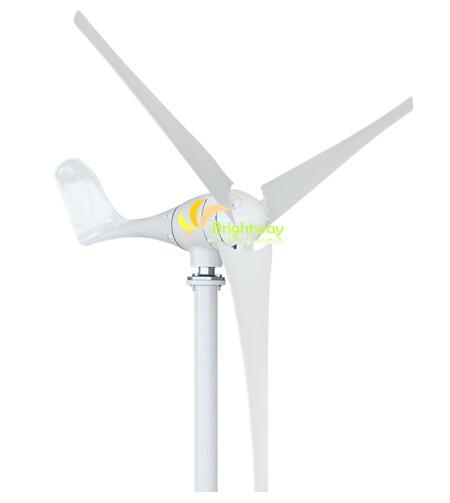

400W 500W 600W Small Wind Turbine Generator

1. Low starting wind speed, small volume, beautiful appearance and low running vibration;

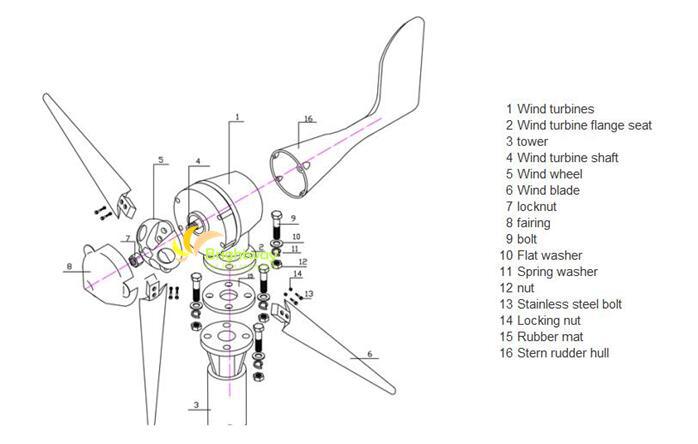

2. Humanized flange installation design is used to facilitate installation and maintenance;
3. The blades of the wind turbine are made of nylon fiber with optimized aerodynamic shape design and mechanism design. The low starting wind speed and high utilization coefficient of wind energy increase annual power generation.
4. The generator adopts patented permanent magnet rotor alternator with special rotor design to effectively reduce the resistance torque of the generator, which is only 1/3 of that of the ordinary motor. At the same time, it makes the wind wheel and generator have better matching characteristics and the unit operation reliability.
5. Adopt the maximum power tracking intelligent microprocessor control to effectively regulate the current and voltage.

Model	BWW-400M2	BWW-500M2	BWW-600M2
Rated power	400W	500W	600W
Max.power	420W	530W	610W
Rated voltage	12/24V	12/24V	12/24/48V
Start wind speed	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	11m/s	11.5m/s	12m/s
Safe wind speed	45m/s	45m/s	45m/s
Host weight	15kg	15.3kg	15.5kg
Rotor diameter	1.8m	1.8m	1.8m
Leaf number	3pcs
Leaf blade material	Nylon fiber
Generator type	Three-phase ac permanent magnet synchronous generator
Magnetic steel material	ndfeb
Generator enclosure materials	Die casting aluminum
Control system	Electromagnetic/windwheel is off side
Speed control method	Adjust the windward Angle automatically
Working temperature	-40ºC ~ 80ºC
Lubricating method	Add grease

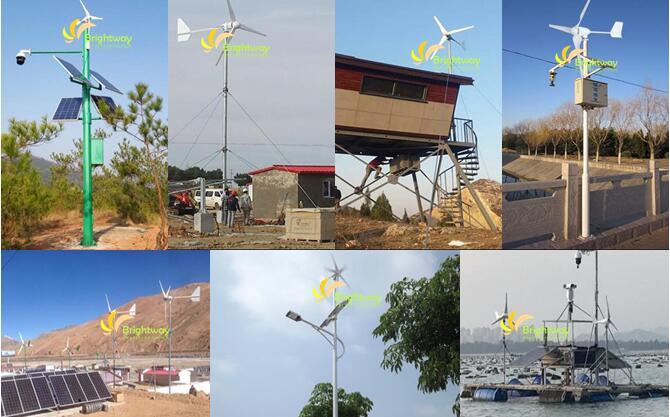

Project Show

400W 500W 600W Small Wind Turbine Generator

Company profile
400W 500W 600W Small Wind Turbine Generator

Payment & Delivery

Payment terms	T/T	EXW	30% In advance, 70% before delivery
		FOB
		CFR/C&F	30% In advance, 70% against copy of B/L
		CIF
	L/C	Total amount above USD70,000, we accept L/C at sight
	West Union	Total amount less than USD5,000
	PayPal
Delivery time	15-20 working days after receiving down payment for one container
