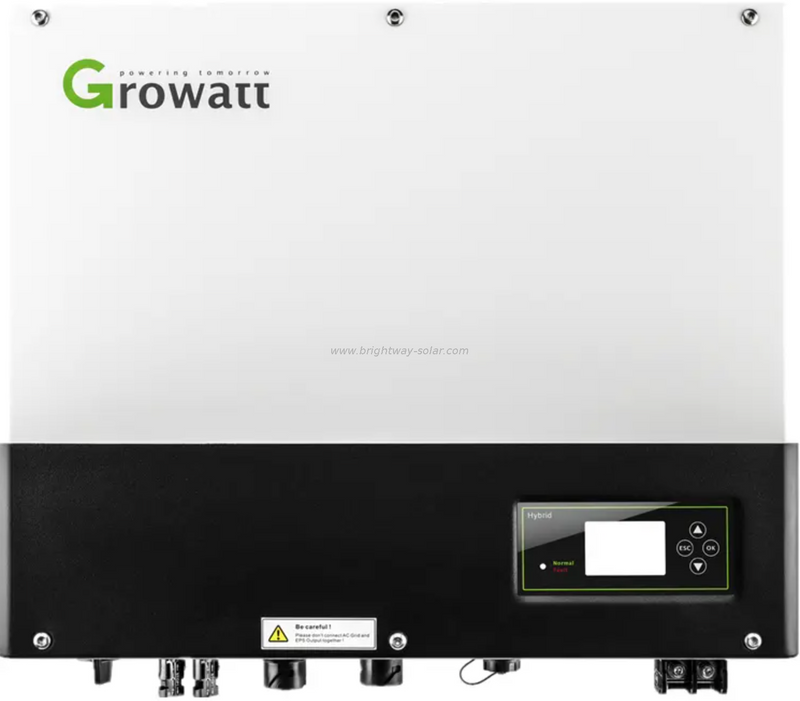

Growatt 5kw Growatt Hybrid Inverter on off Grid Inverter Solar Hybrid Solar Inverter

Availability:

Quantity:



Inquire Add to Basket

Model:
SPH5000TLBL-UP
Brand:
Growatt

Product Description

Overview

A hybrid solar inverter is a type of solar energy inverter that combines features of both central and distributed inverters. It is designed to convert direct current (DC) generated by solar panels into alternating current (AC) for use in the grid or home.

Product Description

产品展示1

Specifications

Datasheet	SPH3000TL BL-UP	SPH3600TL BL-UP	SPH4000TL BL-UP	SPH4600TL BL-UP	SPH5000TL BL-UP	SPH6000TL BL-UP
Input data(PV)
Max. recommended PV power (for module STC)	6500W	7500W	8500W	9000W	9500W	10600W
Max. DC voltage	550V
Start voltage	120V
MPP voltage range/ Nominal Voltage	120-550W370V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. Input current per MPP tracker	13.5A
Mac shor^drciit curent per IVPP Iracker	16.9A
Output data(AC)
AC nominal power	3000W	3680W	4000W	4600W	5000W	6000W
Rated AC apparent power	3000VA	360M	4000WX	460M	500M	6000WX
Nominal AC voltage (range)	230VZ(180Vbc-260Vbc)
AC grid frequency (range)	50Hz760Hz (45Hz-55Hz755Hz-65Hz)
Rated, output current	13.5A	16A	17.5A	20A	22A	27A
Adjustable power factor	0.8leadlng.. .0.8lagglng
THDi	<3%
AC grid connection lype	Single phase
Battery data (DC)
Battery voltage range			42-59V
Max charging and discharging current	66A	75A	85A	85A	85A	85A
Continuous charging and discharging power	3000W	3680W	4000W	4000W	4000W	4000W
Type of battery	Lithium /Lead-acid
Backup power(AC)
Max. AC output power	3000W	3680W	4000W	4000W	4000W	4000W
Rated output current	13A	16A	17.5A	17.5A	17.5A	17.5A
Nominal AC output voltage			230Vbc
Nominal AC output frequency			50/60HZ
THDv			<3%
Switch time			<10ms
Efficiency
MAX. efficiency	97.20%	97.20%	97.30%	97.40%	97.50%	97.60%
European efficiency	97%	97%	97.10%	97.10%	97.20%	97.20%
MPPT efficiency			>99.5%
Protection devices
DC switch			Yes
DC reverse polariiy protection			Yes
AC/DC surge protection			Yes
Battery reverse protection			Yes
AC short-circuit protection			Yes
Ground fault monitoring			Yes
Grid monitoring			Yes
Anti-islanding protection			Yes
Residual-current monitoring unit			Yes
Insulation resistance monitoring			Yes
General data
Dimensions (W/H/D)	565/456/188mm
Weight	27kg
Operating temperature range	–25°C...+60°C
Nighttime power consumption	< 10W
Topology	Transformerless
Cooling	Naiural
Protection degree	IP65
Relative humidiiy	0-100%
Attitude	2000m
PV DC Connection	H4/MC4(Optional)
Battery DC Connection	OT lerminal
AC connection	Connector
Display	LCD+LED
lnterfaces:RS485/CANAJSB	Yes
Monitor: RF/WIFI/GPRS	Optional
Warranty: 5 years ) 10 years	Yes/Optional
