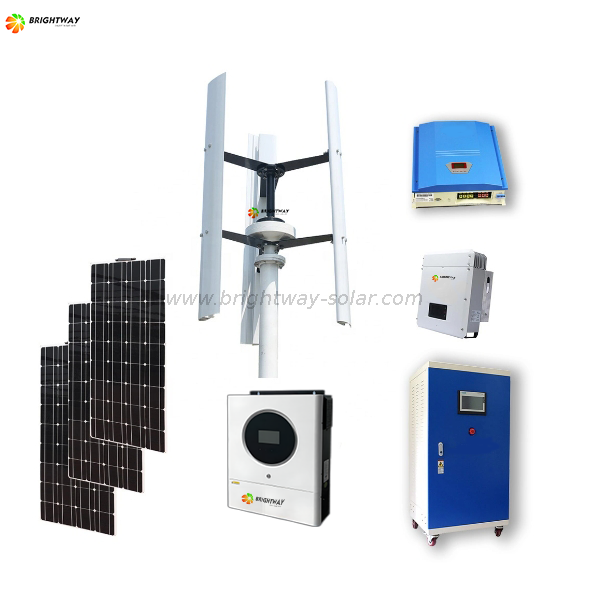

BWSH-H3000
Brightway
Ready to ship,CE,Fast Dispatch,On-time delivery
1.3 blades
2.20 years use life and 5 years for warranty
3.Low noise.
4.Light,stable and safety.
5.Certification:CE
6.High efficiency,could be hibird system with solar panels.
7.Applications:Marine,Boat,Streetlights,Home,Opening Plaza lighting...
Packing List:
1.Vertical wind turbine 1 set.
2. Flange 1 piece.
3.MPPT Controller(option).
Technical specifications and parameters
| Model | BWSH-H3000 |
| Rated Power | 3000W |
| Blade Quantity | 3piece |
| Impeller Height | 3.6m |
| Diameter Of Wind Wheel | 2m |
| Weight | 165KG |
| Package Weight | 200KG |
| Package Size (Mm) | Wooden case motor box：1550*450*560；125kgWooden box blade box：3650*250*510；75kg |
| Packing | wooden box |
| Nominal Voltage | 48v/96v/120vac/customized |
| Form | Vertical axis wind turbine |
| Start-Up Wind Speed | 2.3m/s |
| Rated Wind Speed | 11m/s |
| Extreme Wind | 45m/s |
| Braking System | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic Brake | Active brake, electric brake |
| Controller Unit | PLC |
| Interface | HMI |
| Alternator Type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation Class | H |
| Blade Material | aluminum alloy |
| Design Level | IEC Class Ⅲ |
| Tower Type | Independent pole |
| Authentication | CE；IOS |
| Noise Level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | 2000m following |
| Degree Of Protection | IP54 |
| Design Life | 20 years |
