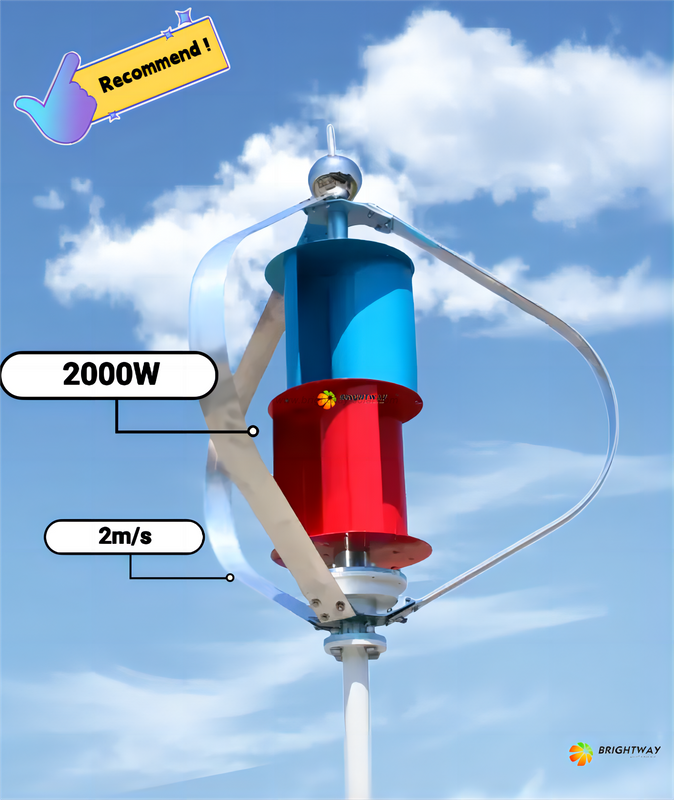

BWSH-QH2000
Brightway
Advantages of wind energy
Excellent aluminum alloy blades, with surface treated by spraying or oxidation, providing good corrosion resistance。
Magnetic suspension generator has low torque and high power conversion rate during startup; rare earth permanent magnet suspension generator has high power and low loss.
The blade itself has speed protection, and can be configured with mechanical manual and electronic automatic braking.
The tight fit design between the hub groove and the blade makes the fit between the blade and the hub more consistent.
Technical specifications and parameters
| Model | BWSH-QH2000 |
| Rated power | 2kW |
| Nominal voltage | 96V/220/380v/customized |
| Blade quantity | 3piece |
| Diameter of wind wheel | 2.6m |
| Impeller height | 2.6m |
| Electronic unloading | 5kW |
| Brake resistance box | |
| Rated speed | 300 RPM |
| Start-up wind speed | 2.3m/s |
| Rated wind speed | 10m/s |
| Extreme wind | 45m/s |
| Wind turbine type | Vertical axis wind turbine |
| Braking system | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic brake | Active brake, electric brake |
| Controller unit | PLC |
| Interface | HMI |
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation class | H |
| Blade material | aluminum alloy |
| Design level | IEC Class Ⅲ |
| Tower type | Independent pole |
| Outhentication | CE；IOS |
| Noise | 35FB |
| Noise level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | ≤2000m |
| Degree of protection | IP54 |
| Design life | 20 Years |
