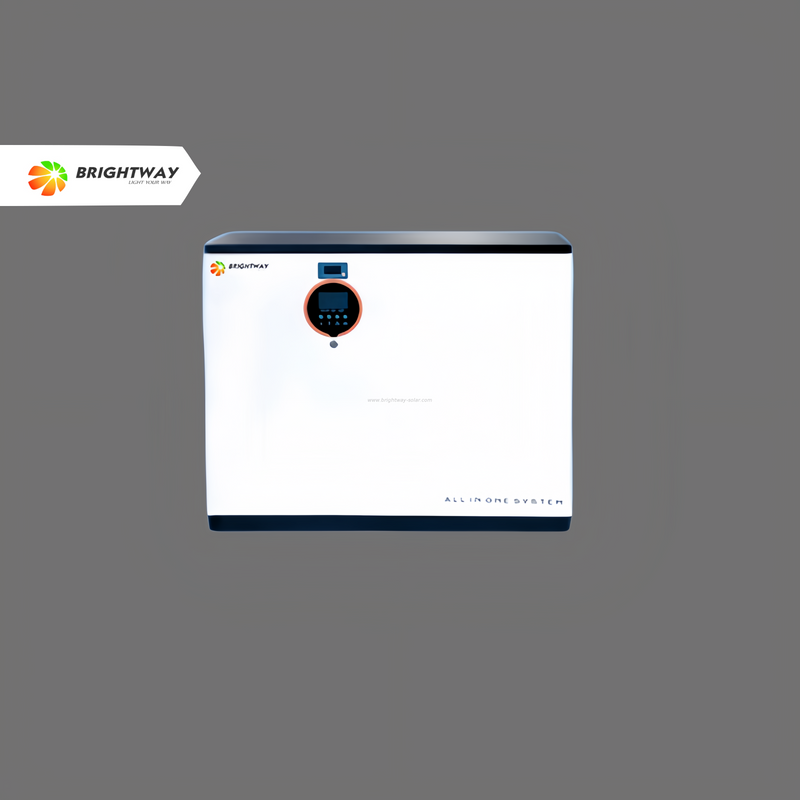

BW-6200A-7680
Brightway
Each energy block of the system boasts the capabilities of energy storage and AC/DC power conversion, enabling flexible scalability and modular expansion of the energy storage system through parallel stacking of multiple units. With support for remote monitoring via GPRS/WIFI/RS485, users can conveniently track energy usage and manage their system from anywhere.
Backed by a 3-year warranty and designed for a long lifespan of over 10 years.
Technical Specifications
| Model | BW-6200A-7680 |
| Inverter Parameters | |
| Rated power | 6200W |
| AC rated voltage | 230VAC |
| Selectable voltage range | 170-280VAC |
| Frequency range | 50HZ-60HZ |
| AC voltage | 230VAC±5% |
| Max.power output | 11000VA |
| Efficiency | ≥93.5% |
| Transfer time | 10ms |
| Waveform | Sine Wave |
| Rated battery voltage | 51.2V |
| Battery voltage range | 44.8-60V |
| Compatible battery type | Lithium |
| Max.PV array open circuit | 500VDC |
| Max.PV array power | 6200W |
| MPPT@MPPT range@Operating voltage | 120-450VDC |
| Max.charge current | 100A |
| Battery parameter | |
| Rated capacity | 7.68KWH |
| Nominal voltage | 51.2V |
| Discharge voltage range | 43.2-57.6V |
| Charging current | 1C@25℃ |
| Max.charging current | 1C@25℃ |
| Max.discharge current | 1C@25℃ |
| Max.power output | 7680wh |
| Depth of discharge DOD | 0.9 |
| Communication Interface | RS485/RS232/CAN |
| Cycles | 25±2℃,0.5C/0.5℃,EOL70%≥6000 |
| Working Temp.Range | Charge:0℃~50℃ |
| Storage temperature(℃) | Discharge:-10℃~60℃ |
