BWS-RESS500KS-1106M
Brightway Solar

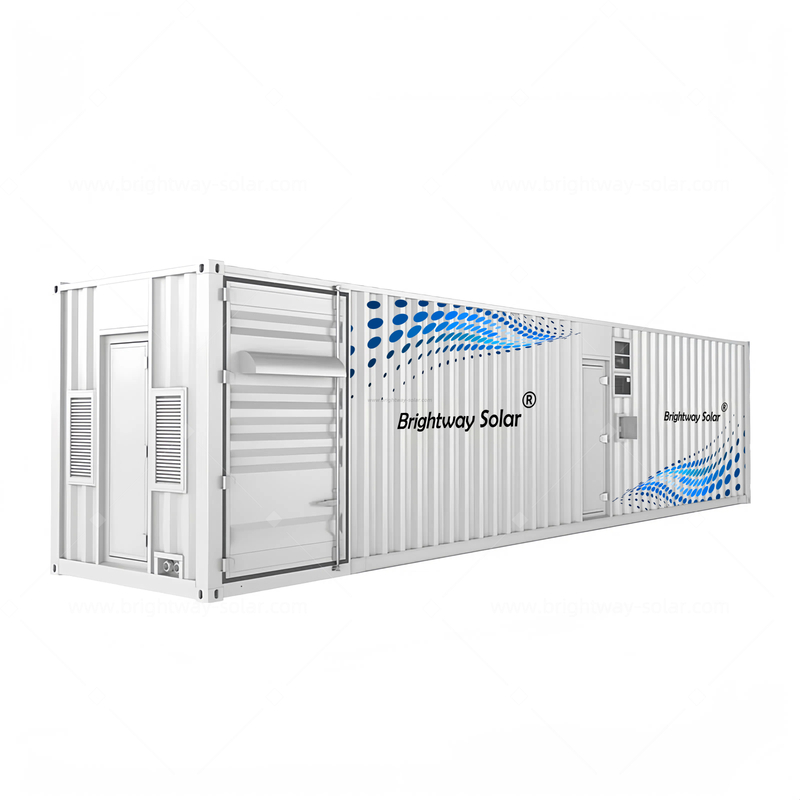

An outdoor 40-foot container ESS with a capacity of 500KW/1.106Wh is designed for large-scale commercial and industrial energy storage projects. The DC side of the system comprises eight modular lithium battery energy units, each with a capacity of 138kWh. On the AC side, it employs an SNE hybrid inverter PCS, which, through the EMS operation strategy, interacts seamlessly with the grid and provides power backup to customers during periods of limited electricity supply.
Technical Specifications
| Model | BWS-RESS500KS-1106M |
| DC data | |
| Battery capacity (MWh) | 1.106MWH |
| Number of battery racks | 8 |
| BMS communication interface | RS485/CAN |
| DC voltage range (V) | 600V~850V |
| Photovoltaic input | |
| Max.PV input voltage(V) | 1000VDC |
| Max.PV power(kW) | 600/660/720KW |
| MPPT voltage range(V) | 200VDC-850VDC |
| MPPT voltage range@full load (V) | 450VDC-850VDC |
| AC data | |
| Rated AC power(kW) | 500KW |
| Max. AC power(kW) | 550KW |
| Rated AC current(A) | 722A |
| Max. AC current(A) | 800A |
| DC current component | < 0.5 % |
| THDi | ＜3% (Rated power) |
| Rated grid voltage(V) | 400V |
| Allowable grid voltage range(V) | 320V-460V |
| Rated grid frequency(Hz) | 50/60Hz |
| Allowable grid frequency range | 45-55/55-65Hz |
| Power factor | 1lagging-1leading |
| Isolation method | No isolation |
| General data | |
| Ingress protection | IP54 |
| Fire extinguishing system | support |
| Running time (full power) | 2h |
| Operating temperature | －30～+55℃ |
| Dimension W*D*H (mm) | 12192 ×2438×2896mm |
| Weight (T) | 3.5T |
| BMS communication | RS485, CAN |
| EMS communication | RS485, TCP/IP |
| PCS cooling way | Temperature control intelligent air cooling |
| Battery cooling way | Air conditioning cooling |
| Altitude | 4,500m(>3,000 Derating) |
| Relative humidity | 0 ~95% non-condensing |
