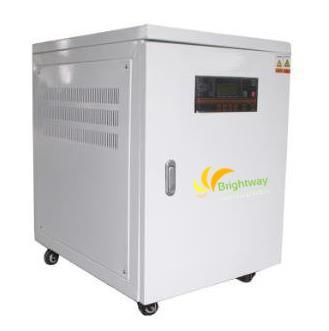

18kw Grid Tie Inverter for Solar Power System

Availability:
Quantity:

Description:
PV grid-connected power system includes PV modules, grid-connected inverter, meter and power switch board.
The PV modules convert the solar energy to the DC power, then the grid-connected inverter the DC power to the sine wave AC power which has the same frequency and phase with the grid voltage.
The AC power feed in the grid partly and the other powers supply the local loads.


Features:
1. Improve the system efficiency higher
2. High conversion efficiency
3. Advanced technology for maximum power point tracking(MPPT)(>97%)MPPT efficiency
4. Wide input voltage range
5. High reliability due to compltte protection function
6. Powerful communication interfaces
7. Easy operation and installation
8. Easy-to-set multilingual LCD display
9. Adjustable protection / operation parameters

Technical indicators:

Model

BWI-GT18K

BWI-GT20K

DC Input

MPPT Voltage Range

DC200~820V

Max. DC Voltage

850VDC

Rated DC Voltage

620V

Start Voltage

400V

Recommended PV Array Open Circuit Voltage

620V

Control System

MPPT

Number of MPPT Tracker

1/2

AC Output

Rated Output Power

18KW

20KW

Rate Grid Voltage

AC380V(Grid Voltage)

Grid Voltage range

AC 342~418V (3 phase)

Normal Grid Frequency

50/60Hz(Grid Frequency)

Phases

3 phase 4 wire

Power Factor

> 0.95

Current THD

At rated power and in the sine wave<5%

Control System

PWM

Anti-islanding

≤0.5 sec

Output Overload

100%

Max. Efficiency

98%

Euro Efficiency

96.4%

Structure

Protection Class

IP65

Cooling system

Natural cooling

Noise

< 50dB

Data Interfaces

External RS232C/RS485

Web Module(Option)

RS232C to TCP/IP

Display

LCD

Dimensions(W*H*D)

450*640*700MM

450*640*700MM

Weight

75kg

80kg

Protection

Inverter

Input overvoltage, output short circuit, overheat,

output DC component.

Grid

Anti-islanding, over/under voltage of grid,

over/under frequency of grid.

Environment

Environment

No corrosion gas, flammable gas, oil mist, dust etc.

Operation temperature

-10°C~40°C(50°C)

Stored temperature

-20°C~65°C

Relative humidity

0~100% (Do not wet with dew)

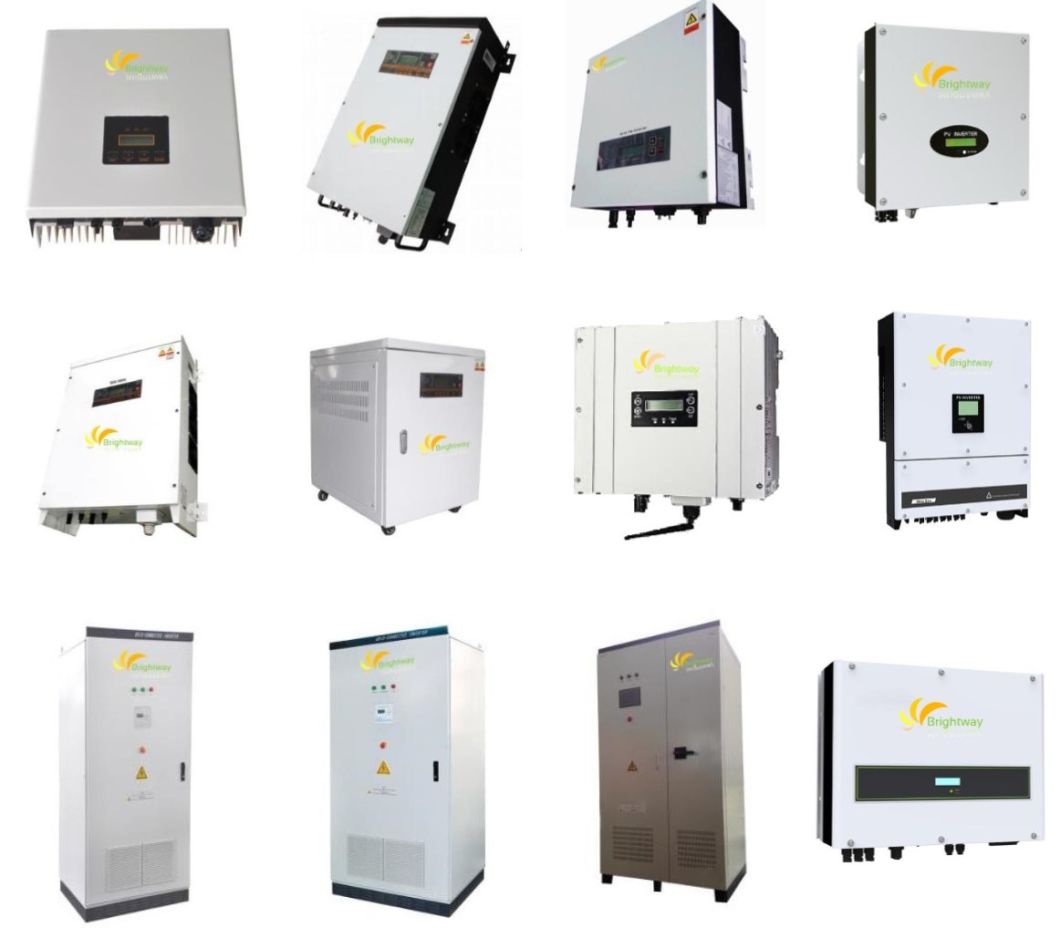

18kw Grid Tie Inverter for Solar Power System
