8kw Grid Tie Inverter for Solar Power System

Quantity:
  • BWI-GT8K
  • Solar Power
  • Full-Bridge Type
  • Sine Wave Inverter
  • Brightway
  • Carton
  • 713*600*255mm
  • Yangzhou
  • 8504403090
  • Yangzhou, China
  • 50000PCS/Month
  • L/C, T/T, Western Union, Money Gram
Description:
PV grid-connected power system includes PV modules, grid-connected inverter, meter and power switch board.
The PV modules convert the solar energy to the DC power, then the grid-connected inverter the DC power to the sine wave AC power which has the same frequency and phase with the grid voltage.
The AC power feed in the grid partly and the other powers supply the local loads.


Features:
1. Improve the system efficiency higher
2. High conversion efficiency
3. Advanced technology for maximum power point tracking(MPPT)(>97%)MPPT efficiency
4. Wide input voltage range
5. High reliability due to compltte protection function
6. Powerful communication interfaces
7. Easy operation and installation
8. Easy-to-set multilingual LCD display
9. Adjustable protection / operation parameters

Technical indicators:

Model

BWI-GT8K

DC Input

MPPT Voltage Range

DC100~500V

DC200~820V

Max. DC Voltage

550VDC

850VDC

Rated DC Voltage

360V

620V

Start Voltage

180V

400V

Recommended PV Array Open Circuit Voltage

200-400V

620V

Control System

MPPT

Number of MPPT Tracker

1/2

AC Output

Rated Output Power

8000W

Rate Grid Voltage

AC220V(Grid Voltage)

AC380V(Grid Voltage)

Grid Voltage range

AC 185~264V (1 phase)

AC 342~418V (3 phase)

Normal Grid Frequency

50/60Hz(Grid Frequency)

Phases

1 phase 2 wire

3 phase 4 wire

Power Factor

> 0.95

Current THD

At rated power and in the sine wave <5%< span="">

Control System

PWM

Anti-islanding

≤0.5 sec

Output Overload

100%

Max. Efficiency

98%

Euro Efficiency

96.4%

Structure

Protection Class

IP65

Cooling system

Natural cooling

Noise

<< span=""> 50dB

Data Interfaces

External RS232/RS485

Web Module(Option)

RS232C to TCP/IP

Display

LCD

Dimensions(W*H*D)

590*540*227mm

713*600*255MM

Weight

30kg

34kg

Protection

Inverter

Input overvoltage, output short circuit, overheat, output DC component.

Grid

Anti-islanding, over/under voltage of grid,

over/under frequency of grid.

Environment

Environment

No corrosion gas, flammable gas, oil mist, dust etc.

Operation temperature

-10°C~40°C(50°C)

Stored temperature

-20°C~65°C

Relative humidity

0~100% (Do not wet with dew)

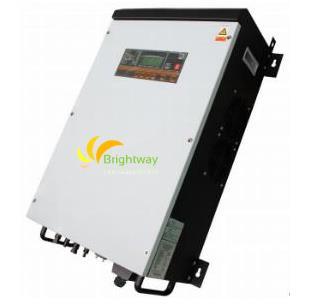

8kw Grid Tie Inverter for Solar Power System

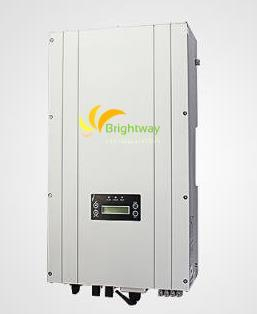

8kw Grid Tie Inverter for Solar Power System
