BWSH-QH3000
Brightway

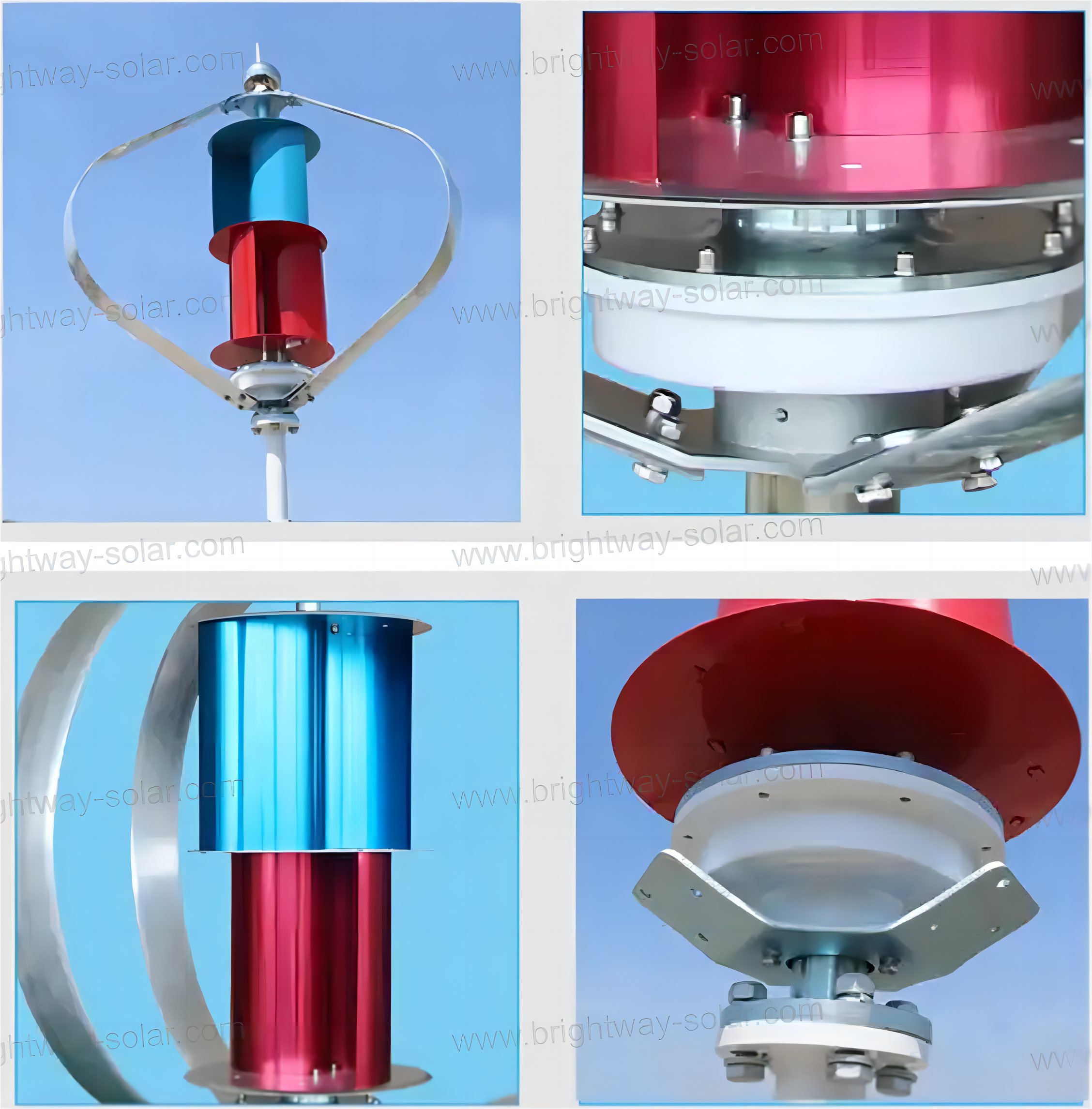

Advantages of wind energy
High-quality aluminum alloy blades, the surface is sprayedor oxidized, with good corrosion resistance.
Magnetic levitation generator has low torque at startup, high powergeneration conversion rate, rare earth permanent magnet levitationgenerator, high power, low loss.
The blade itself has speed protection, and can be equipped withboth mechanical manual and electronic automatic brakes. In areaswithout typhoons and super gusts, only manual brakes can be set.
The tight fit design between the hub groove and the blade makesthe fit between the blade and the hub more consistent.
Technical specifications and parameters
| Model | BWSH-QH3000 |
| Rated power | 3kW |
| Nominal voltage | 96V/220/380v/customized |
| Blade quantity | 3piece |
| Diameter of wind wheel | 3m |
| Impeller height | 3m |
| Electronic unloading | 5kW |
| Brake resistance box | |
| Rated speed | 220 RPM |
| Start-up wind speed | 2.3m/s |
| Rated wind speed | 10m/s |
| Extreme wind | 45m/s |
| Wind turbine type | Vertical axis wind turbine |
| Braking system | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic brake | Active brake, electric brake |
| Controller unit | PLC |
| Interface | HMI |
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation class | H |
| Blade material | aluminum alloy |
| Design level | IEC Class Ⅲ |
| Tower type | Independent pole |
| Outhentication | CE；IOS |
| Noise | 35FB |
| Noise level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | ≤2000m |
| Degree of protection | IP54 |
| Design life | 20 Years |
