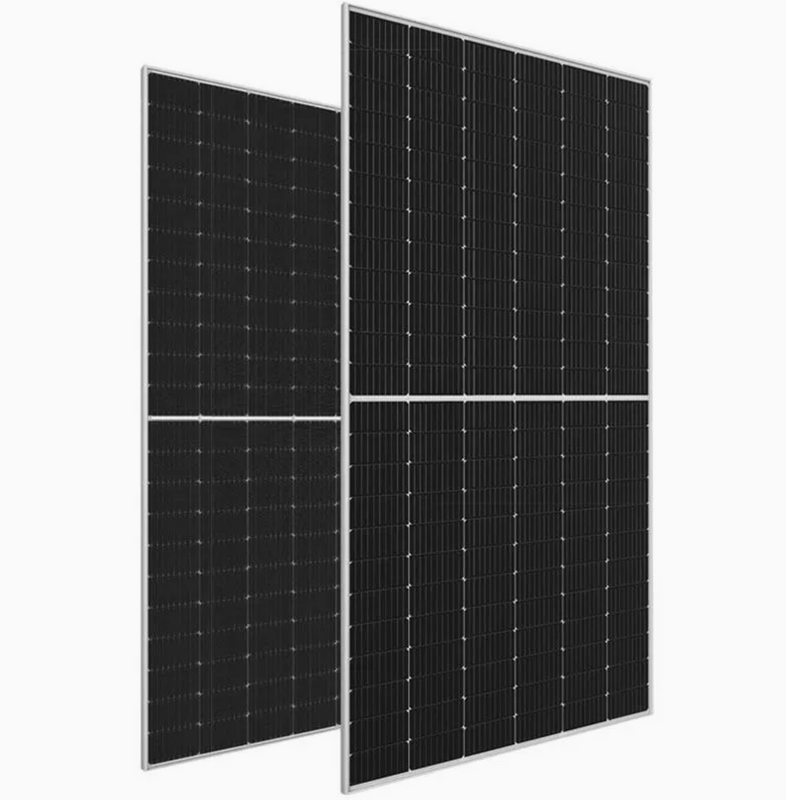

Brightway Solar 132 Cells 615W 615 Watt Monocrystalline Photovoltaic Solar Module

Name: Brightway Solar 132 Cells 615W 615 Watt Monocrystalline Photovoltaic Solar Module
Brand: Brightway Solar
Rating: 5.0 (51 reviews)

The BWGPM615W(132) solar module boasts 620W max power, 22.93% efficiency, and robust -40°C to +85°C temp range. Ideal for large installations with 1500VDC system voltage and 30A fuse protection.

Availability:

Quantity:



Inquire Add to Basket

Model:
BWGPM615W(132)
Brand:
Brightway Solar

Product Description

BWGPM12RT-615W（132）

Function Characteristics

The BWGPM615W(132) module is a remarkable solar product. It has a maximum power of 615W and operates within a temperature range of -40 to +85°C. The maximum power voltage is 41.1V and current is 14.96A. With an open-circuit voltage of 49.3V and short-circuit current of 15.89A. Its module efficiency at STC is 22.75%. The maximum system voltage is 1500VDC and max series fuse rating is 30A. It also features specific temperature coefficients for Voc, Isc, and Pmax. The power tolerance is 0 - +3% and can withstand 2400Pa wind load and 5400Pa snow load, suitable for various solar power applications.

Technical Specifications

Module Type	BWGPM625W(132)
	STC	NOCT
Maximum Power (Pmax)	615	458.2
Maximum Power Voltage (Vmp)	41.1	38.04
Maximum Power Current (lmp)	14.96	12.05
Open-circuit Voltage (Voc)	49.3	45.63
Short-circuit Current (lsc)	15.89	12.79
Module Efficiency STC (%)	22.75%
Operational Temperature(℃）	-40~+85°C
MaximumSystemVoltage	1500VDC
Max Series Fuse Rating	30A
Power tolerance	0~+3%
Wind/Snow Load	2400Pa/5400Pa
Temperature coefficients of Voc	-0.230%/℃
Temperature coefficients of Isc	+0.045%/℃
Temperature Coefcient of Pmax	-0.280%/℃
