BWGPG585W(144)
Brightway Solar

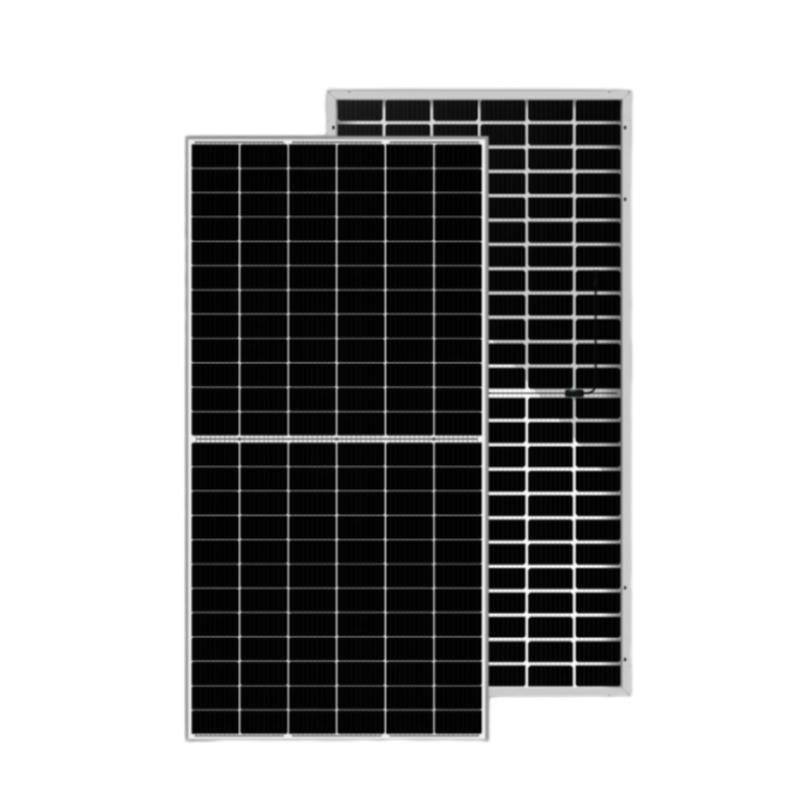

The BWGPG585W solar module offers a maximum power of 585Wp with an efficiency of 22.65% under standard test conditions (STC). It boasts a maximum power voltage of 41.93V and a current of 13.95A. The open-circuit voltage reaches 50.43V, while the short-circuit current stands at 14.62A. This module is designed for high performance and reliability, ideal for various solar energy systems.
| Module Type | BWGPG585W(144) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 585Wp | 435.8Wp |
| Maximum Power Voltage (Vmp) | 41.93V | 38.80V |
| Maximum Power Current (lmp) | 13.95A | 11.23A |
| Open-circuit Voltage (Voc) | 50.43V | 47.27V |
| Short-circuit Current (lsc) | 14.62A | 11.77A |
| Module Efficiency STC (%) | 22.65% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 30A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/℃ | |
| Temperature coefficients of Voc | -0.25%/℃ | |
| Temperature coefficients of Isc | 0.045%/℃ | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
