BWR3KL1
Brightway

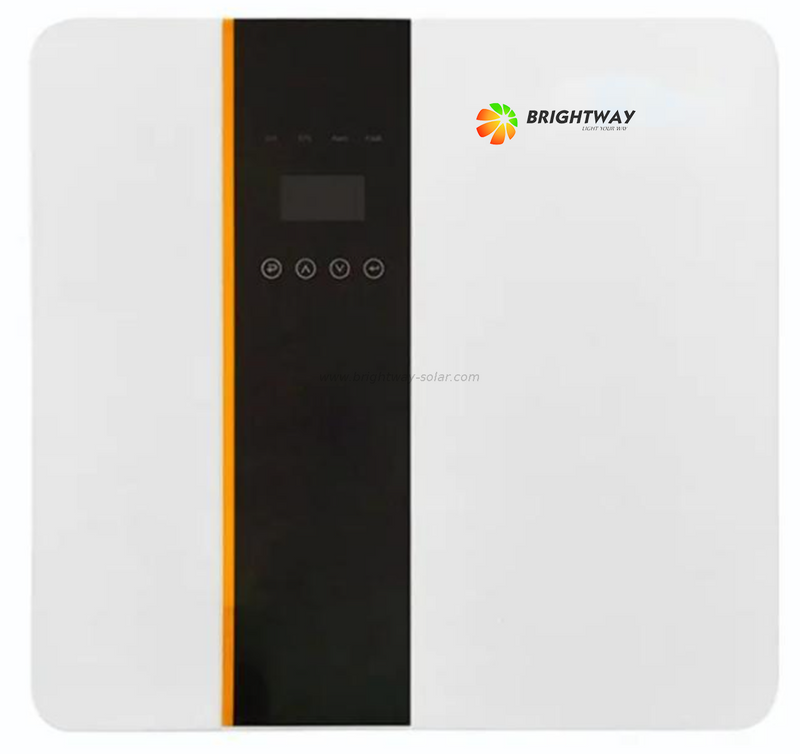

L1 Series 3-6kW low-voltage hybrid inverter supports simultaneous input of PV, batteries, diesel generators, power grids, and loads. It has multiple application modes, including self-consume, peak shaving and valley filling, and backup power supply. It supports the parallel connection of multiple machines and is suitable for various home energy storage applications. Brightway 3kW-6kW single-phase hybrid inverter is with addvanced built in MPPT charge controller , acceptable input voltage range from 125~500VAC.
| Datasheet | BWR3KL1 | BWR3K6L1 | BWR4KL1 | BWR4K6L1 | BWR5KL1 | BWR6KL1 |
| DC Input | ||||||
| Max. Input Power | 4600W | 6000W | 7000W | |||
| Start-up Voltage | 125V | |||||
| Max. PV Voltage | 500V | |||||
| PV Voltage Range | 125V-500V | |||||
| MPPT Range/Nominal | 125V-500V /360V | |||||
| Max. Input Current | 14A/14A | |||||
| MPPT Tracker/Strings | 2/1 | |||||
| AC Output | ||||||
| Rated Power W/VA | 3000VA/3000W | 3600VA/3600W | 4000VA/4000W | 4600VA/4600W | 5000VA/5000W | 6000VA/6000W |
| Max. Output Current | 13A | 16A | 17.4A | 20A | 21.7A | 26A |
| Nominal Voltage/Range | 230Vac /176Vac~270Vac | |||||
| Frequency | 50 /60Hz | |||||
| PF | 1(0.8lagging-0.8leading) | |||||
| THDI | < 3% | |||||
| AC Output Topology | L+N+PE | |||||
| Battery | ||||||
| Battery Voltage Range | 42~59V | |||||
| Max. Charging Voltage | 58V | |||||
| Charge/Discharge Current | 95A/62.2A | 95A/76.6A | 95A/83.3A | 95A/95.8A | 95A/110A | 95A/110A |
| Battery Type | Lithium /Lead-acid | |||||
| Communication Interface | CAN/RS485 | |||||
| EPS Output | ||||||
| Rated Power W/VA | 3000VA/3000W | 3600VA/3600W | 4000VA/4000W | 4600VA/4600W | 5000VA/5000W | 6000VA/6000W |
| Rated Voltage | 230Vac | |||||
| Rated Current | 13A | 16A | 17.4A | 20A | 21.7A | 26A |
| Rated Frequency | 50Hz | |||||
| Automatic Switchover Time | < 20ms | |||||
| THDU | < 2% | |||||
| Parallel Operation | Yes | |||||
| General Data | ||||||
| Battery Charge/Discharge | 95% | |||||
| DC Max. Efficiency | 97.60% | |||||
| Euro Efficiency | 97% | |||||
| MPPT Efficiency | 99.90% | |||||
| Protection Class | IP65 | |||||
| Noise Emission (Typical) | < 35dB | |||||
| Operation Temperature | -25~+60℃ | |||||
| Cooling | Natural | |||||
| Relative Humidity | 0 ~95% (non-condensing) | |||||
| Altitude | 2000m | |||||
| Dimensions (W/D/H) mm | 550/200/515mm | |||||
| Weight | 25kg | |||||
| Inverter Topology | transformerless | |||||
| Self-Consumption | < 3W | |||||
| Features | ||||||
| Display | LCD | |||||
| Interface: RS485/Wi-Fi/4G/CAN/DRM | Yes /Opt/Opt/Yes/Yes | |||||
| Certificates | CE, TUV,SAA,NRS | |||||
