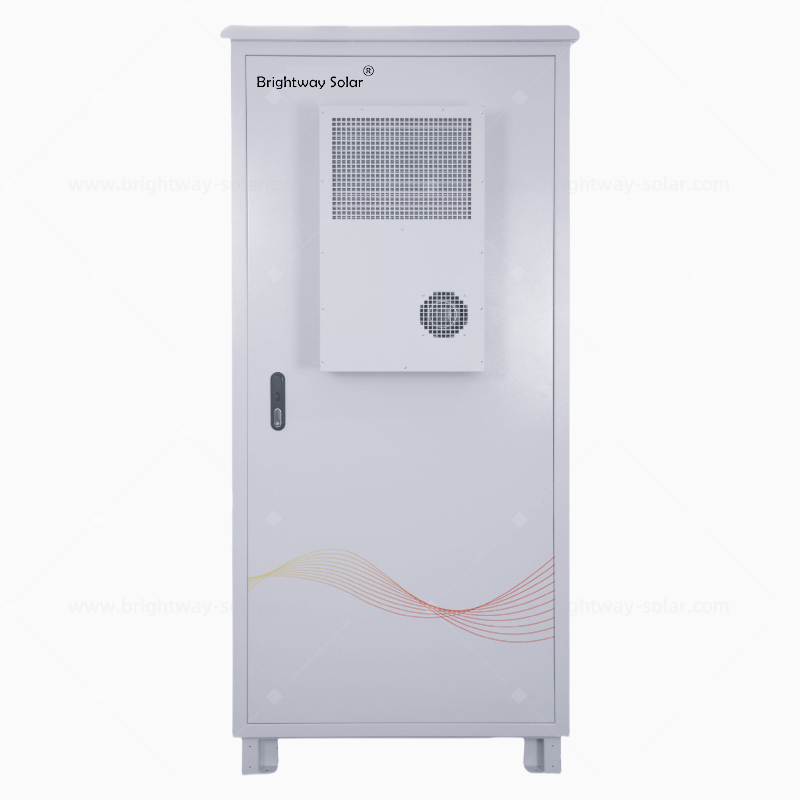

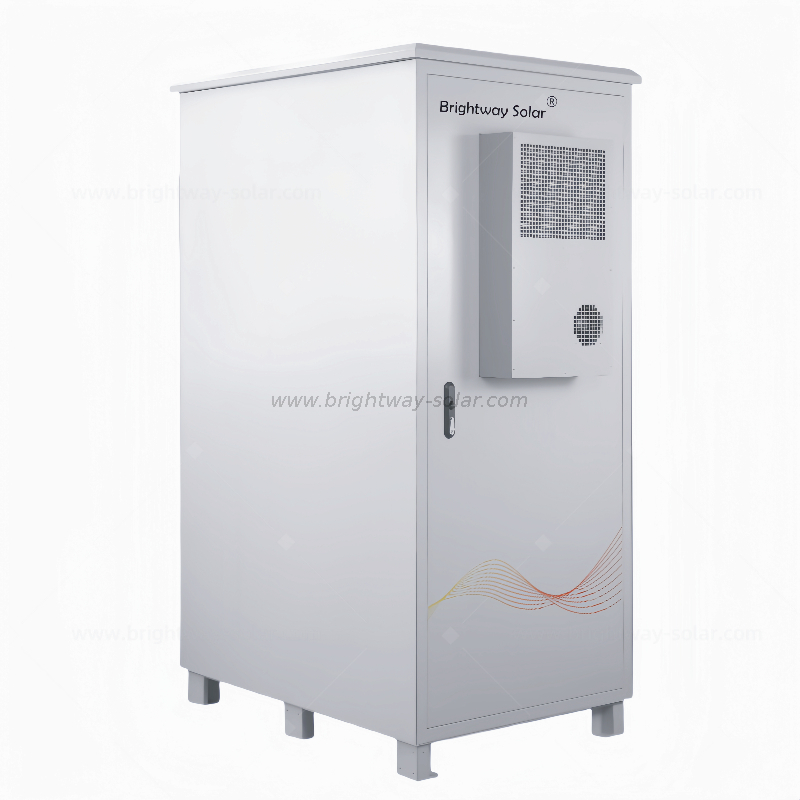

BWS53BL-LFP
Brightway Solar
The Air Cooled Energy Storage System revolutionizes energy storage with its efficient air-cooled design. This innovative solution ensures optimal operating temperatures through effective heat dissipation, enhancing system performance and durability. Ideal for grid balancing, renewable energy integration, and backup power applications, it offers a cost-effective and sustainable solution. The air-cooled technology reduces maintenance requirements, extending the system's lifespan while maintaining its reliability. With its advanced capabilities, the Air Cooled Energy Storage System is poised to transform the energy storage landscape, providing a dependable and environmentally friendly option for meeting energy needs.
Technical Specifications
| Model | BWS53BL-LFP |
| Performance | |
| Battery type | Lithium-iron phosphate (LiFePO4) |
| Nominal battery energy(KWH) | 53.248KHW |
| Nominal capacity(AH) | 130AH |
| Nominal voltage(V) | 409.6 |
| Operating voltage Range(V) | 345.5V～473.6V |
| Moudules number | 8 |
| Standard charging current(A) | 30A @ 25°C |
| Max. constant charging current(A) | 100A @ 25°C |
| Standard discharging current(A) | 30A @ 25°C |
| Max. constant discharging current(A) | 100A @ 25°C |
| Cell technology | BYD Blade Lithium-iron phosphate (LiFePO4) |
| Depth of discharge(DOD) | 80% |
| Design life | ＞5000 times @80%DOD |
| Warranty | 5 years |
| Warranty Document Supplied | Yes |
| Compatible hybrid inverters | 30/50KW/100KW C&I Energy storage inverters |
| Protection function | |
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function |
| Communication | |
| Communication | CAN/RS485 |
| General Specification | |
| Dimension (L*W*H)(MM) | 1650*1000*2050 |
| Weight(KG) | Customization |
| Cabinet color | White |
| Fire extinguishing system | support |
| Air conditioner system | support |
| Working temperature range | -30℃~+55℃ |
| Shipping state voltage(V) | 3.20~3.30V/CELL |
| state of charge SOC | 20%~30% |
| Charging temperature | 0~+55℃(32°F-131°F) |
| Discharging temperature | -30~+60℃ (-22°F-140°F) |
| Short term storage ambient temperature | -20~+35℃(<3 months, SOC: 20%~60%) |
| Long term storage ambient temperature | -20 ~+30℃(<1 year, SOC: 30%~60%) |
| Max. operating altitude | 4,000m(Derating above 2,000m) |
| Protection degree | IP54 |
| Relative humidity | 5%-95% |
| Battery cooling way | Air conditioning cooling |
| Noise emission | <29 dB |
| Certification | TUV/CE/IEC/UN38.3/UL1973 |
