BW-CPS-03 for Carport
Brightway Solar
The production of a carport involves a meticulous process that ensures both quality and durability. Starting with the careful selection and preparation of raw materials, each step is executed with precision. Precision laser cutting ensures accurate dimensions, while accurate drilling prepares the components for assembly. Electric arc welding joins the parts securely, followed by surface polishing to achieve a sleek finish. To protect against corrosion, hot-dip galvanizing is applied, and finally, an electrostatic spraying technique is used for a long-lasting and attractive finish.
Technical Specifications
| Solar Bracket Parameter | |
| Type | BW-CPS-03 for Carport |
| Material of frame | ≥1.5mm Aluminium profile |

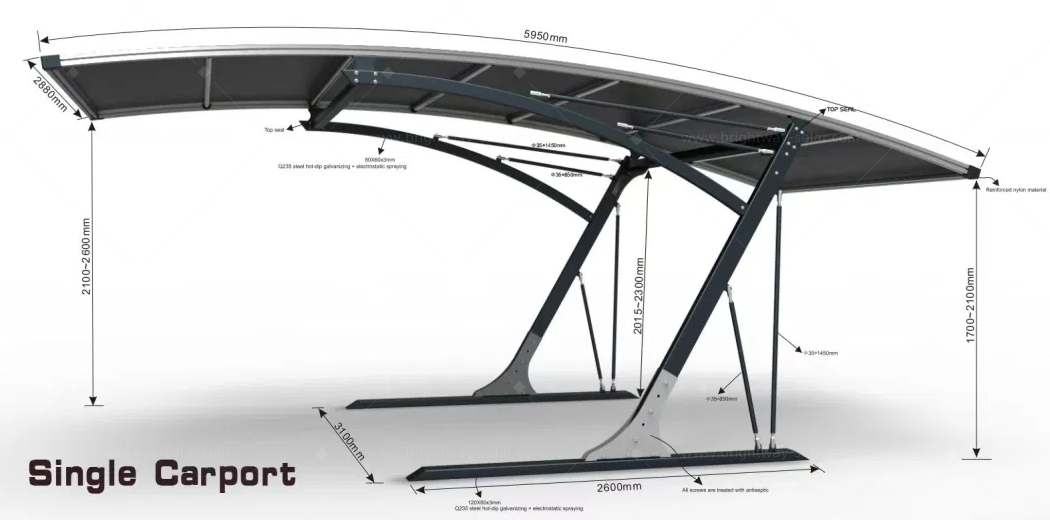

| Standard size of carport | 3100*5950mm |
| Packing size of carport | 2920*560*420mm |
| Gross weight of carport | 345kg |
| The front height of carport | 2.1~2.6m |
| The back height of carport | 1.7~2.1m |
| Bracket | Hot dip galvansied Customizable |
| Membrane | Tensioned Membrane structure with PVDF coating at surface |
| Thickness of the PVDF membrane | 0.85mm |
| Weight of the PVDF membrane | 1050g/m² |
| Thickness of the steel tube | 3.0mm |
| Thickness of foundation | 10mm |
| Warranty | 12 years warranty;25 years service life |
