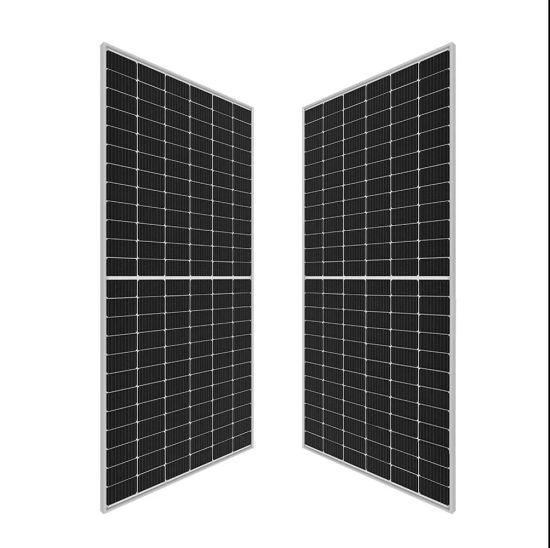

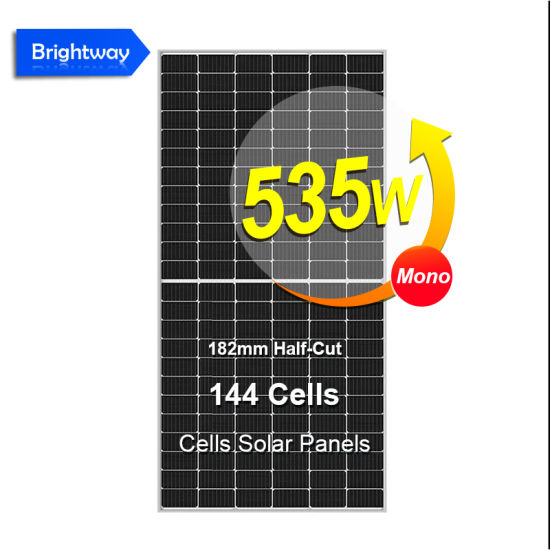

Mono 182mm Half-Cut Cells Solar Panels-144 Cells 535W

Availability:

Quantity:



Inquire Add to Basket

Product Description

MONO 182MM HALF-CUT CELLS SOLAR PANELS - 144 CELLS 535W

Product Description

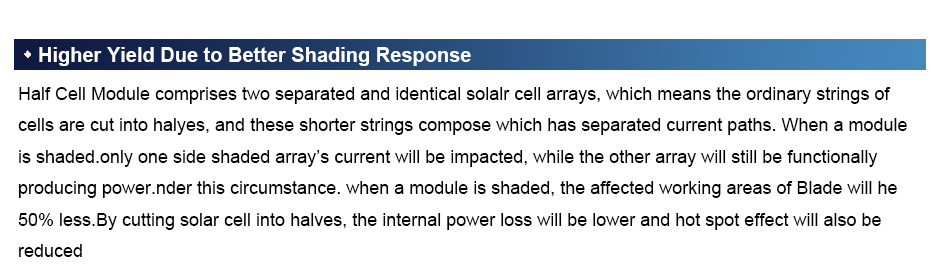

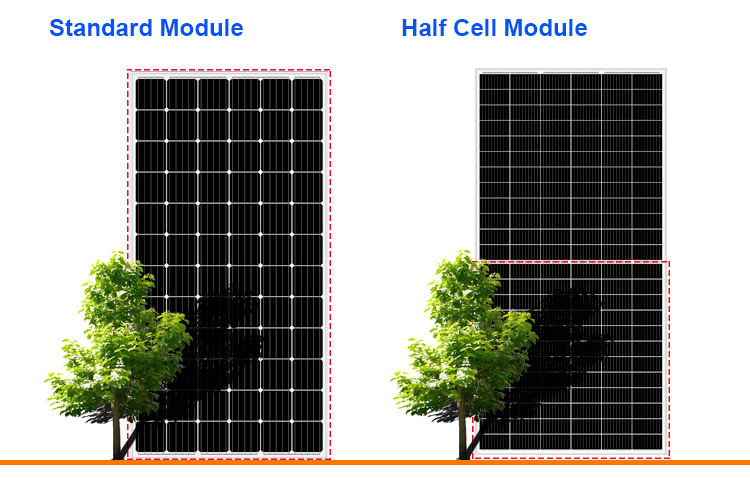

Assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk

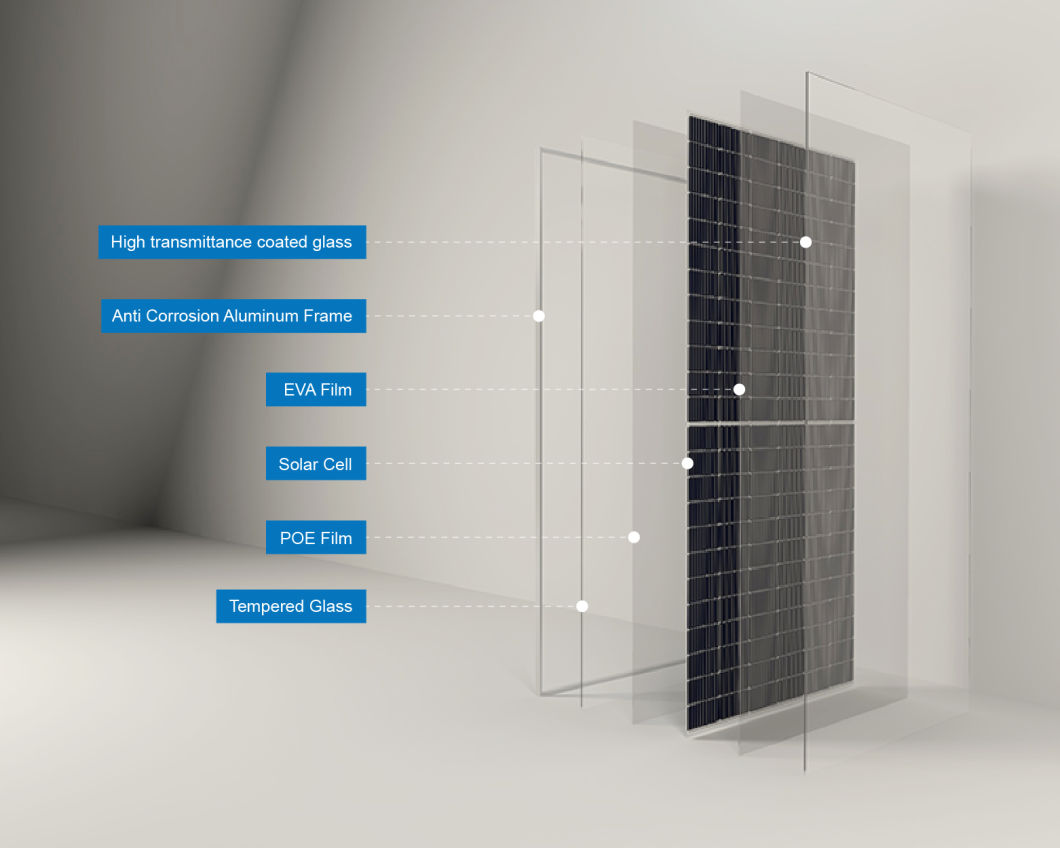

BWGP series modules consist of mono-crystalline efficient/high efficiency silicon cells.which are individually characterized and electronically matched before interconnection and laminated with toughened glass,EVA&Backsheet of high quality.After assembled with anodized aluminum alloy frame, cable and junction box with MC4 connectors,G&P solar folding modules can be carried everywhere easily and work for a long period At the same time.they can withstand the storm.strong wind and hail impact.etc.

Quick Details

Model Number:Half-cut cells module 535W
Material:Monocrystalline Silicon
Max. Power:535Wp
Size:2279*1134*35mm
Module Efficiency:20%-21%
Junction Box:≥IP68 waterproof
Color:black and silver

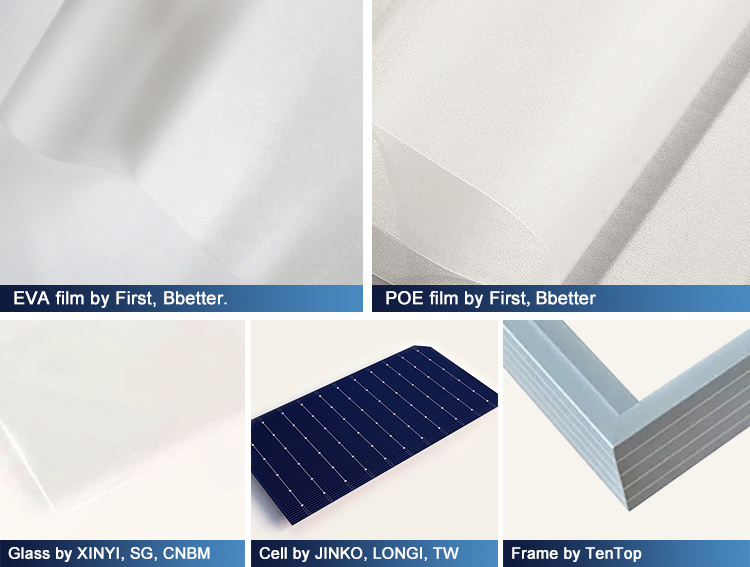

Solar Cell:Grade A Mono perc half-cut cell 182*91mm
EVA:Anti-aging & high visosity EVA °ree of crosslinking above 85%
Glass:3.2mm High transmission rate and low iron tempered glass
Back Sheet:high frame resistant & Double-sided fluorine TPT

Module	BRI 530~550 M10-144HB
Rated Power-Pm (W)	530	535	540	545	550
open-circuit Voltage-Voc(V)	49.30	49.45	49.60	49.75	49.90
short-circuit Current-Isc(A)	13.72	13.79	13.86	13.93	14.00
Working Voltage-Vmp(V)	41.31	41.47	41.64	41.80	41.96
Working Current-Imp(A)	12.83	12.90	12.97	13.04	13.11
Module Efficiency (%)	20.5	20.7	20.9	21.1	21.3

Grade A material

Mono 182mm Half-Cut Cells Solar Panels-144 Cells 535W

RFQ

Q: We like to buy your panels, cause the price is good, but the price is not most important, I don't like to buy the trash, how do I know your solar panel have a good quality, everybody say they are A grade panels, how I can trust you?

A:Firstly, we make new panels not stock panel, we will providing the flash test report,Series number, Power rates , voltage, current all mentioned on the test report for individual solar panel, The stock panel have no any database. You don't know if they are defective or broken panels. But its not enough. Please ask Brightway provide the test photo and EL photo for each panel.

Q:I am also worry about my payment safe, How can you guarantee me 100% payment security?

A: If you do worry about the payment safety so either I, lets do "Trade Assurance Payment" for both safety

Q:How do you comply with your warranty terms if the solar products broken or defective?

A: It's a hard question to answer. After all, we are not a big company like Trina or Jinko , so we buy the quality insurance, After 10th October 2018, you buy the panels from BRIGHTWAY, bar code number from BWGP20181010 ‐ BWGP20191010 , if there is any problem, in the case of my company does not undertake, can take a loss by insurance company, however, we believe our quality, and I believe if any quality problem, you can get the refund from our company directly.

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied within 24 hours.
