BWGPT445W(108)
Brightway Solar

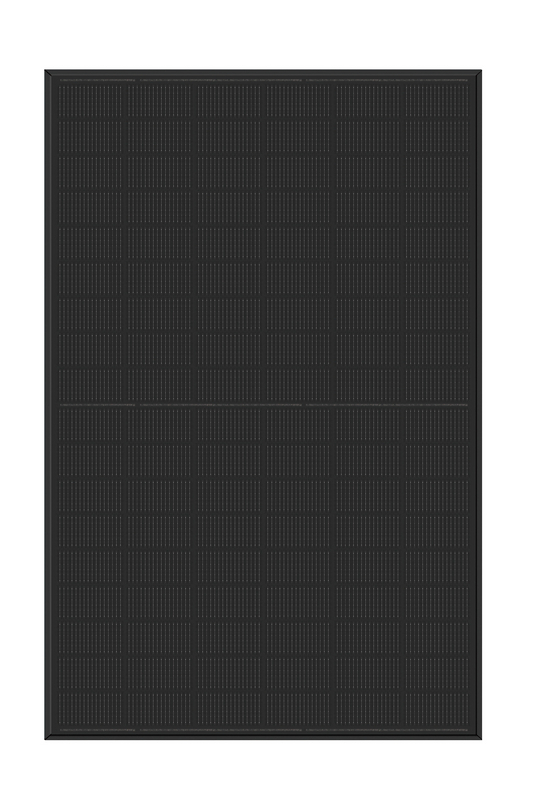

Introducing the BWGPT445W(108) solar module, a high-performance addition to your renewable energy system. Boasting a maximum power output of 445Wp under standard test conditions (STC), this module ensures reliable energy generation. With a maximum power voltage of 31.97V and current of 13.92A, it delivers efficient power conversion. The open-circuit voltage of 38.03V and short-circuit current of 14.67A demonstrate its robust design. Achieving a module efficiency of 21.76% at STC, it's a top choice for residential and commercial applications. Perfect for a wide range of operating temperatures, the BWGPT445W(108) is a reliable and efficient solar solution.
| Module Type | BWGPT445W(108) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 445Wp | 331.5Wp |
| Maximum Power Voltage (Vmp) | 31.97V | 29.59V |
| Maximum Power Current (lmp) | 13.92A | 11.21A |
| Open-circuit Voltage (Voc) | 38.03V | 35.64V |
| Short-circuit Current (lsc) | 14.67A | 11.21A |
| Module Efficiency STC (%) | 21.76% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 25A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/C | |
| Temperature coefficients of Voc | -0.25%/°C | |
| Temperature coefficients of Isc | 0.045%/°C | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
Introducing the BWGPT445W(108) solar module, a high-performance addition to your renewable energy system. Boasting a maximum power output of 445Wp under standard test conditions (STC), this module ensures reliable energy generation. With a maximum power voltage of 31.97V and current of 13.92A, it delivers efficient power conversion. The open-circuit voltage of 38.03V and short-circuit current of 14.67A demonstrate its robust design. Achieving a module efficiency of 21.76% at STC, it's a top choice for residential and commercial applications. Perfect for a wide range of operating temperatures, the BWGPT445W(108) is a reliable and efficient solar solution.
| Module Type | BWGPT445W(108) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 445Wp | 331.5Wp |
| Maximum Power Voltage (Vmp) | 31.97V | 29.59V |
| Maximum Power Current (lmp) | 13.92A | 11.21A |
| Open-circuit Voltage (Voc) | 38.03V | 35.64V |
| Short-circuit Current (lsc) | 14.67A | 11.21A |
| Module Efficiency STC (%) | 21.76% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 25A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/C | |
| Temperature coefficients of Voc | -0.25%/°C | |
| Temperature coefficients of Isc | 0.045%/°C | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
