BWSESS40K
Brightway Solar

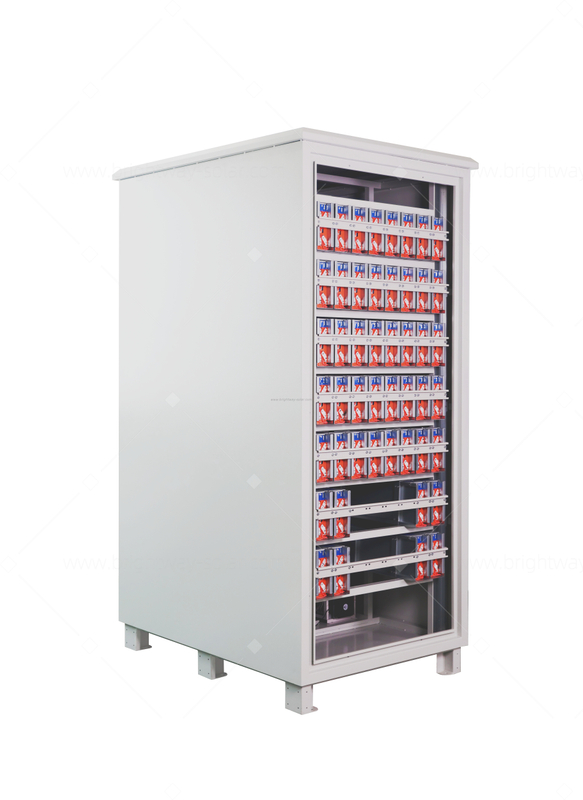

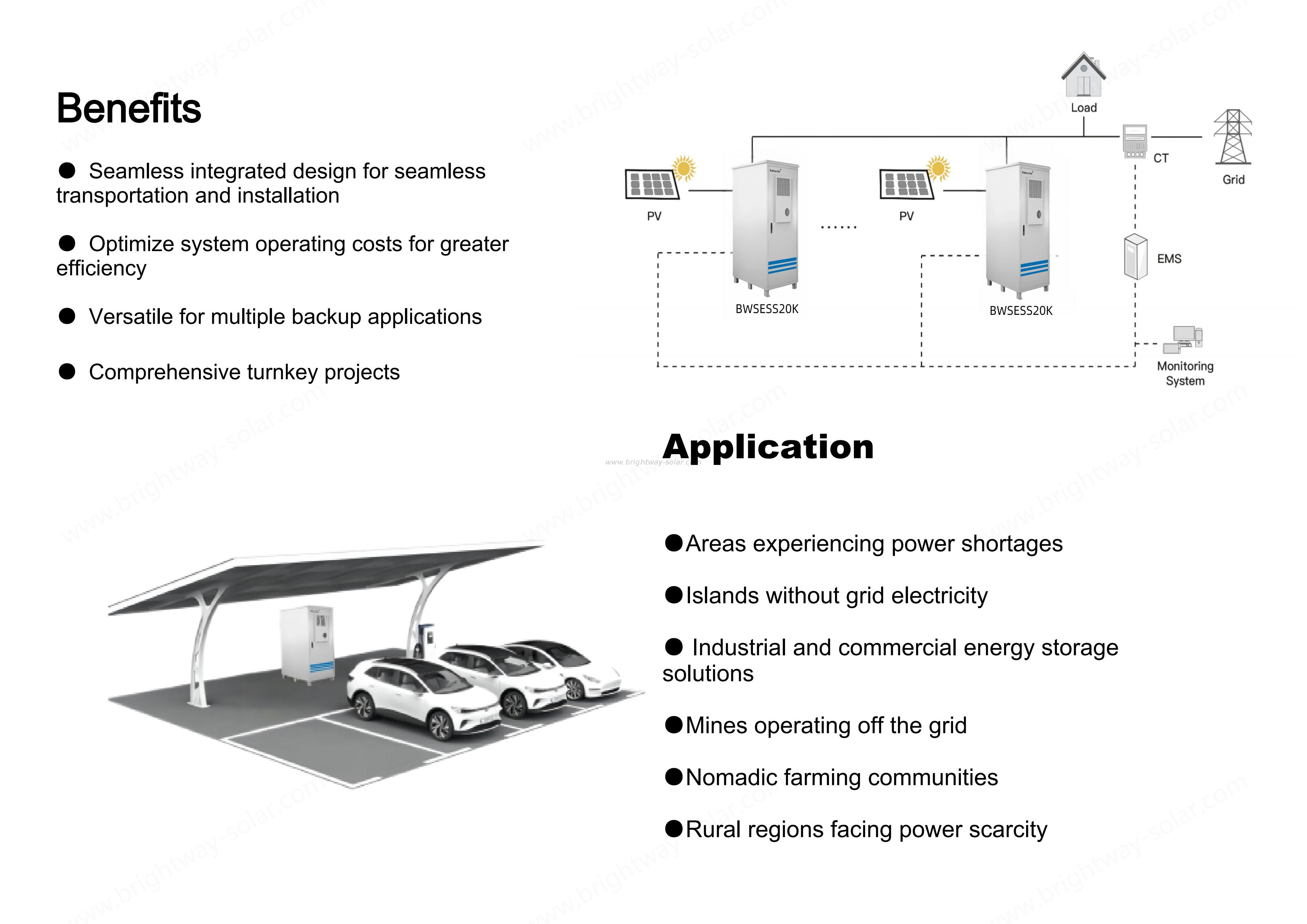

The integrated solution houses photovoltaic (PV) panels, power conversion systems (PCS), and LiFePO4 batteries in a single cabinet, enabling seamless integration and optimization. It supports multiple battery configurations, allowing for scalability and flexibility. The inclusion of an advanced EMS (Energy Management System) ensures intelligent energy management and efficient operation.
With a wide PV input voltage range and battery voltage range, this solution caters to various installation scenarios. It offers both grid-connected charging and discharging capabilities, as well as an off-grid independent inverter function, providing redundancy and reliability in case of power outages.
Designed for simplicity, the solution boasts a compact footprint, enabling flexible layout options and straightforward installation. Its modular construction allows for easy expansion in terms of power and capacity, meeting future energy needs.
Communication capabilities are robust and versatile, enabling real-time data exchange with the battery management system (BMS).
Communication methods such as RS485 and CAN are supported, ensuring seamless integration with various systems and components.
Technical Specifications
| Model | BWSESS40K |
| DC Input | |
| Max. power(KW) | 48KW |
| Max. DC votageM | 1000V |
| MPPT vdtage range(M) | 180V-900V/630V |
| MPPT operaing vallage range at raled power | 400V-900V |
| MPPT tracker/stings | 2/2/2 |
| Max.input current of single MPPT(A) | 36A*3 |
| Shor-circuit current of PV input(A) | 42A/42A/42A |
| AC Output | |
| Rated output power(KW) | 40KW |
| Max. apparent AC power(KVA) | 40KVA |
| Max. output current(A) | 60A |
| Grid voltage/range(V) | 400V,3L+N+PE |
| Frequengy (Hz) | 5060Hz |
| PF | 1(0.8lagging-O.&leading) |
| THDI | 3% |
| Battery | |
| Battery capacity(KWH) | 53KWH-173KWH |
| Battery type | UiFePO4 battery |
| Battery Modue | 51.2V 130AH BYD blade battery modue |
| Number of batlery racks | 1-2 |
| Battery vatage range(M) | 220V~800V |
| Max. input/output vatage(M | 800V |
| Rated charge/discharge current(A) | 100A |
| Max, input/output power(KW) | 40KW |
| EPS Output | |
| Rated output power(KW) | 40KW |
| Max.Apparent AC power(KVA) | 40KVA |
| Max. singke-phase apparent output power | 13KVA |
| Rated output voltage(V) | 400V,3L+N+PE |
| Rated output current(A) | 60A |
| Rated frequency (Hz) | 50Hz/60Hz |
| Automa ic swiching time (ms) | <10ms |
| THDU | <3% |
| Overload capacity | 110%,30S/120%,10S/150%,0.02S |
| Protection Parameters | |
| AC over current protecson | Yes |
| Ground faut detection protecion | Yes |
| Power grid morioning prolection | Yes |
| Residual current detection protedion | Yes |
| General Data | |
| Euro Effikieny | >98.2% |
| Noise Emission (Typical) | <45dB |
| Operation Temperature | -25~+60℃ |
| Relative Humicity | 5~90%(non-condensing) |
| AHiude | 4000m(>2.000 Derating) |
| Dimensions (W/D/H) mm | 1000*1650*2050 |
| Weight(kg) | Customizason |
| Inverier Topology | transformerless |
| Self-Consumpion | <3W |
| Ingress protection | IP54 |
| Fire extinguishing system | Opional |
| Operating temperature | -30℃~55℃ |
| PCS cooing way | Intehigent Fan |
| Battlery codling way | Air condioning cocing |
| Display and Communication | |
| Display | LCD |
| Interface RS485/WFVGPRS | yes /optiopt |
