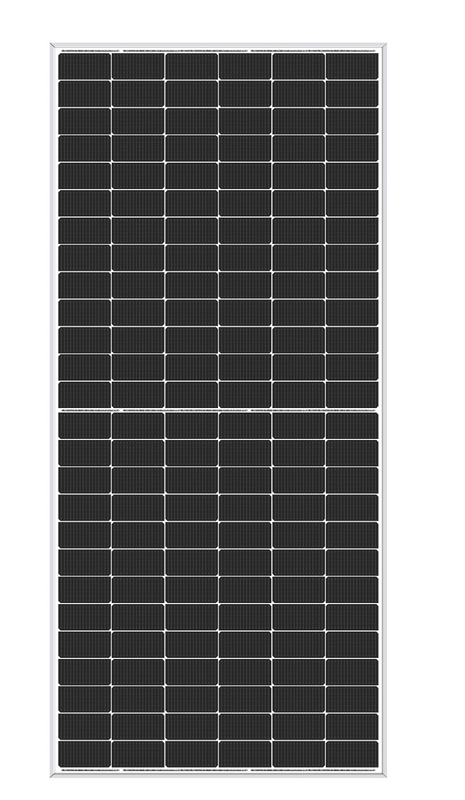

BWGPG575W(144)
Brightway Solar
The BWGPG575W solar module offers 575Wp max power and 22.26% efficiency. With Vmp of 41.67V and Imp of 13.80A, it provides reliable energy production. Ideal for various solar systems.
| Module Type | BWGPG575W(144) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 575Wp | 428.4Wp |
| Maximum Power Voltage (Vmp) | 41.67V | 38.25V |
| Maximum Power Current (lmp) | 13.80A | 11.11A |
| Open-circuit Voltage (Voc) | 50.17V | 47.02V |
| Short-circuit Current (lsc) | 14.47A | 11.65A |
| Module Efficiency STC (%) | 22.26% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 30A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/℃ | |
| Temperature coefficients of Voc | -0.25%/℃ | |
| Temperature coefficients of Isc | 0.045%/℃ | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
