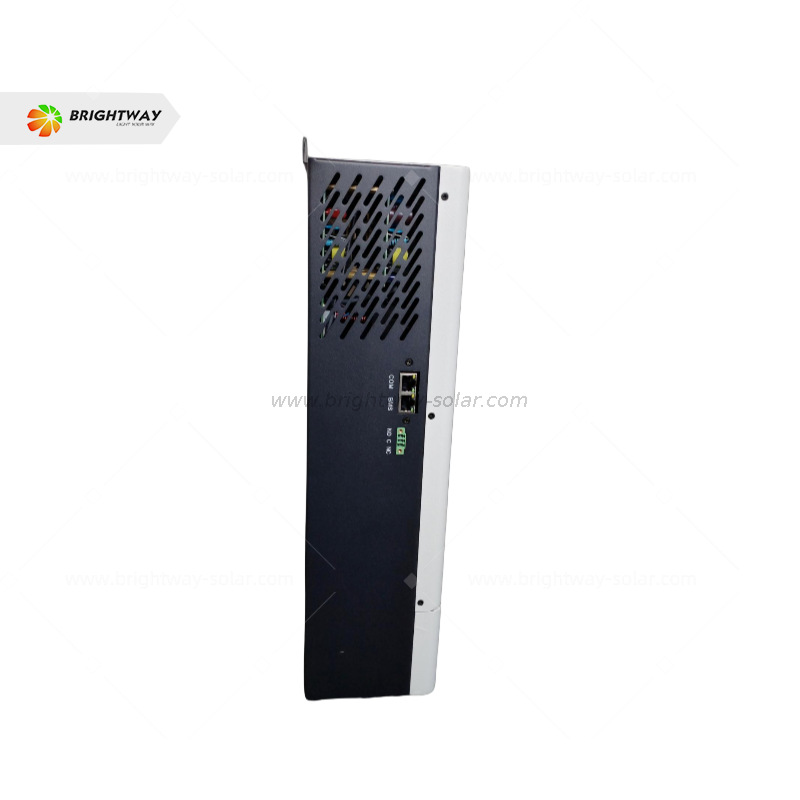

BW3548VMII
Brightway

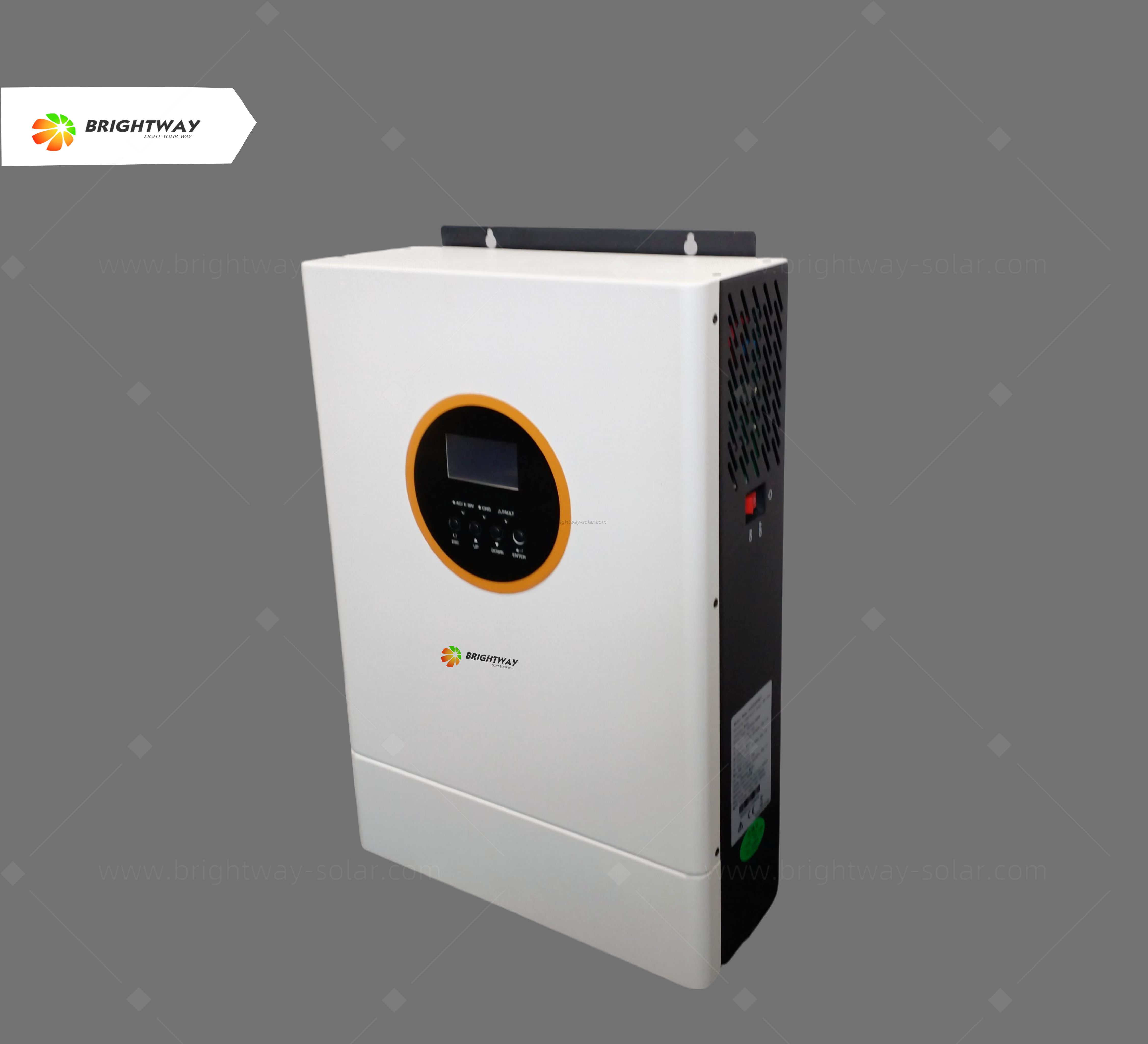

This is a multifunctional inverter/charger, which combines the functions of inverter, MPPT solar charger and battery charger to provide power supply for electrical equipment, lights and small appliances. It is easy to transport.
It adopts advanced SPWM technology, produces a pure sine wave, and converts DC into AC.
It is suitable for AC loads such as household appliances, electric tools, industrial equipment, electronic video and audio equipment.
It uses an LCD display, which shows the machine's running status. It ensures that the system works safely and stably.
Technical Specifications
| Model | BW3548VMII | |
| Rated power | 3.5KW | |
| Parallel capability | 48VDC | |
| AC Output | Voltage(Battery mode) | single phase220VAC/230VAC/240VAC;can be set,+5% |
| Conversion efficiency( peak) | 93% | |
| Switchover time | 10ms (PC); 20ms(Home) | |
| wave | Pure sine wave | |
| Battery Input | Battery voltage | 48VDC |
| Float voltage | 54VDC | |
| Overvoltage protection | 63VDC | |
| Solar Charger | Max. input power | 4KW |
| MPPT voltage range | 120~450VDC | |
| Max. input voltage | 320VDC/500VDC | |
| Max. input/charge current | 18A/80A | |
| AC Charger | AC input voltage | 230VAC |
| Voltage range | 90~280VAC(Home appliance)/170~280VAC(PC) | |
| Frequency range | 50 Hz/60 Hz (Adaptive) | |
| Max. charge current | 40A/80A | |
| General Data | Weight | 9.5kg |
| Communication interface | RS485 | |
| Appearance | With LCD screen | |
| Operating Environment | Operating temperature | -25°C~+55°C |
| Storage temperature | -25°C~+60°C | |
| Humidity | 5%~95%Relative humidity (non condensing) | |
| Protection level | IP20 | |
