5kw Solar-Diesel Generation Hybrid Grid-Tied Power System


Specifications & Configurations

5kw Solar-Diesel Generation Hybrid Grid-Tied Power System

System introduction:

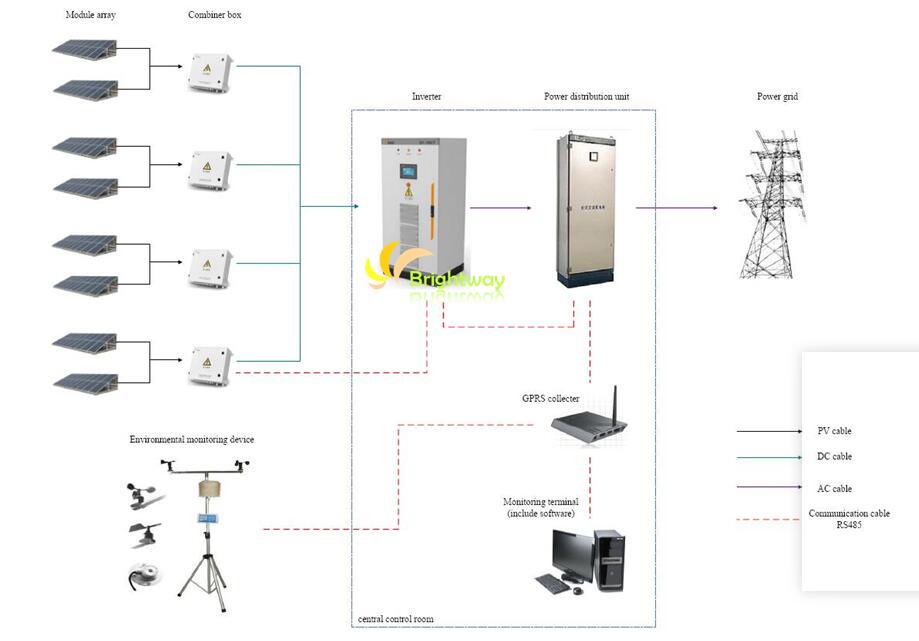

The system is powered by solar energy and charged by the battery in sunny weather. In case of continuous rainy weather and the battery has reached the maximum discharge depth, the oil machine will start up automatically to provide power supply.The light oil complementarity reduces the dependence of the system on weather and greatly improves the reliability of the system.The system is mainly composed of solar cell phalanx, photovoltaic controller, oil machine, high-frequency switching power supply rectifier cabinet, ac and dc power distribution cabinet and battery.

5kW Solar-diesel power system configuration
Parts Function Model
Diesel Generator Generate electricity from diesel generator 5kVA
Solar Panel Use solar energy to generate electricity 5kWp
Power Distribution Cabinet AC output, connected to the grid
Combiner Box Confluence of multiple string modules 4/1

System Configuration

Components Type Qty. Remark
Solar Panel 280W Poly-silicon 18 pcs 1956*992*40mm*18, (486Kg)
Combiner Box 9 in 1 out, 48 Vdc 1 pcs
Power Box Inverter 5kW@48V 1 pcs Weight 150Kg
Size 1600*600*600mm
Battery Charger 3kVA 1 pcs
100A@48V, Solar Charge Controller 1 pcs
Mounting Rack 2 row*9 or 3 row*6 1 set Including accessories
Cable Many types 1 set DC, AC, ELV cable
Accessories Clamp, Connector, etc 1 set For installation
Diesel generator 5~8KVA, auto-start 1 set Optional part
Power Board 220V, 30A 1 pcs Optional part


Q1: What are differences among grid-tied, off grid and hybrid solar power system?

A1: Grid-tied system works based on the national grid. If there is without the national utility, the system can not word.
Off grid system can word without the national grid, but if there is national grid, which can be a back up power for the off grid system
Hybrid system, which combine the function of grid-tied and off grid. All in all, it's a grid-tied system, but can also store the power in the battery.

Q2: How about the leading time?

A2: After receiving deposit, 20-30 days.

Q3: How many years of warranty for the solar system?

A3: For the each of accessories, the warranties are different. Solar panel has 10- years linear output warranty and 25years life span. Contorller, inverter and battery has 5-10years warranty years warranty.bracket has 10 years warranty.

Q4: How to design a suitable solar power system?

A4: Just contact our sales engineer, who will design the full set of solution for you based on your really needs with the most competitive cost.

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied within 24 hours.
