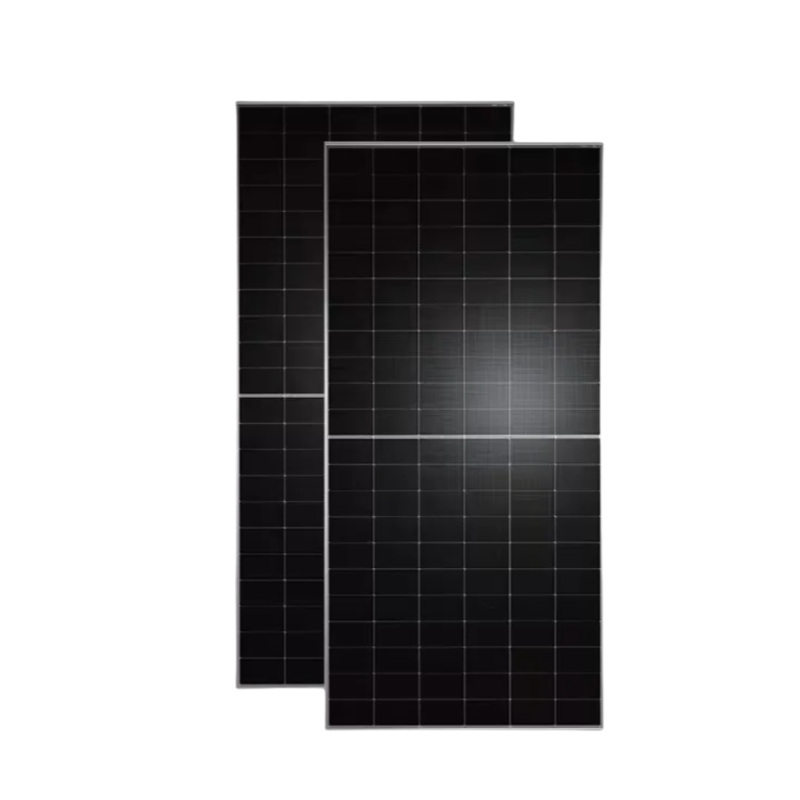

BWGPM605W(132)
Brightway Solar
Equipped with HOT 2.0 Technology, especially designed for N-type modules, it takes reliability to the next level. With reduced LID (Light-Induced Degradation) and LETID (Light- and Elevated Temperature-Induced Degradation), you can count on its long-term and consistent power generation capabilities, minimizing power loss over time.
| Module Type | BWGPM605W(132) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 605 | 450.7 |
| Maximum Power Voltage (Vmp) | 40.5 | 37.48 |
| Maximum Power Current (lmp) | 14.94 | 12.04 |
| Open-circuit Voltage (Voc) | 48.7 | 45.07 |
| Short-circuit Current (lsc) | 15.83 | 12.74 |
| Module Efficiency STC (%) | 22.38% | |
| Operational Temperature(℃） | -40~+85°C | |
| MaximumSystemVoltage | 1500VDC | |
| Max Series Fuse Rating | 30A | |
| Power tolerance | 0~+3% | |
| Wind/Snow Load | 2400Pa/5400Pa | |
| Temperature coefficients of Voc | -0.230%/℃ | |
| Temperature coefficients of Isc | +0.045%/℃ | |
| Temperature Coefcient of Pmax | -0.280%/℃ | |
