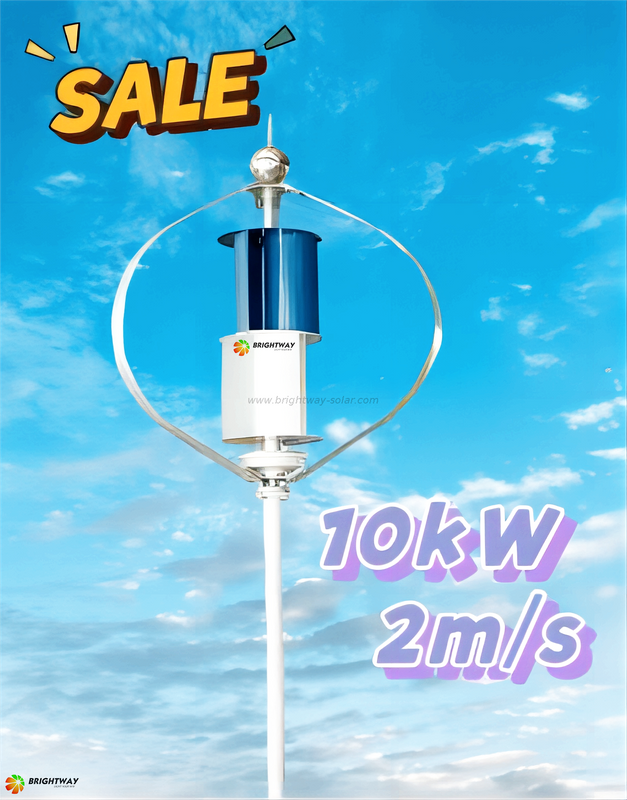

BWSH-QH10K
Brightway
Advantages of wind energy
The permanent magnet suspension principle is utilized to suspend the wind wheel and eliminate the bearing capacity of the fixed bearing, which effectively reduces the fan torque, the start-up wind speed and cut-in wind speed, and improves the overall power generation efficiency.
Technical specifications and parameters
| Model | BWSH-QH5000 |
| Rated power | 5kW |
| Nominal voltage | 96/220/380v/customized |
| Blade quantity | 3piece |
| Diameter of wind wheel | 4m |
| Impeller height | 4m |
| Electronic unloading | 10kW |
| Brake resistance box | |
| Rated speed | 200RPM |
| Start-up wind speed | 2.3m/s |
| Rated wind speed | 10m/s |
| Extreme wind | 45m/s |
| Wind turbine type | Vertical axis wind turbine |
| Braking system | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic brake | Active brake, electric brake |
| Controller unit | PLC |
| Interface | HMI |
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation class | H |
| Blade material | aluminum alloy |
| Design level | IEC Class Ⅲ |
| Tower type | Independent pole |
| Outhentication | CE；IOS |
| Noise | 35FB |
| Noise level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | ≤2000m |
| Degree of protection | IP54 |
| Design life | 20 Years |
