Brightway Solar 182MM 105MM Bifacial 132 Cells PV Module for Solar Energy System

Brightway Solar 620W bifacial module 132 cells for homes and commerce

Share to:

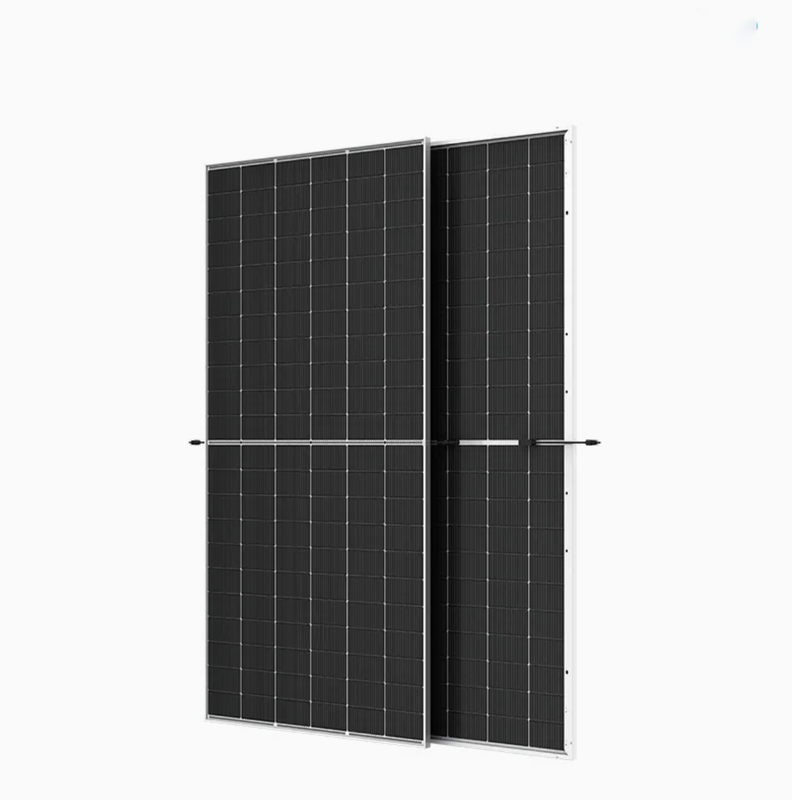

Brightway Solar 625W 182MM 105MM Bifacial 132 Cells PV Module for Solar Energy System

Name: Brightway Solar 625W 182MM 105MM Bifacial 132 Cells PV Module for Solar Energy System
Brand: Brightway Solar
Rating: 5.0 (49 reviews)

The BWGPM625W(132) solar module boasts 620W max power, 22.93% efficiency, and robust -40°C to +85°C temp range. Ideal for large installations with 1500VDC system voltage and 30A fuse protection.

Availability:

Quantity:



Inquire Add to Basket

Model:
BWGPM625W(132)
Brand:
Brightway Solar

Product Description

BWGPM12RT-625W（132）-2

Function Characteristics

The BWGPM625W(132) solar module offers impressive power output of 620W and efficiency of 22.93%, making it an excellent choice for large-scale solar installations. Its robust design ensures reliable performance in extreme weather conditions, with a temperature range of -40°C to +85°C. The module's 1500VDC system voltage and 30A fuse protection provide added safety and flexibility for your solar energy needs.

Technical Specifications

Module Type	BWGPM625W(132)
	STC	NOCT
Maximum Power (Pmax)	620	461.9
Maximum Power Voltage (Vmp)	41.4	38.31
Maximum Power Current (lmp)	14.98	12.06
Open-circuit Voltage (Voc)	49.6	45.9
Short-circuit Current (lsc)	15.91	12.81
Module Efficiency STC (%)	23.12%
Operational Temperature(℃）	-40~+85°C
MaximumSystemVoltage	1500VDC
Max Series Fuse Rating	30A
Power tolerance	0~+3%
Wind/Snow Load	2400Pa/5400Pa
Temperature coefficients of Voc	-0.230%/℃
Temperature coefficients of Isc	+0.045%/℃
Temperature Coefcient of Pmax	-0.280%/℃
