BWGPG590W(144)
Brightway Solar

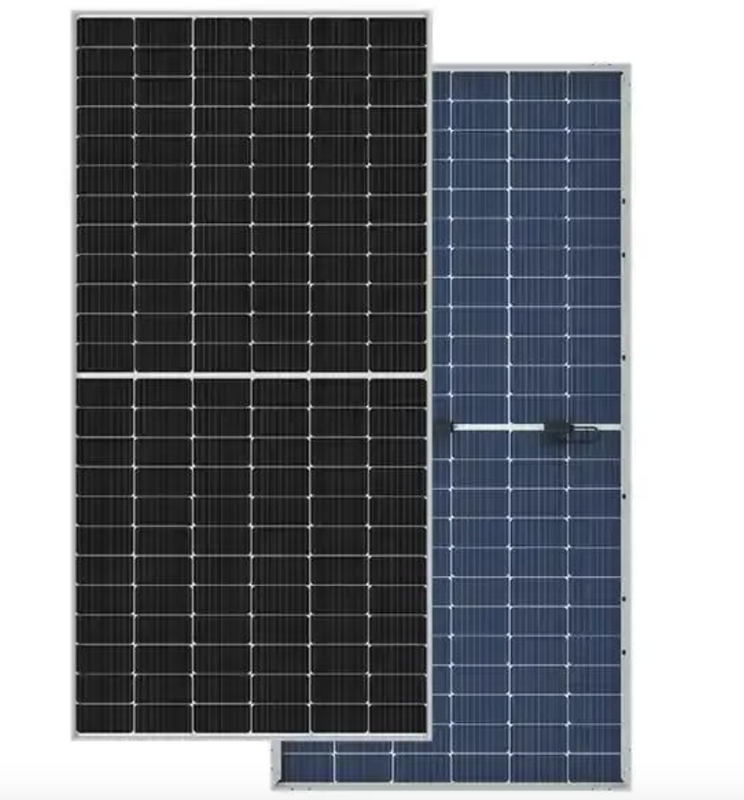

The BWGPG590W solar module is designed for exceptional performance. With a maximum power of 590Wp and an efficiency of 22.84% under STC, it boasts a high voltage and current output. Its open-circuit voltage and short-circuit current ensure stable and reliable operation, making it a top choice for solar energy systems.
Module Type | BWGPG590W(144) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 590Wp | 439.6Wp |
| Maximum Power Voltage (Vmp) | 42.06V | 38.93V |
| Maximum Power Current (lmp) | 14.03A | 11.29A |
| Open-circuit Voltage (Voc) | 50.56V | 47.39V |
| Short-circuit Current (lsc) | 14.70A | 11.83A |
| Module Efficiency STC (%) | 22.84% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 30A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/℃ | |
| Temperature coefficients of Voc | -0.25%/℃ | |
| Temperature coefficients of Isc | 0.045%/℃ | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
