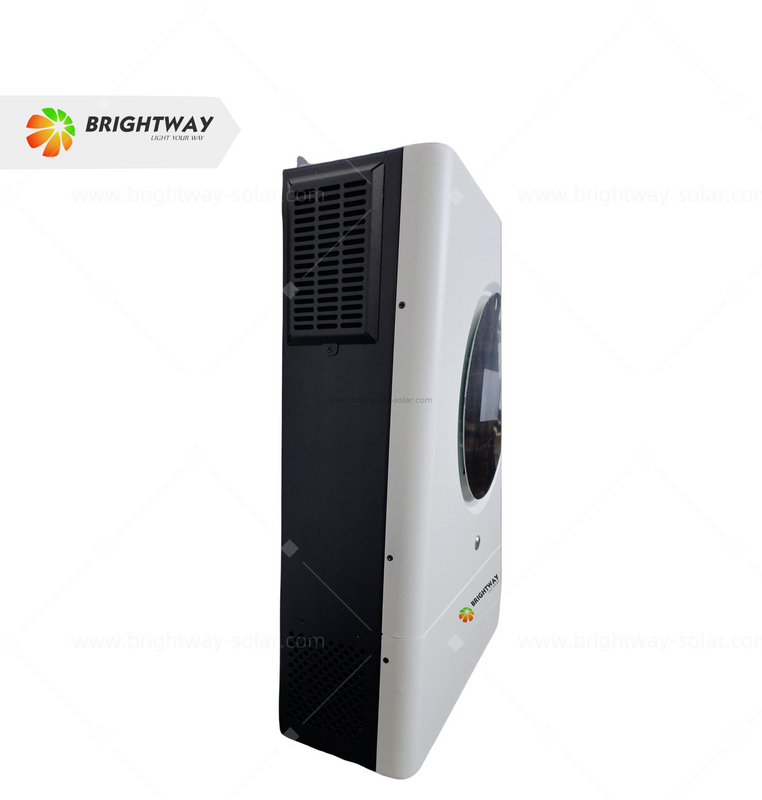

BW11048MAXII
Brightway
Pure sine wave output inverter
1.according to the load requirements, the battery charging current can be set through LCD
2. the priority input mode of mains / solar energy can be set through the LCD
3. compatible with mains power and generator input
4. automatic restart function when mains power is restored
5.overload, high temperature and short circuit protection
6. intelligent battery charging design makes the battery more fully utilized
7. cold start function
Technical Specifications
| Model | BW11048MAXII | |
| Rated power | 11KVA/11KW | |
| Parallel capability | Max. 6 units | |
| AC Output | Voltage(Battery mode) | single phase 230Vac，±5% |
| Conversion efficiency( peak) | 93% | |
| Switchover time | 10ms (PC); 20ms(Home) | |
| wave | Pure sine wave | |
| Battery Input | Battery voltage | 48VDC |
| Float voltage | 54VDC | |
| Overvoltage protection | 66VDC | |
| Solar Charger | Max. input power | 11KW(5.5KW*2) |
| MPPT voltage range | 90~450VDC | |
| Max. input voltage | 500VDC | |
| Max. input/charge current | 18A*2/150A | |
| AC Charger | AC input voltage | 230VAC |
| Voltage range | 90~280VAC(Home )/170~280VAC(PC) | |
| Frequency range | 50 Hz/60 Hz (Adaptive) | |
| Max. charge current | 150A | |
| General Data | Weight | 21 |
| Communication interface | RS485/CAN/Dry contact | |
| Appearance | With LCD screen | |
| Operating Environment | Operating temperature | -20°C~+55°C |
| Storage temperature | -30°C~+70°C | |
| Humidity | 5%~95%Relative humidity (non condensing) | |
| Protection level | IP20 | |
