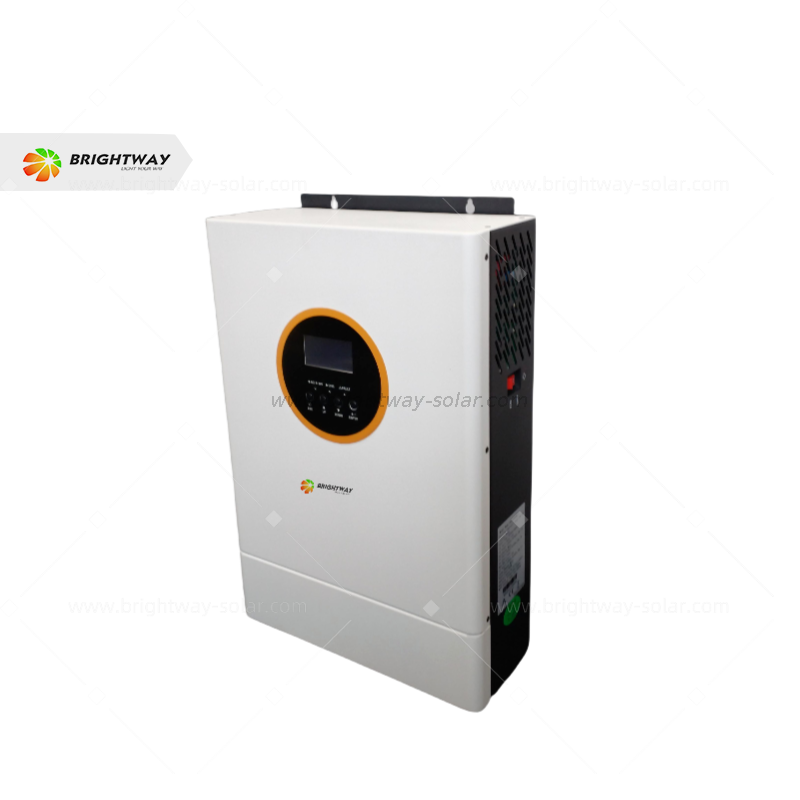

BW5548VMII
Brightway
Technical Specifications
Model | BW5548VMII | |
Rated power | 5.5KW | |
Parallel capability | 48VDC | |
AC Output | Voltage(Battery mode) | single phase220VAC/230VAC/240VAC;can be set,+5% |
Conversion efficiency( peak) | 93% | |
Switchover time | 10ms (PC); 20ms(Home) | |
wave | Pure sine wave | |
Battery Input | Battery voltage | 48VDC |
Float voltage | 54VDC | |
Overvoltage protection | 63VDC | |
Solar Charger | Max. input power | 5.5KW |
MPPT voltage range | 120~450VDC | |
Max. input voltage | 320VDC/500VDC | |
Max. input/charge current | 18A/100A | |
AC Charger | AC input voltage | 230VAC |
Voltage range | 90~280VAC(Home appliance)/170~280VAC(PC) | |
Frequency range | 50 Hz/60 Hz (Adaptive) | |
Max. charge current | 40A/80A | |
General Data | Weight | 9.5kg |
Communication interface | RS485 | |
Appearance | With LCD screen | |
Operating Environment | Operating temperature | -25°C~+55°C |
Storage temperature | -25°C~+60°C | |
Humidity | 5%~95%Relative humidity (non condensing) | |
Protection level | IP20 |
