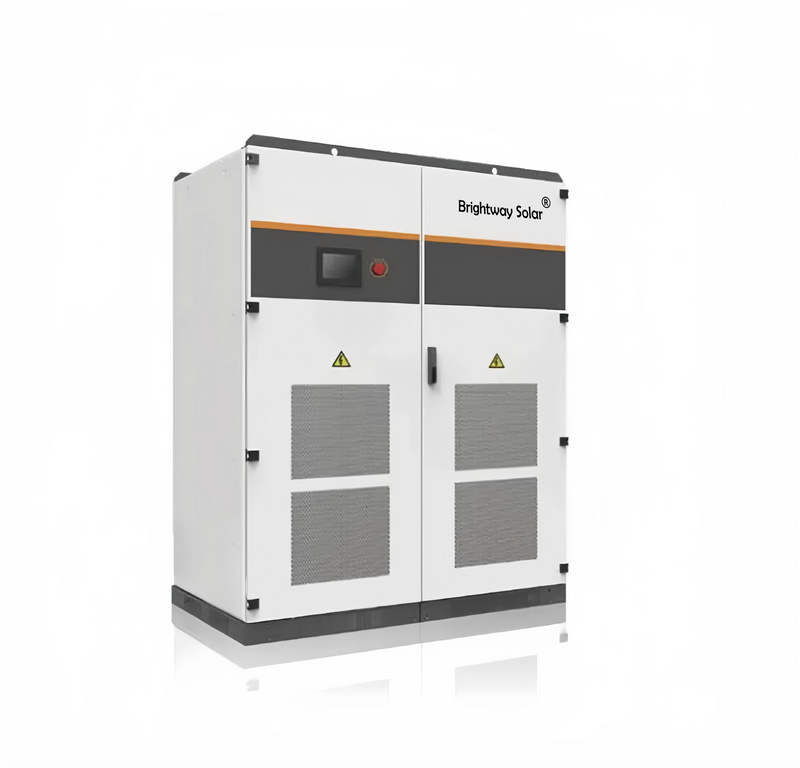

Brightway Solar 500kW Solar Power Generation Equipment of Industrial Energy Storage

Name: Brightway Solar 500kW Solar Power Generation Equipment of Industrial Energy Storage
Brand: Brightway Solar
Rating: 5.0 (31 reviews)

The BWS-500KT-CP inverter is highly efficient at 97.50%, making it an energy-saving choice for industrial facilities. It has a wide DC voltage range from 500V to 850V, ensuring stable power supply even in fluctuating conditions. With a strong output, it can effortlessly handle the demands of large-scale manufacturing plants. Its useful features like advanced protection mechanisms make it suitable for harsh environments. Measuring 1600×1050×2050mm and weighing 2665kg, it's a compact yet powerful solution for various industrial applications, whether it's powering heavy machinery or ensuring seamless operations in data centers.

Availability:

Quantity:



Inquire Add to Basket

Model:
BWS-500KT-CP
Brand:
Brightway Solar

Product Description

Function Characteristics

The BWS-500KT-CP inverter stands as a robust and cutting-edge solution in the power domain. It presents an extensive DC battery voltage range spanning from 500V to 850V, accompanied by a maximum current of 1128A. This wide voltage range enables it to adapt smoothly to different power supply scenarios, ensuring consistent and reliable performance.

The AC on-grid capabilities of this inverter are truly remarkable. It boasts a maximum output power of 550kVA and a rated output power of 500KW, making it capable of meeting the substantial energy demands of large-scale industrial operations or commercial complexes. With an impressive efficiency rate of 97.50%, it significantly contributes to energy conservation and cost reduction.
Moreover, it is equipped with a plethora of essential features such as ingress protection, safeguarding the inverter from external elements and enhancing its durability. This makes it highly suitable for a diverse range of operating conditions, be it in extreme temperatures, high humidity, or dusty environments. Its adaptability and reliability make it an ideal choice for various applications across different industries.

Technical Specifications

Model	BWS-500KT-CP
DC(battery)
Voltage range (V)	500V-850V
Max. Current (A)	1128A
AC(on-grid)
Max output power(kVA)	550kVA
Rate output power(kW)	500KW
Rated voltage(V)	400V
Voltage range(V)	320V-460V
Rated current(A)	722A
Max. output current(A)	794A
Rated frequency (Hz)	50/60Hz
Frequency range (Hz）	45-55/55-65Hz
THDI	<3%
Power factor	1lagging-1leading（Settable）
AC connection	3W+N+PE
AC(off grid)
Rated voltage(V)	400V
THDU	＜1% Linear ＜5% Nonlinear
Rated frequency(Hz)	50/60Hz
Overload capacity	110% long-term
General data
Max.efficiency	97.50%
Ingress protection	IP21
Noise emission(dB)	<70dB
Operating temperature	－30～+55℃
Cooling	Forced air
Relative humidity	0 ~95% non-condensing
Altitude	5,000m(>3,000 Derating)
Dimension WDH (mm)	1600×1050×2050mm
Weight(kg)	2665kg
Transformer ratio	315/400
Self-consumption (W)	<10W
On/ Off grid switching	Automatic
Display and communication
Display	LCD touch-screen
BMS communication	RS485/CAN
EMS communication	RS485，TCP/IP
Certificates	IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC
