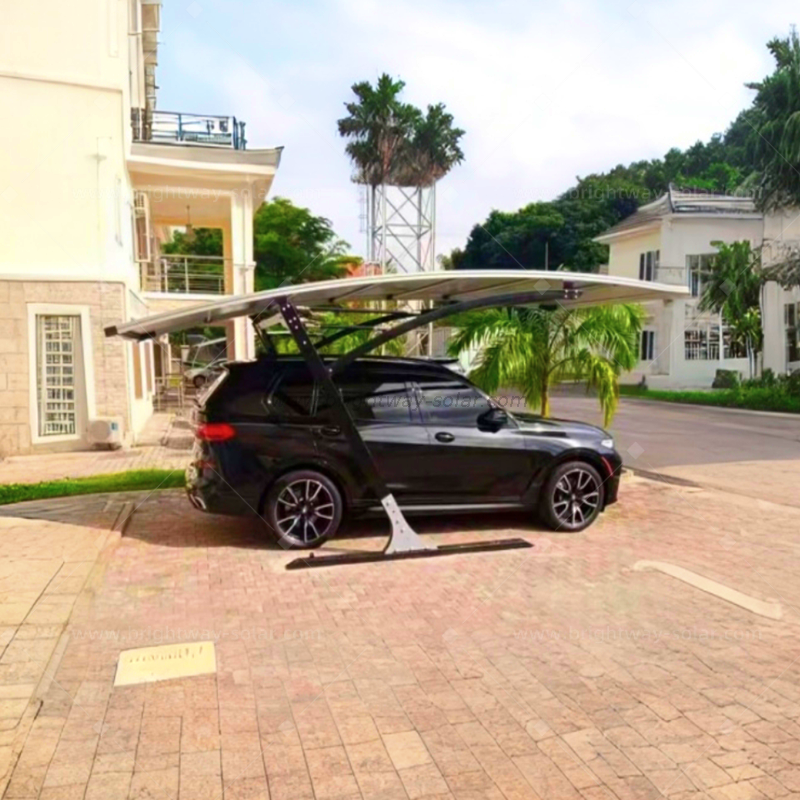

BW-CPS-03 for Solar Carport
Brightway Solar
The roof material is pvdf knife coatine membrane.As I knownormally other company use 950 g/m²,even 550 g/m².We use 1050g/m².0.8mm thickness.My tent frame is made of aluminum,6061-T5,roughly 70kg for the tentIt costs a lot for us production.All my accessories is made of laser cutting,and they wil ensure them more precise and beautiful.The bracket is made of Q235B,and hot dip galvansied with 80 um thickness zinc,the setcrew are all dacromet setcrew.So it could be exposed outside at least 15 years,no rust When treating my product as artwork,we polish them carefully before thermal powder painting.Meanwhile it could stand 36m/s roughly 12 class typhoone if you install as our instructions.Our carport is tested by SGS snow load and wind resistance.Snow load test result:50kg/m² .
Technical Specifications
| Solar Bracket Parameter | |
| Type | BW-CPS-03 for Solar Carport |
| Material of frame | ≥1.5mm Aluminium profile |
| Standard size of carport | 3100*5950mm |
| Packing size of carport | 2920*560*420mm |
| Gross weight of carport | 345kg |
| The front height of carport | 2.1~2.6m |
| The back height of carport | 1.7~2.1m |
| Bracket | Hot dip galvansied Customizable |
| Membrane | Tensioned Membrane structure with PVDF coating at surface |
| Thickness of the PVDF membrane | 0.85mm |
| Weight of the PVDF membrane | 1050g/m² |
| Thickness of the steel tube | 3.0mm |
| Thickness of foundation | 10mm |
| Warranty | 12 years warranty;25 years service life |
| Solar Panel Parameter | |
| Product name | 300W ETFE FLEXIBLE SOLAR PANEL |
| Pmax | 300W |
| Vmp | 25.2V |
| Imp | 11.9A |
| Voc | 30.3V |
| Isc | 12.6A |
| Solar Cell | Monocrystalline silicon |
