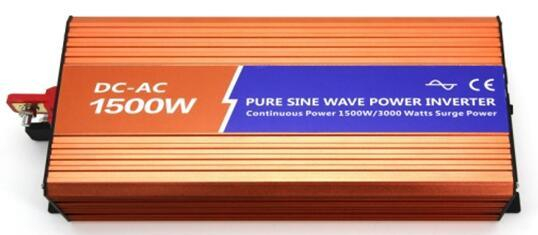

1500W High Frequency Pure Sine Wave Power Solar Inverter


Product features:

1. Advanced intelligent control technology of dual-cpu single chip microcomputer, featuring high reliability and low fault rate;

2. Pure sinusoidal output with strong loading capacity and wide application range;

3. It has complete protection functions (overloading protection, internal over-temperature protection, output short-circuit protection, input under-voltage protection, input over-voltage protection, etc.), which greatly improves the reliability of the product;

4. Small size and light weight. CPU centralized control and patch technology are adopted internally to make the volume very small and light;

5. Intelligent control of the cooling fan, which adopts CPU to control the working state of the cooling fan, greatly extends the service life of the fan, saves power and improves working efficiency;

6. Low noise and high efficiency

Scope of application

1. Vehicle-borne equipment series: ** vehicles, police cars, medical ambulances, ships, traffic lights, etc.;

2. Industrial equipment series: solar energy, wind power generation, gas discharge lamp, etc.

3. Office: computer, printer, copier, scanner, digital camera, etc.

4. Kitchen appliance series: microwave oven, battery oven, refrigerator, etc.

5. Household electrical equipment: electric fans, vacuum cleaners, air conditioners, lighting lamps, etc.;

6. Power tools series: electric saw, drilling machine, punching machine, air compressor, etc.;

Technical indicators

The machine modelB12P1500-1B24P1500-1B48P1500-1B12P1500-2B24P1500-2B48P1500-2
The output power1500W
Peak power3000W
The input voltageDC12VDC24VDC48VDC12VDC24VDC48V
The output voltage100VAC or 110VAC or 120VAC ±5%220VAC or 230VAC or 240VAC ±5%
The no-load current is less than1.2A0.6A0.3A1.2A0.6A0.3A
The output frequency50HZ±0.5HZ or 60HZ±0.5HZ
Output waveformPure sine wave
Waveform distortionTHD<3%
Highest output efficiencyMAX94%
Input voltage range10-15.5V20-31V40-61V10-15.5V20-31V40-61V
Under-voltage alarm10.5±0.5V21±0.5V42±1V10.5±0.5V21±0.5V42±1V
Under voltage protection10±0.5V20±0.5V40±1V10±0.5V20±0.5V40±1V
Over voltage protection15.5±0.5V31±0.5V61±1V15.5±0.5V31±0.5V61±1V
Owe pressure recovery13±0.5V24±0.5V48±1V13±0.5V24±0.5V48±1V
Overpressure recovery14.8V±0.5V29.5V±0.5V59V±1V14.8V±0.5V29.5V±0.5V59V±1V
Protection functionUndervoltage/overvoltageLED red light on, automatic recovery alarm
overloadLED red light on, lock alarm
A temperatureLED red light on, automatic recovery alarm
A short circuitLED red light on, automatic recovery alarm
Input the reverseDiodes or MOS
Working environment temperature.-10°- +50°
Storage environment temperature-30°- +70°
Product size280*169*86
The net weight3.6
Packing size375*211*130
The quality assurance1years
Start theBipolar soft start
coolingAir cooling
