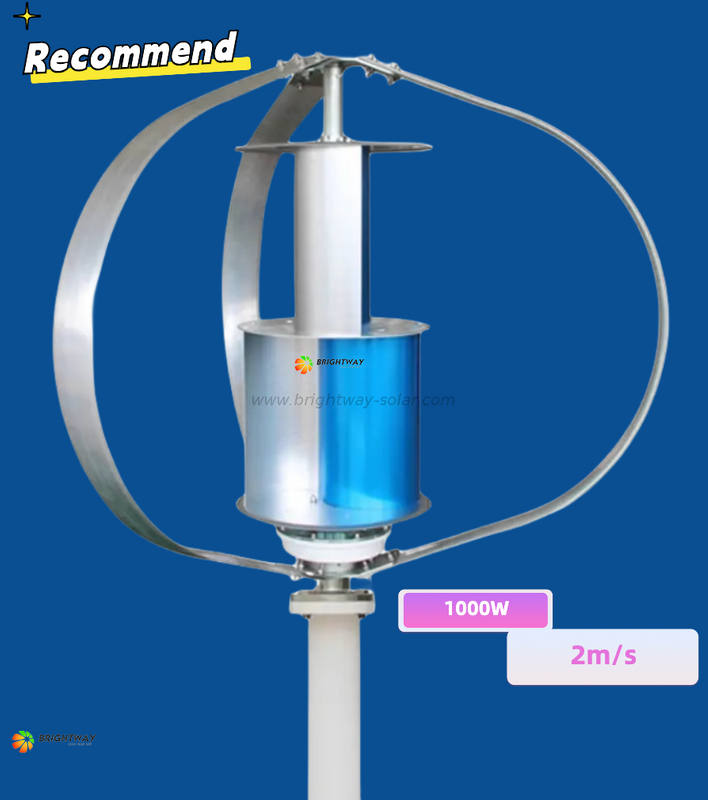

BWSH-QH1000
Brightway
Advantages of wind energy
1.Quality aluminum alloy blades, painted or anodized for strong corrosion resistance.
2.Using stainless steel materials for durability.
3.Patented generator with low torque at start-up and high power conversion efficiency.
4.Rare earth permanent magnet suspended generator with high power and low loss.5.Wind turbine with flange connection for safer and more reliable operation.
Technical specifications and parameters
| Model | BWSH-QH1000 |
| Rated power | 1kW |
| Nominal voltage | 48V/96V/customized |
| Blade quantity | 3piece |
| Diameter of wind wheel | 2m |
| Impeller height | 2 m |
| Electronic unloading | 3kW |
| Brake resistance box | |
| Rated speed | 300RPM |
| Start-up wind speed | 2.3m/s |
| Rated wind speed | 10m/s |
| Extreme wind | 45m/s |
| Wind turbine type | Vertical axis wind turbine |
| Braking system | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic brake | Active brake, electric brake |
| Controller unit | PLC |
| Interface | HMI |
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation class | H |
| Blade material | aluminum alloy |
| Design level | IEC Class Ⅲ |
| Tower type | Independent pole |
| Outhentication | CE；IOS |
| Noise | 35FB |
| Noise level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | ≤2000m |
| Degree of protection | IP54 |
| Design life | 20 Years |
