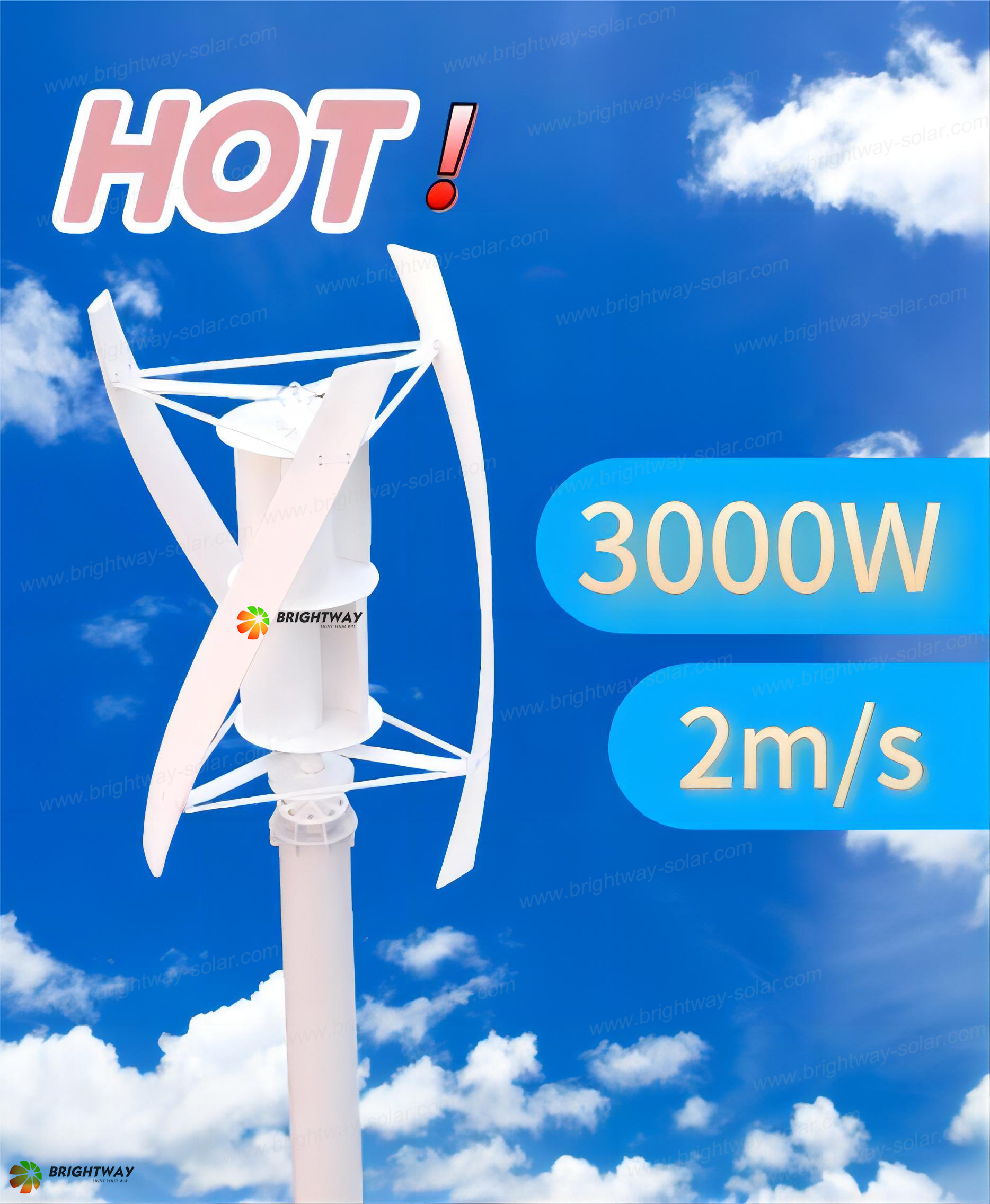

BWSH-XQ3000
Brightway
Advantages of wind energy
1. Low starting wind speed, small volume, beautiful appearance and low operating vibration;
2. Humanized flange installation design is used to facilitate installation and maintenance; High temperature and cold resistance;
3. The wind turbine blade adopts nylon fiber, optimized aerodynamic shape design and structural design, low starting wind speed, and mass production color can be made according to customer requirements.
Technical specifications and parameters
| Model | BWSH-XQ3000 |
| Rated power | 3kW |
| Nominal voltage | 120v/220v/380vac /customized |
| Blade quantity | 3piece |
| Diameter of wind wheel | 2m |
| Impeller height | 3m |
| Electronic unloading | 5kW Brake resistance box |
| Rated speed | 220 RPM |
| Package size (mm) | 550*480*450mm；130kg 3520*530*410mm；150kg |
| Start-up wind speed | 2.3m/s |
| Rated wind speed | 10m/s |
| Extreme wind | 45m/s |
| Wind turbine type | Vertical axis wind turbine |
| braking system | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic brake | Active brake, electric brake |
| Controller unit | PLC |
| Interface | HMI |
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation class | H |
| Blade material | Fiberglass |
| Design level | IEC Class Ⅲ |
| Tower type | Independent pole |
| authentication | CE；IOS |
| Noise | 35FB |
| Noise level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | ≤2000m |
| Degree of protection | IP54 |
| Design life | 20 years |
