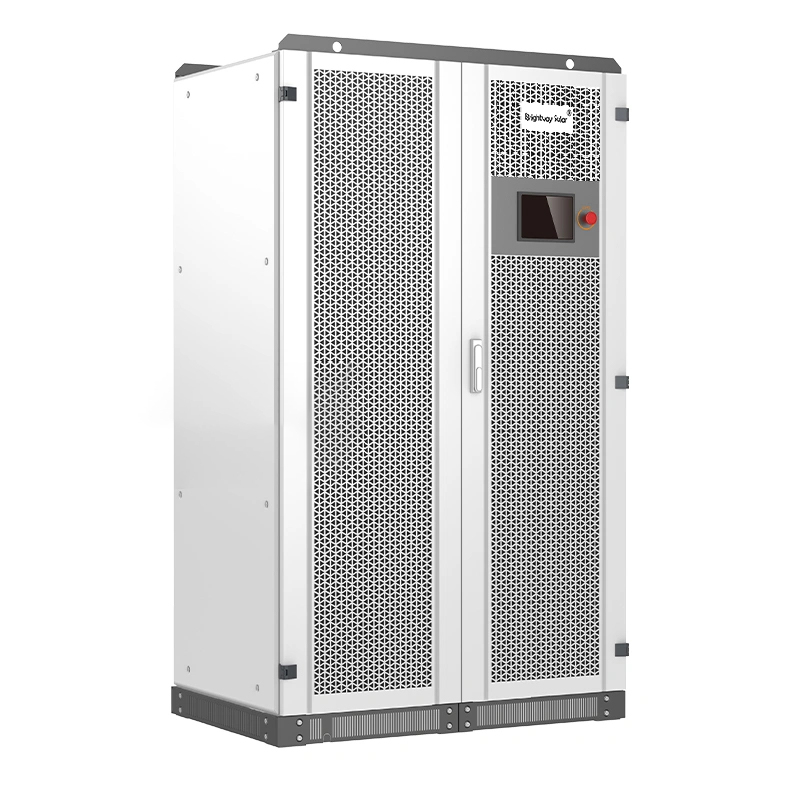

BWS-150KS-CP
Brightway Solar
The BWS series inverters stand out in commercial and industrial solar power systems, rooftop installations, and backup power solutions. Boasting a robust design, high efficiency, and configurable options, they are a dependable solution for any power conversion needs. From large-scale commercial projects to industrial backup systems, the BWS series delivers uninterrupted, high-quality power while maximizing energy efficiency and system reliability.
Technical Specifications
| Technical specification | BWS-150KS-CP |
| AC(on-grid) | |
| Max output power(kVA) | 165kVA |
| Rated power(kW) | 150kW |
| Rated voltage(V) | 400V |
| Rated current (A) | 216A |
| Voltage range(V) | 320V-460V |
| Rated frequency (Hz) | 50/60Hz |
| Frequency range(Hz) | 45-55/55-65Hz |
| THDI | <3% |
| Power factor | 1lagging~1leading |
| AC connection | 3W+N+PE |
| Transformer ratio | 270/400 |
| AC(Off Grid) | |
| Max output power(kVA) | 165kVA |
| Rated power(kW) | 150kW |
| Rated voltage(V) | 400V |
| Rated current(A) | 217A |
| THDU | ≤1% linear; or≤5% nonlinear |
| Rated frequency(Hz) | 50/60Hz |
| Overload capacity | 110% long-term |
| Photovoltaic input | |
| Max.PV input voltage(V) | 1000VDC |
| Max.PV power(kW) | 120/180/240KW |
| MPPT voltage range(V) | 200VDC-850VDC |
| MPPT voltage range@full load (V) | 450VDC-850VDC |
| Battery | |
| Battery voltage range(V) | 420VDC-850VDC |
| Max. charging power(kW) | 120/180/240KW |
| General data | |
| Dimension W*D*H(mm) | 1200/800/2050mm |
| Weight(kg) | 1250kg/1280kg/1310kg |
| Operation temperature | .-30℃ to +55℃ |
| Relative humidity | 0 ~95% non-condensing |
| Ingress protection | IP20 |
| Noise emission(dB) | <70dB |
| Altitude | 5,000m(>3,000 Derating) |
| Cooling | Air Cooling |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485/CAN |
| EMS communication | RS485, TCP/IP |
| Certificates | EN62109-1/-2， EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017,Pakistan & India IEC61727, IEC62116,IEC 61683 |
