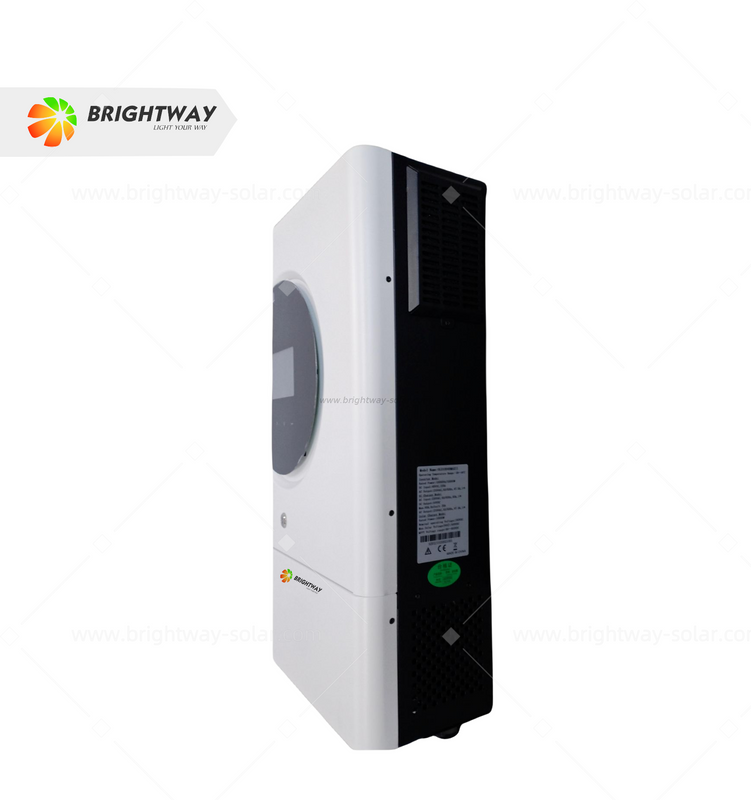

BW8048MAXII
Brightway
This is a multifunctional inverter and charger that combines the functions of inverter, MPPT solar charger, and utility charger to provide power supply for small electrical equipment that is easy to transport.
It employs advanced SPWM technology, generating pure sine waves and converting DC into AC.
It is suitable for AC loads such as household appliances, electric tools, industrial equipment, electronic video and audio equipment.
An LCD display is used to show the machine's running status.
It ensures that the system operates safely and stably
Technical Specifications
| Model | BW8048MAXII | |
| Rated power | 8KVA/8KW | |
| Parallel capability | Max. 6 units | |
| AC Output | Voltage(Battery mode) | single phase 230Vac，±5% |
| Conversion efficiency( peak) | 93% | |
| Switchover time | 10ms (PC); 20ms(Home) | |
| wave | Pure sine wave | |
| Battery Input | Battery voltage | 48VDC |
| Float voltage | 54VDC | |
| Overvoltage protection | 66VDC | |
| Solar Charger | Max. input power | 8KW(4KW*2) |
| MPPT voltage range | 90~450VDC | |
| Max. input voltage | 500VDC | |
| Max. input/charge current | 18A*2/150A | |
| AC Charger | AC input voltage | 230VAC |
| Voltage range | 90~280VAC(Home )/170~280VAC(PC) | |
| Frequency range | 50 Hz/60 Hz (Adaptive) | |
| Max. charge current | 120A | |
| General Data | Weight | 19 |
| Communication interface | RS485/CAN/Dry contact | |
| Appearance | With LCD screen | |
| Operating Environment | Operating temperature | -20°C~+55°C |
| Storage temperature | -30°C~+70°C | |
| Humidity | 5%~95%Relative humidity (non condensing) | |
| Protection level | IP20 | |
