BWGPM600W(132)
Brightway Solar

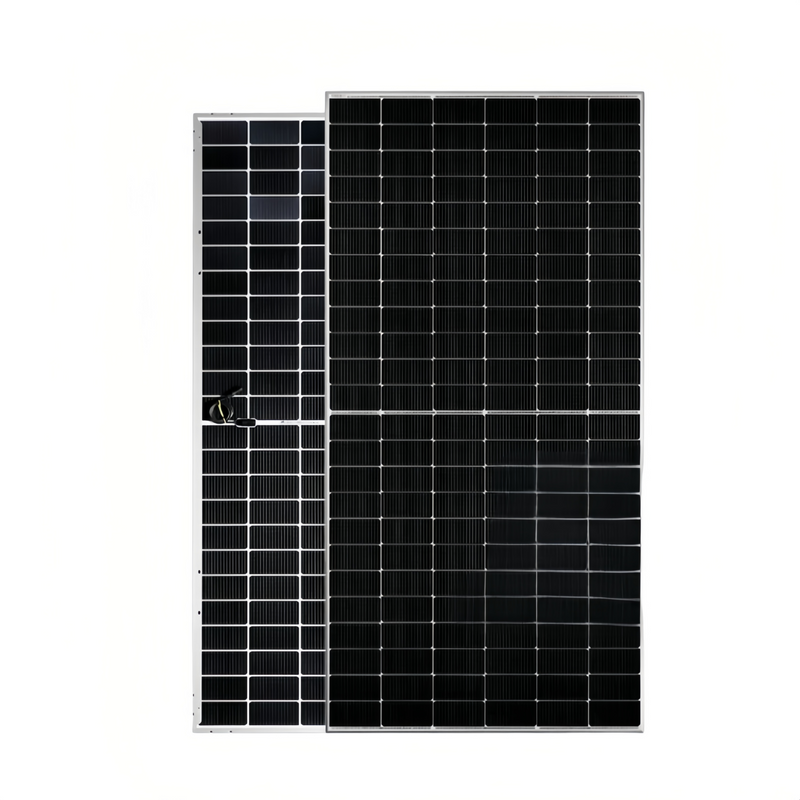

Our advanced solar module features SMBB Technology for improved light and current handling, enhancing power and reliability. The HOT 2.0 Technology in the N-type module cuts LID/LETID, ensuring long-term stability. With optimized production and material control, it has excellent PID Resistance. The Duplex power generation can boost power by up to 25% from backside light. Ideal for various users, it's a smart choice for efficient, reliable solar energy.
| Module Type | BWGPM600W(132) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 600 | 447 |
| Maximum Power Voltage (Vmp) | 40.2 | 37.2 |
| Maximum Power Current (lmp) | 14.93 | 12.01 |
| Open-circuit Voltage (Voc) | 48.4 | 44.79 |
| Short-circuit Current (lsc) | 15.8 | 12.72 |
| Module Efficiency STC (%) | 22.19% | |
| Operational Temperature(℃） | -40~+85°C | |
| MaximumSystemVoltage | 1500VDC | |
| Max Series Fuse Rating | 30A | |
| Power tolerance | 0~+3% | |
| Wind/Snow Load | 2400Pa/5400Pa | |
| Temperature coefficients of Voc | -0.230%/℃ | |
| Temperature coefficients of Isc | +0.045%/℃ | |
| Temperature Coefcient of Pmax | -0.280%/℃ | |
