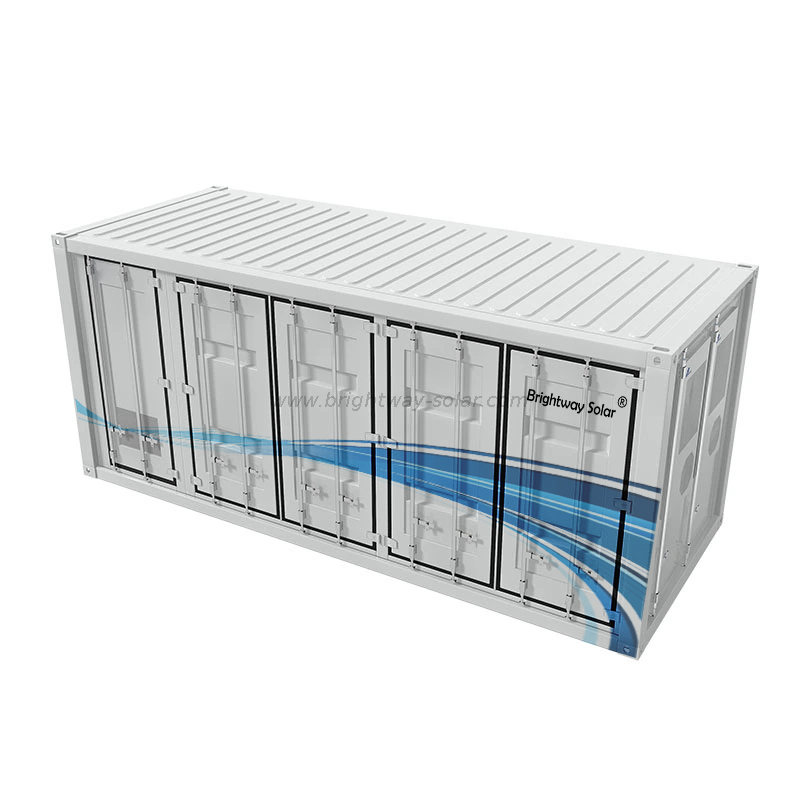

Brightway Solar Electricity Store 500KWH Container Energy Storage System

  • BWS-ESS250KT

  • Brightway Solar


Function Characteristics

On the DC side, the system incorporates BYD's automotive-grade modular lithium iron phosphate battery energy units. Lithium iron phosphate batteries are known for their high safety, long lifespan, and environmental friendliness. These batteries are modular, meaning they can be easily scaled up or down based on the system's energy storage requirements. Additionally, BYD's original BMS (Battery Management System) protection ensures optimal battery performance and safety by monitoring crucial parameters like voltage, temperature, and current. This BMS also includes safety features like overcharge and over-discharge protection, ensuring the batteries operate within their safe limits.

Technical Specifications

Battery capacity (MWh) 250KWH/500KWH
Battery Module BYD 25.6V190AH/280AH/300AH optional
Battery Type Lithium-iron phosphate (LiFePO4) battery
BMS communication interface RS485/CAN
Battery Voltage range (V) 420V-850V
Max. Current (A) 673A
Max output power(kVA) 275KVA
Rate output power(kW) 250KW
Rated voltage(V) 400V
Voltage range(V) 320V-460V
Rated current(A) 361A
Max. output current(A) 397A
Rated frequency (Hz) 50/60Hz
Frequency range (Hz) 45-55/55-65Hz
THDI <3%
Power factor 1lagging-1leading(Settable)
AC connection 3W+N+PE
AC(off grid)
Rated voltage(V) 400V
THDU <1% Linear <5% Nonlinear
Rated frequency(Hz) 50/60Hz
Overload capacity 110% long-term
General data
Max.efficiency 97.30%
Ingress protection IP54
Fire extinguishing system support
Operating temperature -30~+55℃
PCS cooling way Temperature control intelligent air cooling
Battery cooling way Air conditioning cooling
Relative humidity 0 ~95% non-condensing
Altitude 4500m(>3000m Derating)
Dimension D*W*H (mm) 6058*2438*2896mm
Weight(kg) Customized
Transformer ratio 270/400
On/ Off grid switching Automatic
Display and communication
Display LCD touch-screen
BMS communication RS485/CAN
EMS communication RS485,TCP/IP
