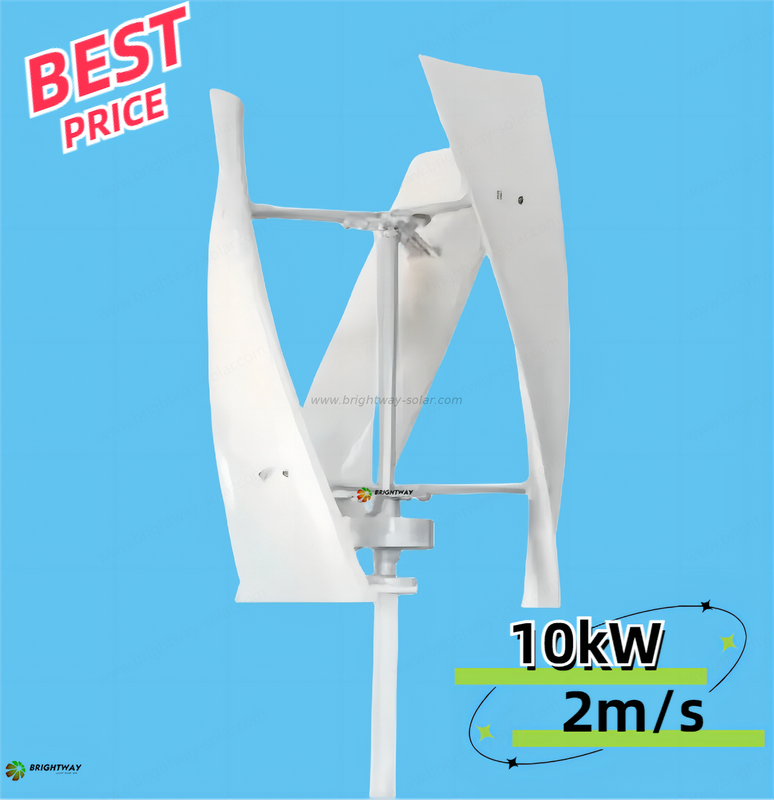

BWSH-XQ10kW
Brightway
Advantages of wind energy
Curved blade design,utilizes wind resource effectively and obtains a higher power generation.
Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level innatural environment.
Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small windpressure even in strong wind.
Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiencyimproved.
Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes windresource effectively and obtains a higher power generation.
Technical specifications and parameters
| Model | BWSH-XQ10K |
| Rated power | 10kW |
| Nominal voltage | 220v/380vac /customized |
| Blade quantity | 3piece |
| Diameter of wind wheel | 3m |
| Impeller height | 4m |
| Electronic unloading | 15kW Brake resistance box |
| Rated speed | 150RPM |
| Package size (mm) | 4550*740*540mm；350KG 1030*1030*425mm； 85KG |
| Start-up wind speed | 2.3m/s |
| Rated wind speed | 10m/s |
| Extreme wind | 45m/s |
| Wind turbine type | Vertical axis wind turbine |
| braking system | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic brake | Active brake, electric brake |
| Controller unit | PLC |
| Interface | HMI |
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation class | H |
| Blade material | Fiberglass |
| Design level | IEC Class Ⅲ |
| Tower type | Independent pole |
| authentication | CE；IOS |
| Noise | 35FB |
| Noise level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | ≤2000m |
| Degree of protection | IP54 |
| Design life | 20 years |
