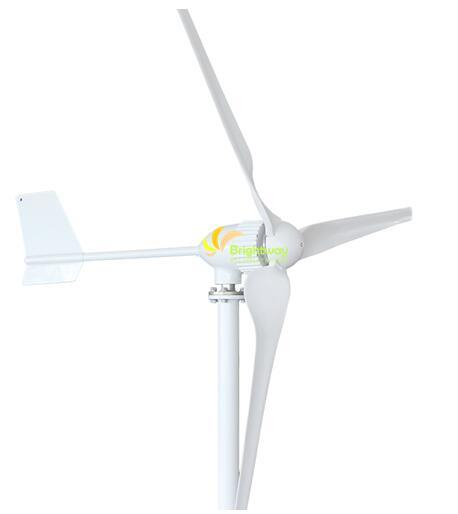

800W 1000W Small Wind Turbine Generator

  • BWW-M05

  • 8503003000

  • Shanghai, China

  • 10000set/Year

  • L/C, T/T, Western Union, Money Gram

Specifications & Configurations

800W 1000W Small Wind Turbine Generator

1. Low starting wind speed, small volume, beautiful appearance and low running vibration;
2. Humanized flange installation design is used to facilitate installation and maintenance;
3. The blades of the wind turbine are made of nylon fiber with optimized aerodynamic shape design and mechanism design. The low starting wind speed and high utilization coefficient of wind energy increase annual power generation.
4. The generator adopts patented permanent magnet rotor alternator with special rotor design to effectively reduce the resistance torque of the generator, which is only 1/3 of that of the ordinary motor. At the same time, it makes the wind wheel and generator have better matching characteristics and the unit operation reliability.
5. Adopt the maximum power tracking intelligent microprocessor control to effectively regulate the current and voltage.
Model BWW-800M5 BWW-1000M5
Rated power 800W 1000W
Max.power 850W 1100W
Rated voltage 24/48V 48V
Start wind speed 2.0m/s 2.0m/s
Rated wind speed 11.5m/s 12m/s
Safe wind speed 45m/s 45m/s
Host weight 17.5kg 19kg
Rotor diameter 2.2m 2.4m
Leaf number 3pcs
Leaf blade material Nylon fiber
Generator type Three-phase ac permanent magnet synchronous generator
Magnetic steel material ndfeb
Generator enclosure materials Die casting aluminum
Control system Electromagnetic/windwheel is off side
Speed control method Adjust the windward Angle automatically
Working temperature -40ºC ~ 80ºC
Lubricating method Add grease

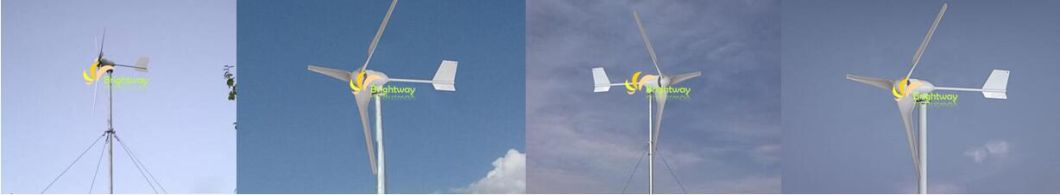

Project Show

800W 1000W Small Wind Turbine Generator

Company profile
800W 1000W Small Wind Turbine Generator
Payment & Delivery
Payment terms T/T
EXW 30% In advance, 70% before delivery
CFR/C&F 30% In advance, 70% against copy of B/L
L/C Total amount above USD70,000, we accept L/C at sight
West Union Total amount less than USD5,000
Delivery time 15-20 working days after receiving down payment for one container
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied within 24 hours.
