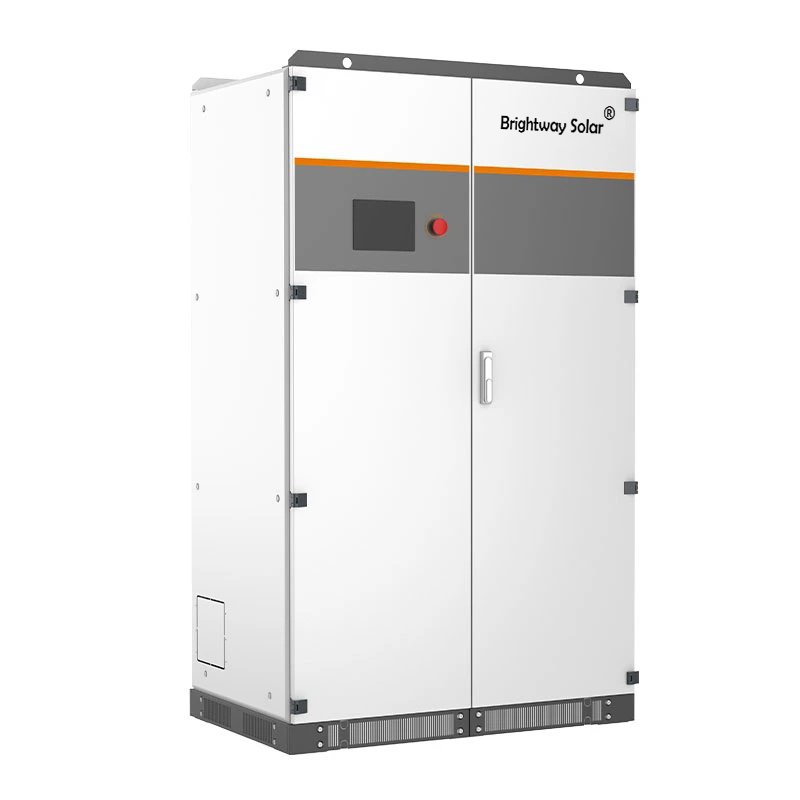

BWS-250KT-CP
Brightway Solar
The BWS-250KT-CP is a remarkable inverter. It features a 420V-850V DC battery voltage range and a maximum current of 673A. The AC on-grid max output power reaches 275kVA with a rate output power of 250KW. With an ingress protection and low noise emission, it operates well in different temperatures and humidity. Its dimensions are 1200×800×2050mm and weighs 1582kg, making it a reliable choice for industrial and commercial microgrid systems.
Technical Specifications
| Model | BWS-250KT-CP |
| DC(battery) | |
| Voltage range (V) | 420V-850V |
| Max. Current (A) | 673A |
| AC(on-grid) | |
| Max output power(kVA) | 275kVA |
| Rate output power(kW) | 250KW |
| Rated voltage(V) | 400V |
| Voltage range(V) | 320V-460V |
| Rated current(A) | 361A |
| Max. output current(A) | 397A |
| Rated frequency (Hz) | 50/60Hz |
| Frequency range (Hz） | 45-55/55-65Hz |
| THDI | <3% |
| Power factor | 1lagging-1leading（Settable） |
| AC connection | 3W+N+PE |
| AC(off grid) | |
| Rated voltage(V) | 400V |
| THDU | ＜1% Linear ＜5% Nonlinear |
| Rated frequency(Hz) | 50/60Hz |
| Overload capacity | 110% long-term |
| General data | |
| Max.efficiency | 97.30% |
| Ingress protection | IP21 |
| Noise emission(dB) | <70dB |
| Operating temperature | －30～+55℃ |
| Cooling | Forced air |
| Relative humidity | 0 ~95% non-condensing |
| Altitude | 5,000m(>3,000 Derating) |
| Dimension W*D*H (mm) | 1200×800×2050mm |
| Weight(kg) | 1582kg |
| Transformer ratio | 270/400 |
| Self-consumption (W) | <10W |
| On/ Off grid switching | Automatic |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485/CAN |
| EMS communication | RS485，TCP/IP |
| Certificates | IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC |
