BWSESS500KS
Brightway Solar

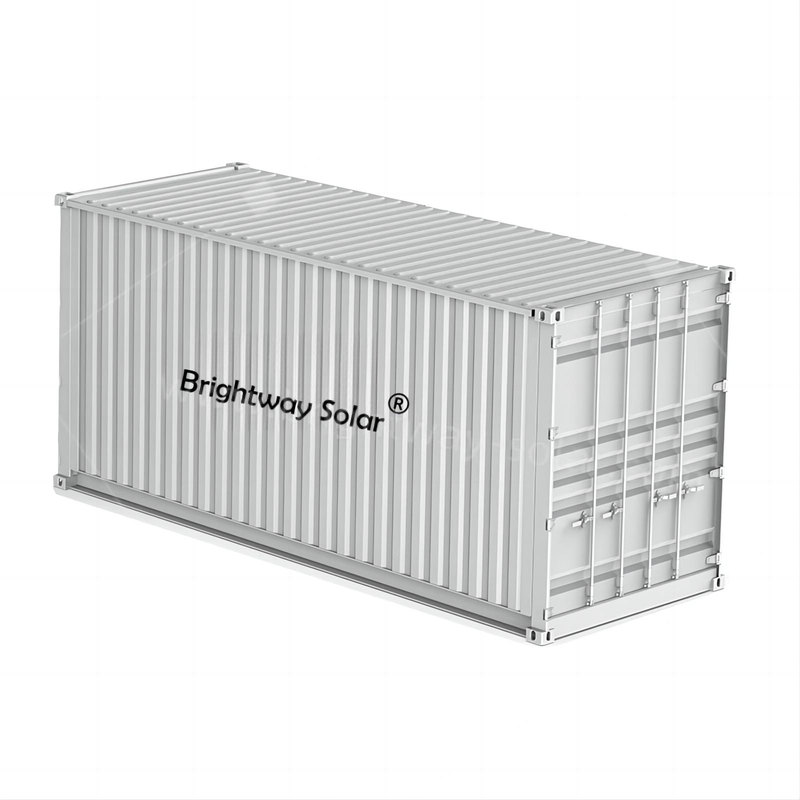

The 250KW/500KW and 250KWH/500kWh-1.2MWH outdoor 20-foot containerized Energy Storage System (ESS) is designed for extensive application in large-scale commercial and industrial energy storage projects. At its core, the DC side incorporates BYD's vehicle-grade modular lithium iron phosphate battery energy units, coupled with BYD's original Battery Management System (BMS) for robust protection. On the AC side, it leverages Brightway Solar's series of hybrid solar inverters to ensure efficient energy conversion.
Guided by the advanced Energy Management System (EMS) operation strategy, this ESS seamlessly interfaces with the grid, promoting grid stability while providing crucial power backup for customers during periods of power scarcity. The integrated EMS also offers flexibility through multiple working modes, including self-consumption, peak load shifting, Time-of-Use (TOU) optimization, and battery priority, allowing users to tailor the system's performance to their specific needs.
Technical Specifications
| Model | BWSESS500KS | |
| DC(battery) | ||
| Battery capacity (MWh) | 500KWH/700KWH/1MWH-1.2MWH | |
| Battery Module | BYD 25.6V190AH/280AH/300AH optional | |
| Battery Type | Lithium-iron phosphate (LiFePO4) battery | |
| BMS communication interface | RS485/CAN | |
| Battery Voltage range (V) | 500V-850V | |
| Max. Current (A) | 1128A | |
| DC(PV) | ||
| Max.PV input voltage(V) | 1000VDC | |
| Max.PV power(KW) | 600/660/720KW | |
| MPPT voltage range(V) | 200VDC-850VDC | |
| MPPT voltage range@full load (V) | 450VDC-850VDC | |
| AC(on-grid) | ||
| Max output power(kVA) | 500KVA | |
| Rate output power(kW) | 500KW | |
| Rated voltage(V) | 400V | |
| Voltage range(V) | 320V-460V | |
| Rated current(A) | 722A | |
| Max. output current(A) | 794A | |
| Rated frequency (Hz) | 50/60Hz | |
| Frequency range (Hz锛?/span> | 45-55/55-65Hz | |
| THDI | <3% | |
| Power factor | 1lagging-1leading（Settable） | |
| AC connection | 3W+N+PE | |
| AC(off grid) | ||
| Rated voltage(V) | 400V | |
| THDU | ＜1% Linear ＜5% Nonlinear | |
| Rated frequency(Hz) | 50/60Hz | |
| Overload capacity | 110% long-term | |
| General data | ||
| Max.efficiency | 97.50% | |
| Ingress protection | IP54 | |
| Fire extinguishing system | support | |
| Operating temperature | －30～+55℃ | |
| PCS cooling way | Temperature control intelligent air cooling | |
| Battery cooling way | Air conditioning cooling | |
| Relative humidity | 0 ~95% non-condensing | |
| Altitude | 4500m(>3000m Derating) | |
| Dimension D*W*H (mm) | 6058*2438*2896mm | |
| Weight(kg) | Customized | |
| Transformer ratio | 315/400 | |
| On/ Off grid switching | Automatic | |
| Display and communication | ||
| Display | LCD touch-screen | |
| BMS communication | RS485/CAN | |
| EMS communication | RS485，TCP/IP | |
