BWSH-XQ2000
Brightway
Advantages of wind energy

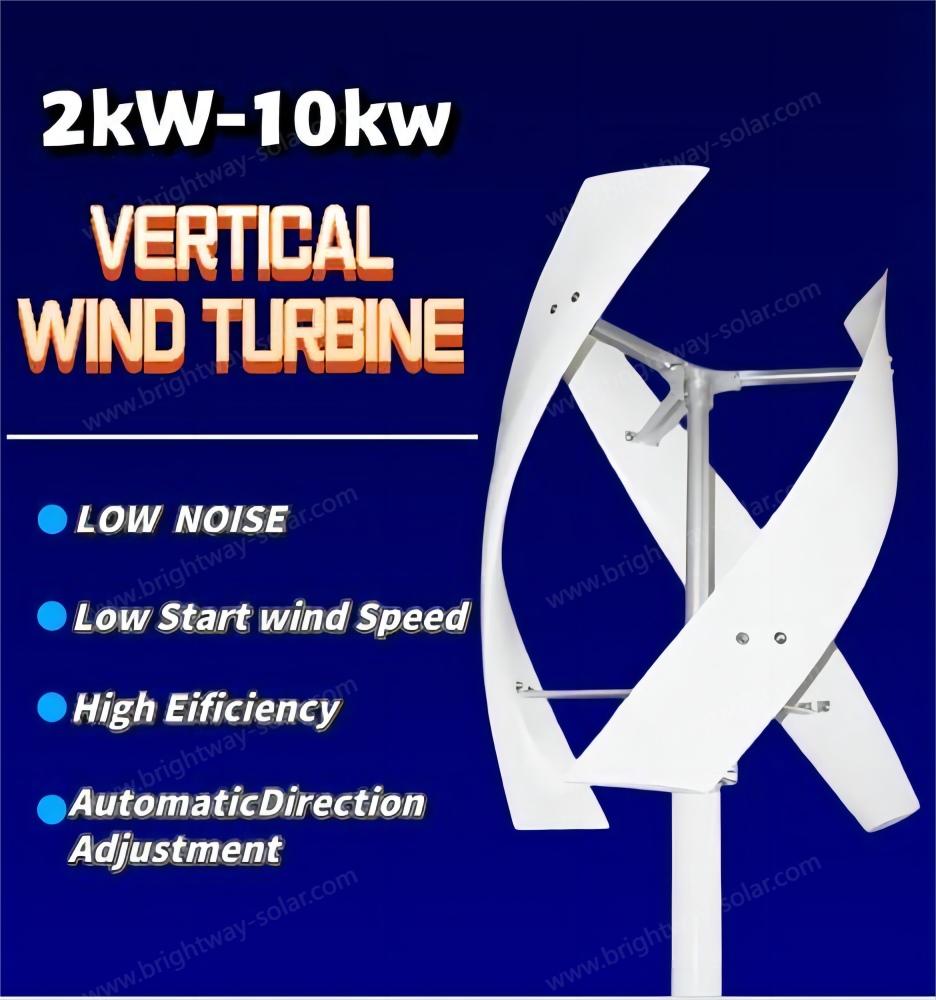

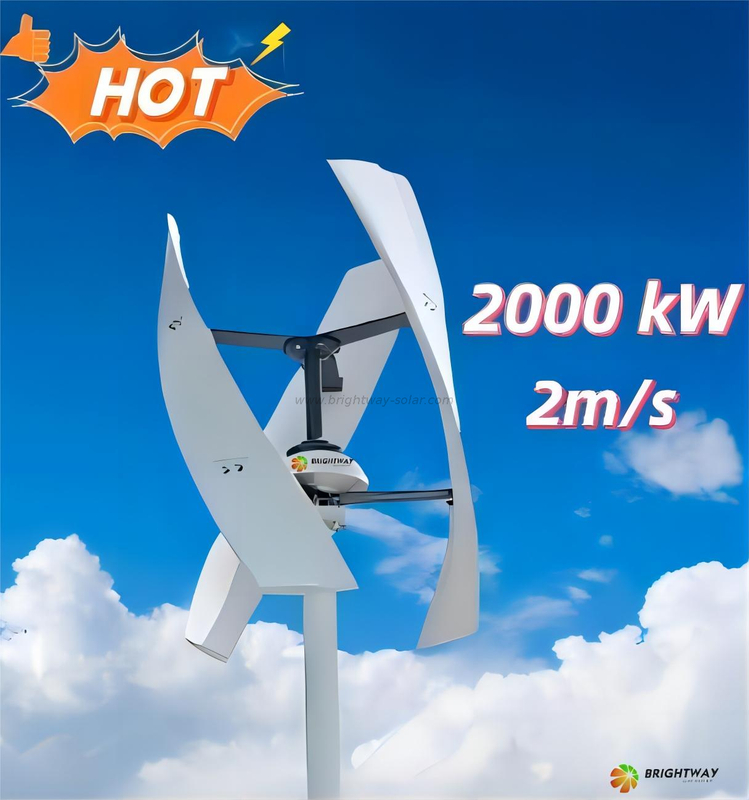

A vertical axis wind turbine has a stator shaft, an electrical generator, a rotating shaft and multiple blades. The electrical generator is rotatably mounted around the stator shaft. The rotating shaft is mounted on and protrudes from the electrical generator. The multiple blades are disposed around the electrical generator and orientated to balance each other. Each blade is connected to the rotating shaft by at least one strut and has a luff edge tapering to a lee edge. The at least one strut is formed on and protrudes from the blade is connected to the rotating shaft. The blades are rotated by the wind independent of wind direction and rotate the electrical generator to convert wind power into electric power.
Technical specifications and parameters
| Model | BWSH-XQ2000 |
| Rated power | 2kW |
| Nominal voltage | 48V96v/120vac /customized |
| Blade quantity | 3piece |
| Diameter of wind wheel | 1.8m |
| Impeller height | 2.8 m |
| Electronic unloading | 5kW Brake resistance box |
| Rated speed | 220 RPM |
| Package size (mm) | 500*465*435mm；95 kg 3220*530*410mm；130kg |
| Start-up wind speed | 2.3m/s |
| Rated wind speed | 10m/s |
| Extreme wind | 45m/s |
| Wind turbine type | Vertical axis wind turbine |
| braking system | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic brake | Active brake, electric brake |
| Controller unit | PLC |
| Interface | HMI |
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation class | H |
| Blade material | Fiberglass |
| Design level | IEC Class Ⅲ |
| Tower type | Independent pole |
| authentication | CE；IOS |
| Noise | 35FB |
| Noise level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | ≤2000m |
| Degree of protection | IP54 |
| Design life | 20 Years |
