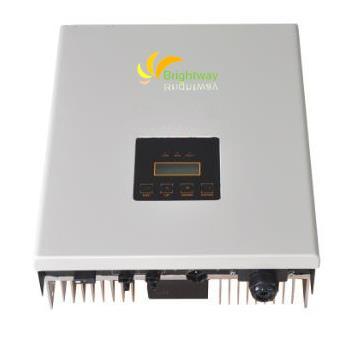

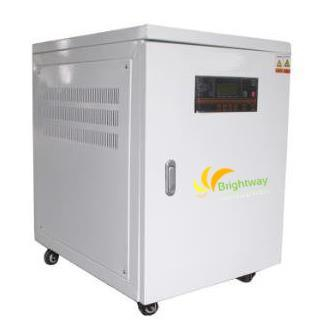

Description:
PV grid-connected power system includes PV modules, grid-connected inverter, meter and power switch board.
The PV modules convert the solar energy to the DC power, then the grid-connected inverter the DC power to the sine wave AC power which has the same frequency and phase with the grid voltage.
The AC power feed in the grid partly and the other powers supply the local loads.
Features:
1. Improve the system efficiency higher
2. High conversion efficiency
3. Advanced technology for maximum power point tracking(MPPT)(>97%)MPPT efficiency
4. Wide input voltage range
5. High reliability due to compltte protection function
6. Powerful communication interfaces
7. Easy operation and installation
8. Easy-to-set multilingual LCD display
9. Adjustable protection / operation parameters
Technical indicators:
Model | BWI-GT18K | BWI-GT20K | |
DC Input | MPPT Voltage Range | DC200~820V | |
Max. DC Voltage | 850VDC | ||
Rated DC Voltage | 620V | ||
Start Voltage | 400V | ||
Recommended PV Array Open Circuit Voltage | 620V | ||
Control System | MPPT | ||
Number of MPPT Tracker | 1/2 | ||
AC Output | Rated Output Power | 18KW | 20KW |
Rate Grid Voltage | AC380V(Grid Voltage) | ||
Grid Voltage range | AC 342~418V (3 phase) | ||
Normal Grid Frequency | 50/60Hz(Grid Frequency) | ||
Phases | 3 phase 4 wire | ||
Power Factor | > 0.95 | ||
Current THD | At rated power and in the sine wave<5% | ||
Control System | PWM | ||
Anti-islanding | ≤0.5 sec | ||
Output Overload | 100% | ||
Max. Efficiency | 98% | ||
Euro Efficiency | 96.4% | ||
Structure | Protection Class | IP65 | |
Cooling system | Natural cooling | ||
Noise | < 50dB | ||
Data Interfaces | External RS232C/RS485 | ||
Web Module(Option) | RS232C to TCP/IP | ||
Display | LCD | ||
Dimensions(W*H*D) | 450*640*700MM | 450*640*700MM | |
Weight | 75kg | 80kg | |
Protection | Inverter | Input overvoltage, output short circuit, overheat, output DC component. | |
Grid | Anti-islanding, over/under voltage of grid, over/under frequency of grid. | ||
Environment | Environment | No corrosion gas, flammable gas, oil mist, dust etc. | |
Operation temperature | -10°C~40°C(50°C) | ||
Stored temperature | -20°C~65°C | ||
Relative humidity | 0~100% (Do not wet with dew) | ||
