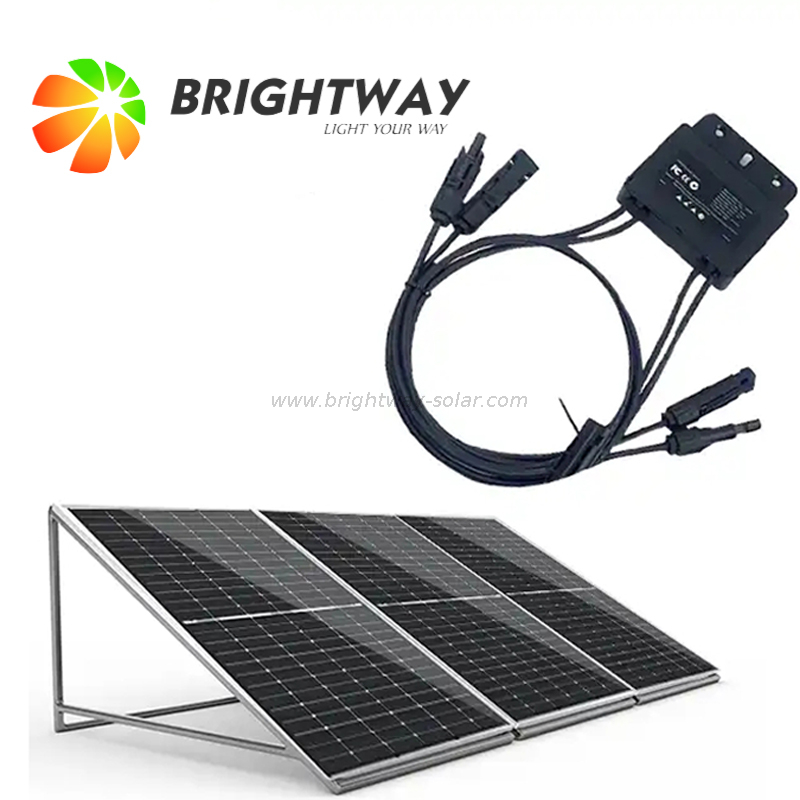

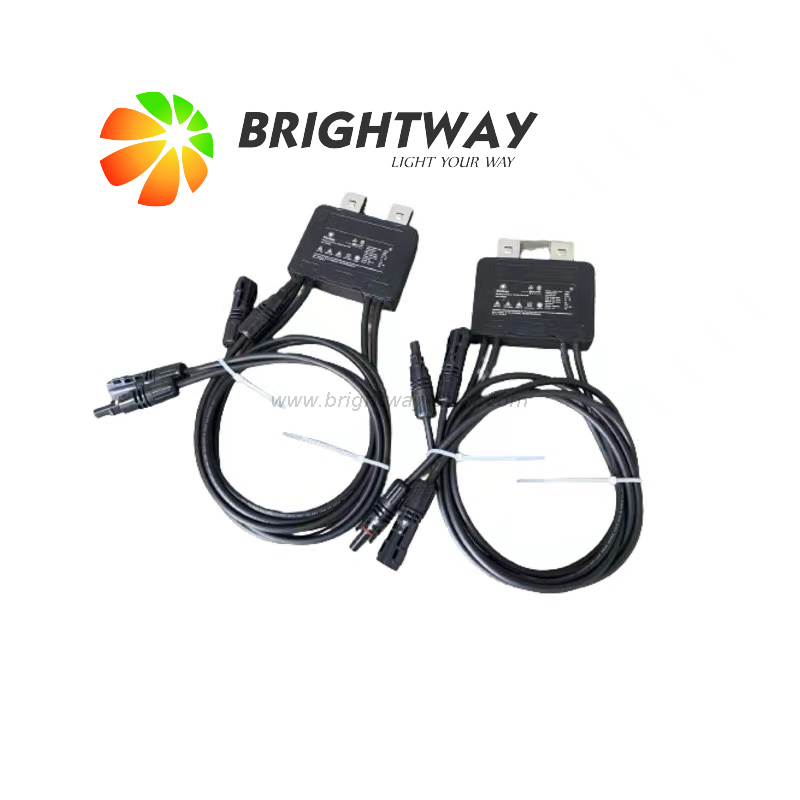

ATHENA600
Brightway
Product Description
Solar PV optimizers can enhance the efficiency of photovoltaic arrays, minimize energy losses, and achieve stable operation of the power system through various technical means and management strategies. This may include adjusting the angle of the photovoltaic panels to maximize solar energy absorption, managing and controlling the operating status of the photovoltaic panels, as well as using power electronics technology to improve conversion efficiency and stability. PV optimizers are typically used in conjunction with other devices such as inverters and battery energy storage systems to achieve more efficient and reliable solar power generation systems.
ABOUT POWER OPTIMIZER
Specifications
| Model | ATHENA600 |
| DC input | |
| Max input power | 600W |
| Max voltage | 60V |
| MPPT voltage range | 7~60V |
| Max continuous input current | 16A |
| Max input short-circuit current | 18A |
| Night self-consumption | 0W |
| DC output | |
| Rated output voltage | 42V |
| Max continuous output current | 16A |
| Max output power | 600W |
| Max system voltage | 1500V |
| 72 -cell module in serial@1500V | 36 pcs |
| 72 -cell module in serial@1100V | 26 pcs |
| 72-cell module in serial@1000V | 24 pcs |
| Efficiency | |
| Peak efficiency | 99.5% |
| Power loss @5A | 0.9W |
| Power loss @8A | 1.4W |
| Power loss @12A | 2.9W |
| Power loss @15A | 4.5W |
| General data | |
| Dimensions(LxWxH) | 103x105.3x21.3mm |
| Weight | 0.65Kg |
| input/output cable length | 500/1000mm |
| input/output cable size | 4mm2(12AWG)/4mm2(12AWG) |
| Terminals | MC4(compatible) |
| Protection Rating | IP67/NEMA6 |
| Relative humidity | 0~100%RH |
| Operating temperature range | -40~+65° C |
| Altitude | ≤4000m |
| Cooling | Natural cooling |
