Brightway Vertical Wind Turbine Generator 5kW 10kW 20kW

1.Size:1610*450*760MM
2.Weight:320-1050Kg
3.Sales Models:wholesale/retail/affiliate/ agent/distribution/direct sales
Availability:
Quantity:
  • BWSH-H5000

  • Brightway

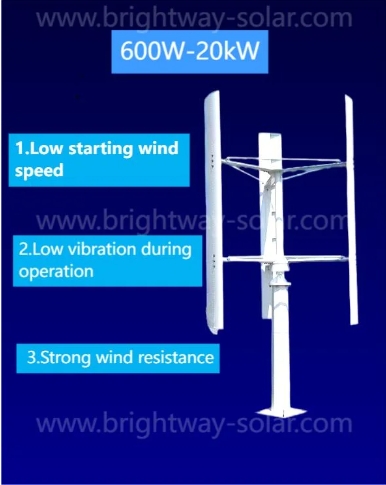

微信截图_20231108095037

Advantages of wind energy

  • Clean energy

  》Wind energy is one of the cleanest energy sources. Generating energy using wind turbines does not emit any      greenhouse gases.

  • Renewable

  》Wind energy is a renewable energy resource, meaning that the source of energy is not depleted when it is         used.  So, as we use wind energy we don’t decrease the amount of wind available.

  • Low-cost energy

  》The cost of wind is zero! Once turbines are installed, their operational costs are relatively low, and they require    minimal maintenance.




Technical specifications and parameters

Model BWSH-H5000 BWSH-H10K BWSH-H20K
Rated power 5kW 10kW 20kW
Blade quantity 3/piece 3/piece 5/piece
Impeller height 4 m 5m 6m
Diameter of wind wheel 3m 3.5m 4m
Net Weight 320KG 650KG 1050KG
Package Weight 350KG 750KG 1180KG
Package size (mm)
  • Wooden case motor box:1610*450*760;265kg

  • Wooden box blade box:4050*260*530;85kg

  • Wooden case motor box:750*750*800;550kg

  • Wooden box blade box:5260*630*680;100kg

  • Hair dryer in a wooden box:1100*1100*500;100kg

  • Wooden case motor box:750*750*800;850kg

  • Wooden box blade box:6060*480*400;180kg

  • Hair dryer in a wooden box:1100*1100*500;150kg

Packing wooden box
Nominal voltage 96v/120v/380v/440vac/customized
Form Vertical axis wind turbine
Start-up wind speed 2.3m/s
Rated wind speed 11m/s
Extreme wind 45m/s
Braking system Electromagnetic brake / mechanical brake (customized)
Hydraulic brake Active brake, electric brake
Controller unit PLC
Interface HMI
Alternator type Three phase Coreless Permanent Magnet Synchronous Generator
Insulation class H
Blade material aluminum alloy
Design level IEC Class Ⅲ
Tower type Independent pole
Authentication CE;IOS
Noise level <35dBA
Temperature ‐20°C~50°C
Altitude 2000m /following
Degree of protection IP54
Design life 20 Years
