BWS-RESS500K-1106M
Brightway Solar

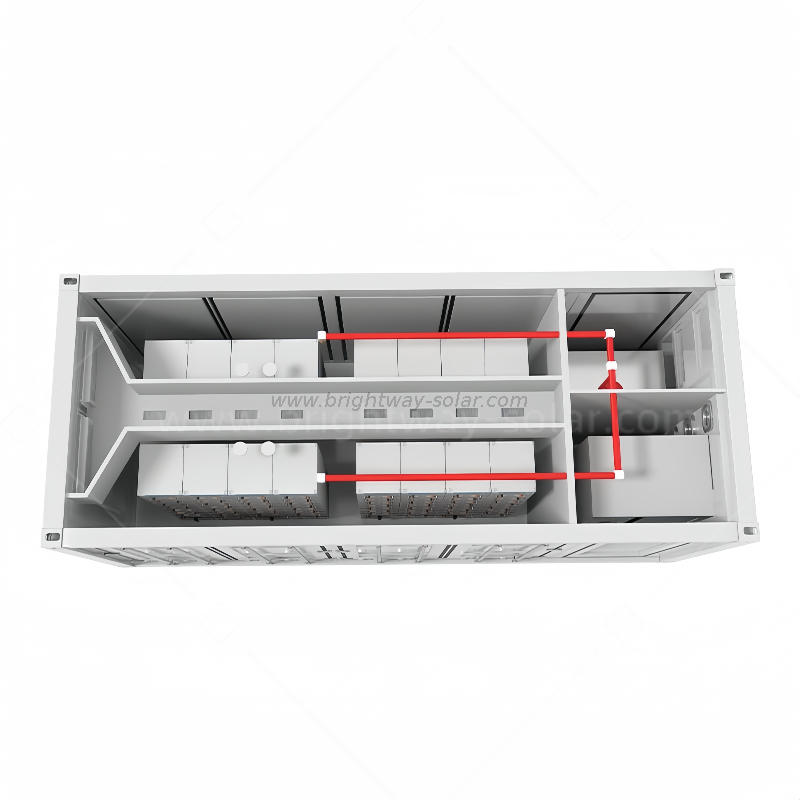

The 500KW/1.106Wh outdoor 40-foot container ESS is designed for large-scale commercial and industrial energy storage projects. On the DC side, the system comprises eight modular lithium battery energy units, each with a capacity of 138kWh. While on the AC side, it utilizes the Brightway Solar series PCS. Through the EMS operation strategy, it interacts with the grid in a grid-friendly manner and provides power support for customers during periods of limited power supply.
Technical Specifications
| Model | BWS-RESS500K-1106M |
| DC data | |
| Battery capacity (MWh) | 1.106MWH |
| Number of battery racks | 8 |
| BMS communication interface | RS485/CAN |
| DC voltage range (V) | 600V~850V |
| AC data | |
| Rated AC power(kW) | 500KW |
| Max. AC power(kW) | 550KW |
| Rated AC current(A) | 722A |
| Max. AC current(A) | 800A |
| DC current component | < 0.5 % |
| THDi | ＜3% (Rated power) |
| Rated grid voltage(V) | 400V |
| Allowable grid voltage range(V) | 320V-460V |
| Rated grid frequency(Hz) | 50/60Hz |
| Allowable grid frequency range | 45-55/55-65Hz |
| Power factor | 1lagging-1leading |
| Isolation method | No isolation |
| General data | |
| Ingress protection | IP54 |
| Fire extinguishing system | support |
| Running time (full power) | 2h |
| Operating temperature | －30～+55℃ |
| Dimension W*D*H (mm) | 12192 ×2438×2896mm |
| Weight (T) | 3.5T |
| BMS communication | RS485, CAN |
| EMS communication | RS485, TCP/IP |
| PCS cooling way | Temperature control intelligent air cooling |
| Battery cooling way | Air conditioning cooling |
| Altitude | 4,500m(>3,000 Derating) |
| Relative humidity | 0 ~95% non-condensing |
