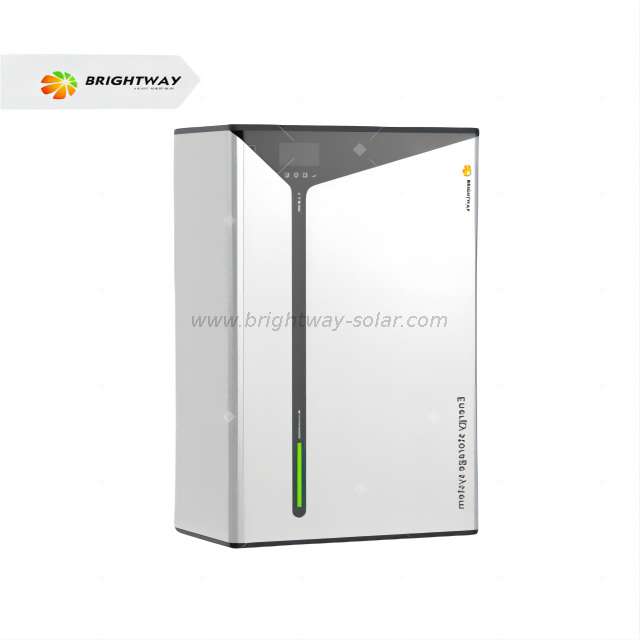

BWESS3048VM-100
Brightway
The ESS series off-grid energy storage system is designed to output pure sine wave and convert DC power into AC power based on a fully digital intelligent solution with advanced SPWM technology. They are suitable for AC loads such as household appliances, power tools, industrial equipment, and audio & visual equipment.
Comprehensive electronic protection functions ensure that the power system is safer and more stable.
Technical Specifications
| Model | BWESS3048VM-100 | |
| Inverter Parameters | ||
| Rated power | 3kw | |
| Battery voltage | 48VDC | |
| Max.input power | ||
| DC Battery side parameters | ||
| Nominal voltage | 51.2V | |
| Nominal capacity | 100Ah | |
| Nominal energy | 5KWh | |
| PV Side parameters | ||
| PV Input voltage | Max：500V（MPPT range：120～450VDC） | |
| PV Charging power | Max：3KW | |
| PV Charging current | Max：20A | |
| AC Side input parameters | ||
| AC Input voltage | 230Vac/50Hz/60Hz | |
| AC Charging current | Max：20A | |
| AC Side output parameters | ||
| AC Rated outputpower | 3kw | |
| AC Peak power | 3.5kw | |
| AC Output voltage | single phase 220VAC/230VAC/240VAC can be set，+5%@50Hz/60Hz | |
| Efciency(peak) | 90% | |
| Wave | Pure sine wave | |
| Working temp | charge O℃~+50℃ | |
| discharge-10℃~ +50℃ | ||
| Working mode | Optional: mains priority/phatovoltaic priority/battery priority | |
| Switchingtime | 10ms(PC)/20ms(Home) | |
| Intelligentdisplay | LED+LCD | |
| Dimension | 500*300*785.3mm | |
