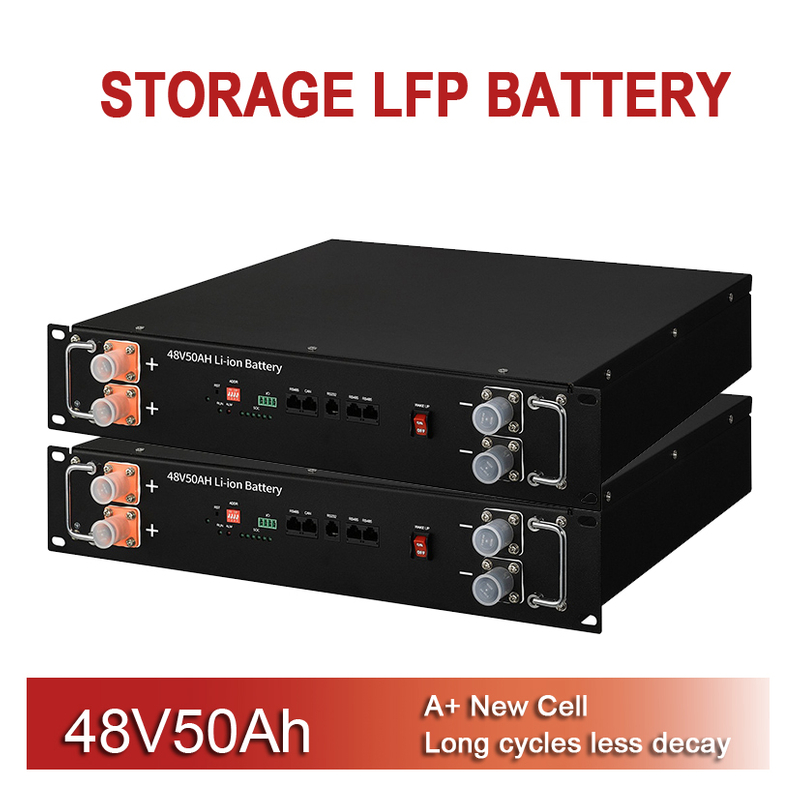

Lithium battery 48V50AH 51.2V 50AH lithium-ion power storage system

Key Features :

●Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery ,helping to minimize replacement cost and reduce total cost of ownership

●Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries

●Higher Power : Delivers twice power of lead acid battery , even high discharge rate, while maintaining high energy capacity

●Wider Temperature Range : -20℃~60℃

●Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impactovercharging or short circuit situation
Availability:
Quantity:
  • BWBL-4850

  • Brightway

  • 8507.60.00 90

Production Description :


Long cycle life

Using high-quality powerful lithium iron phosphate batteries, the cycle life is more than 6000 times
at 80%DOD, lifelong for 10-15 years

High quality prismatic lithium iron phosphate battery
Higher capacity, good storage, higher current, longer life

Low internal resistance and high current
Low internal resistance of the battery, excellent continuous high current discharge performance

Intelligent BMS battery protection
Built-in intelligent BMS (battery management system), effectively avoiding overcharge,
overdischarge, overcurrent, short-circuit, balance and other problems

Communicated with multiple brands inverter same time
Battery BMS supports simultaneous
communication and docking with multiple brands inverter

Good safety performance
Extreme safety test, no fire, no explosion, no leakage


Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies


Battery Size:48V 51.2V 50Ah/100Ah/200Ah

Brand Name:Support OEM

Model Number:LPF48V 50Ah/100Ah/200Ah

Weight:25--48KG

Size:Customized

Certificate:CE/ROHS/MSDS/UN38.3

Storage Temperature:-20℃~60℃


Technical parameters


Items Specifications
Rated Capacity 50Ah
Nominal Voltage 48V
Discharge Cut-off Voltage 43.2V
Internal Resistance ≤65mΩ
Charge Method CC/CV
Max Charge Voltage 57.6V
Standard Charge Current 33A
Max Charge Current 100A
Charging Current Limitation 10A
Standard Discharge Current 33A
Max. Continuous Discharge Current 100A
Operating Temperature Charge 5~45℃
Operating Temperature Discharge -20~55℃
Storage Temperature -10~50℃
Relative Humidity ≤80%
Dimension Width ×Depth ×Height:(440)×(420)×(178)mm
